KVM Switch With Virtual Media 4port USB Vga Ip

Introduction

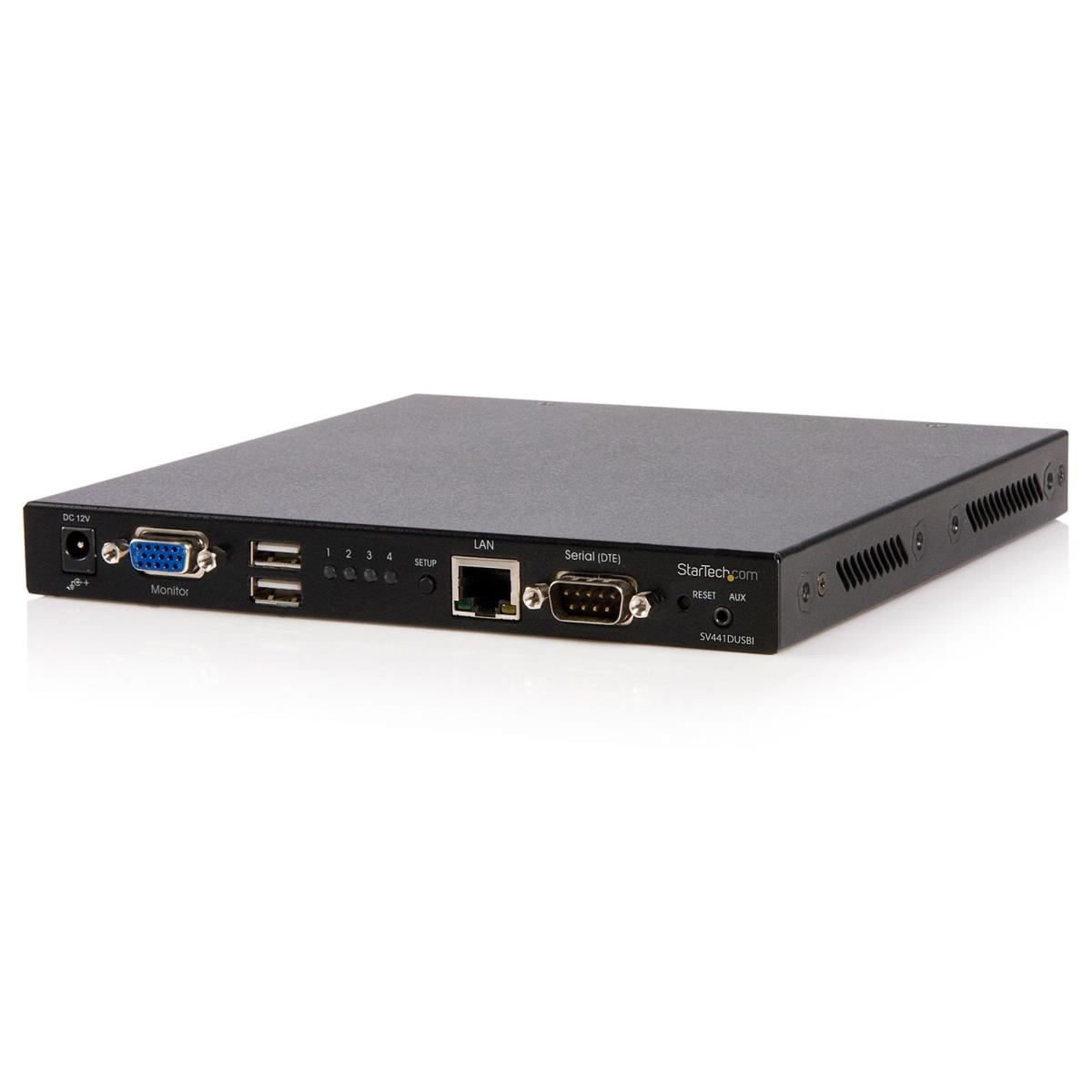

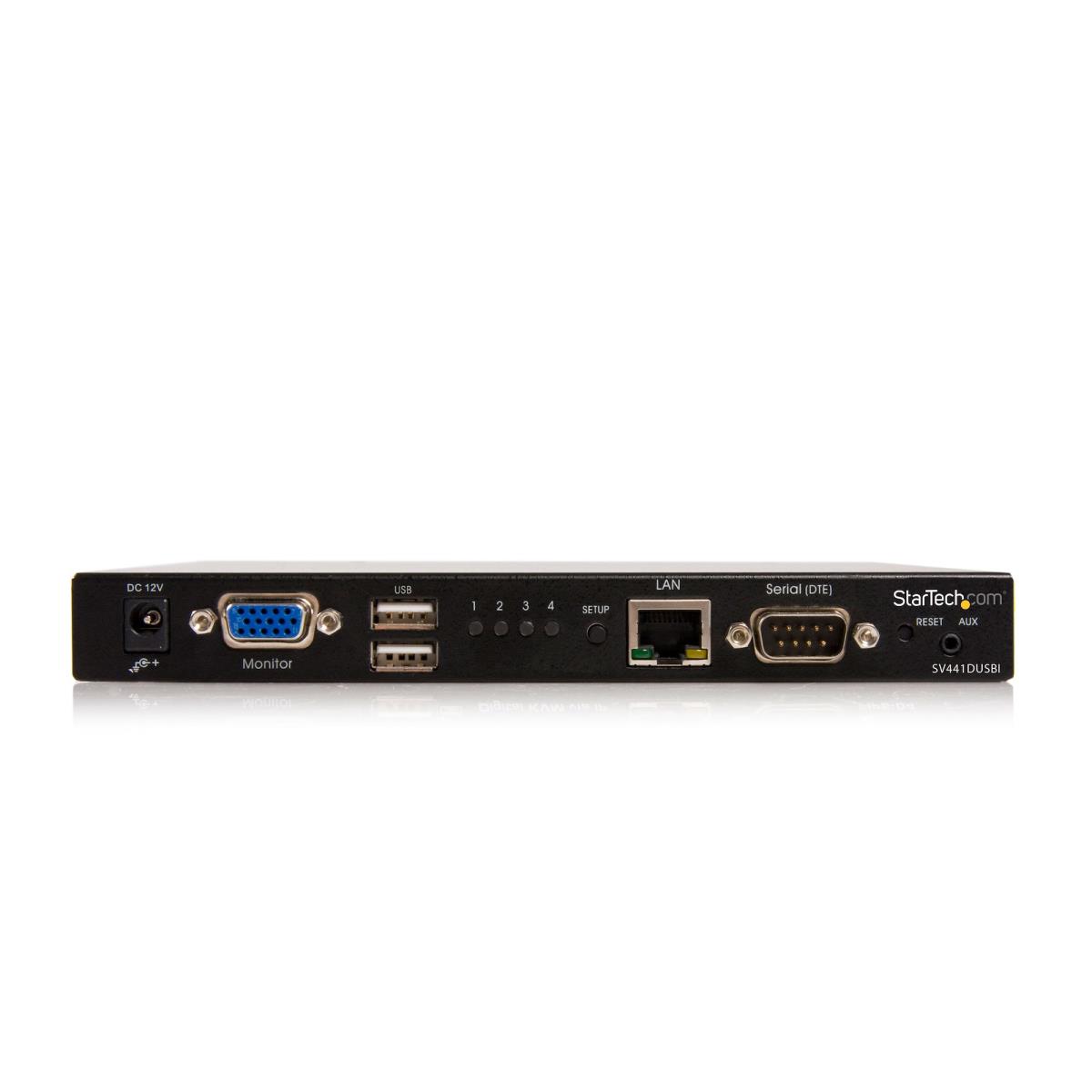

The SV441DUSBI 4 Port USB VGA IP KVM Switch with Virtual Media allows for secure local and remote control of up to 4 computers over a LAN or the Internet. Featuring 2 additional USB ports for peripheral sharing (USB storage, CD ROM, etc.), allowing file transfers and disk emulation for remote application and OS installs.

The IP KVM Switch enables BIOS level control and full boot process interaction, and includes several security features (SSH, SSL, RADIUS and a configurable firewall) to keep your network safe.

This IP KVM can interact with virtually any device that uses an RS-232 serial terminal (routers, switches, PDUs, etc.), using the RPORT Module (sold separately). While the 1U rack-mountable metal chassis makes installation into a rack easy with the 1110EXTRACK.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Full BIOS level remote access meaning you can reboot a connected PC or server, access the BIOS, and have full control over the keyboard and mouse as if you are on site
- User friendly access through the OSD or the integrated web server saves configuration time and frustration
- Supports 16 bit video for a richer quality of picture when accessing the remote server either through the web browser or VNC client

Ports & interfaces

Number of computers controlled

4

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

VGA (D-Sub) ports quantity

5

DC-in jack

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Performance

Maximum resolution

1920 x 1440 pixels

Maximum digital resolution

1600 x 1200 pixels

Maximum analog resolution

1920 x 1440 pixels

Hot-Plug support

Y

Plug and Play

Y

Daisy chain

N

Number of users

1 user(s)

Design

Product colour

Black

LED indicators

Y

Hot keys

Y

Certification

CE, FCC

Display

Built-in display

N

On Screen Display (OSD)

Y

Power

AC input voltage

110-240 V

Input current

1.8 A

Output voltage

12 V

Output current

4 A

Power plug type

Type M

Compatible power plug types

AU,EU,UK,US

Weight & dimensions

Width

187 mm

Depth

200 mm

Height

22 mm

Weight

900 g

Packaging data

Package width

114 mm

Package depth

304 mm

Package height

276 mm

Package weight

4.12 kg

Packaging content

Cables included

KVM

Manual

Y

Other features

Audio support

N

IP control

Y

Technical details

Sustainability certificates

RoHS
