STARTECH.COM
I/o Card  PCI  2-port 16c550 Low Profile Serial

I/o Card PCI 2-port 16c550 Low Profile Serial

Part Number:
PCI2S550_LP
Language:
US
 Without VATWith VAT
Base Price:€34,10€41,26
Total:€34,10€41,26

Introduction

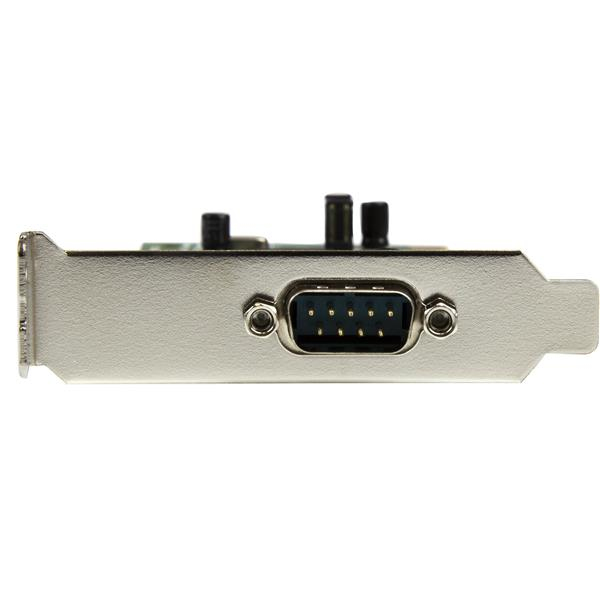

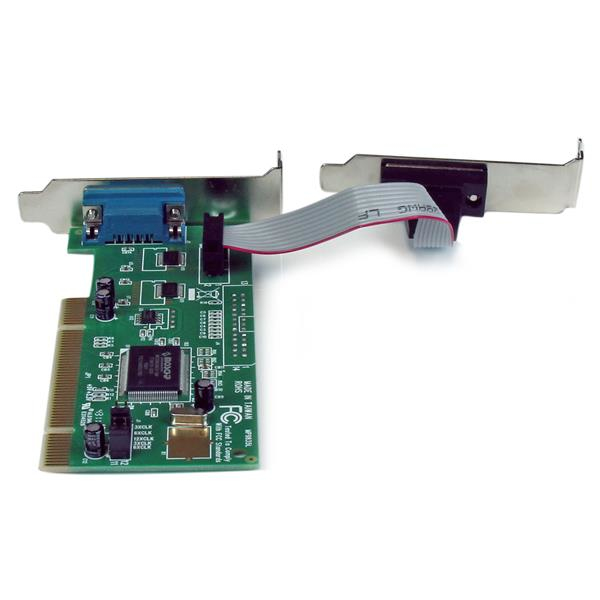

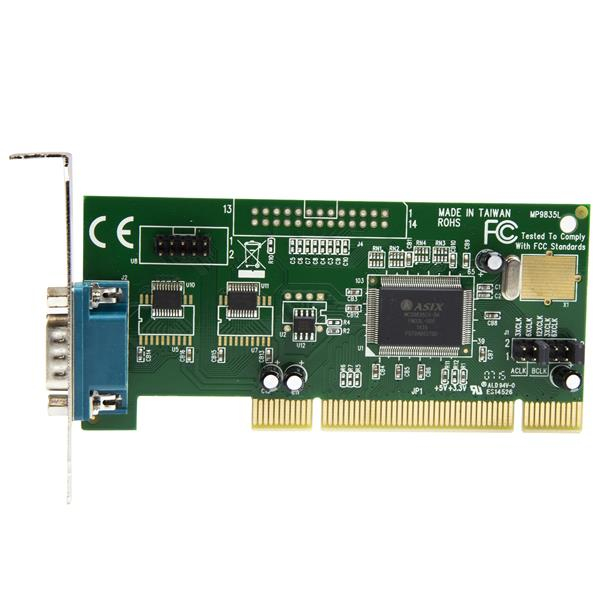

This 2 Port 16550 Serial Card can be installed in a PCI slot to add two serial ports - a cost-effective solution for connecting any new serial device or old legacy serial device, with data transfer rates of up to 115.2 Kbps. The serial card features a low profile bracket, suitable for installation in low profile/small form factor computer cases.

Perfect for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system, the adapter card supports IRQ sharing and operates flawlessly with Windows® 7, Server 2008 R2, Vista, XP, Server 2003, 2000, ME, 98, 95, NT4, 3.1, DOS® and Linux®.

The card can be connected in minutes through simple plug and play installation and is backed by StarTech.com's lifetime warranty and FREE LIFETIME tech support.

The StarTech.com Advantage
- Compatible with any PC running Windows®, DOS® or Linux® for simple integration into your application
- Data transfer rates of up to 115 Kbps for peak serial device performance

Ports & interfaces

Host interface

PCI

Output interface

Serial

Serial ports quantity

2

Serial interface type

RS-232

Design

Internal

Y

Product colour

Green

Mean time between failures (MTBF)

6548788 h

Certification

CE, UL, FCC, TAA, REACH

Features

Chipset

ASIX - MCS9835CV

Baud rate

115.2 Kbit/s

FIFO (First In, First Out)

16 B

Operational conditions

Operating temperature (T-T)

-10 - 80 °C

Storage temperature (T-T)

-20 - 100 °C

Operating relative humidity (H-H)

5 - 85%

Technical details

Sustainability certificates

RoHS

System requirements

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Linux operating systems supported

Y

Server operating systems supported

Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019

Other operating systems supported

Windows Embedded POSReady 2009,Windows XP Embedded

Weight & dimensions

Width

55 mm

Depth

120 mm

Height

20 mm

Weight

45 g

Packaging data

Mounting brackets included

Y

Screws included

Y

Drivers included

Y

Manual

Y

Package width

174 mm

Package depth

144 mm

Package height

30 mm

Package weight

136 g

No options for this product
.
