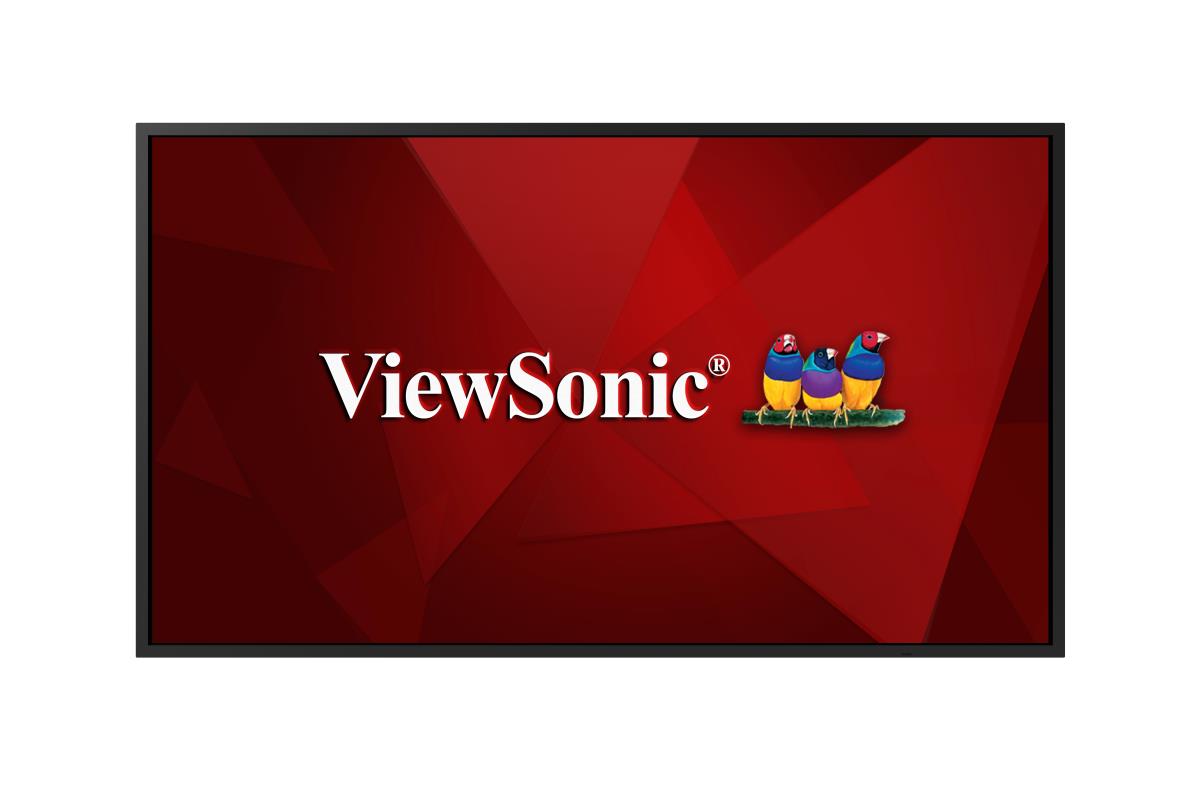

Commercial Display Cde4320 43in LED 3840x2160 350nits 1100:1 6ms 2x Hdmi DVI

Introduction

The ViewSonic® CDE4320 is a 43’’ (42.51” viewable) premium 4K large format presentation display purpose-built to deliver eye-catching imagery for hotels, restaurants, retail, business, and more. With stunning 3840x2160 resolution, 350-nit high brightness, wide viewing angles, and dual 10W speakers, this display provides immersive, high-impact messaging wherever needed. In addition to HDMI and DVI inputs to connect with various high definition devices, this display utilizes an integrated multi-core processor and 16GB of internal memory, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop, and its flicker-free and blue light filter technologies help provide a comfortable viewing environment.

ULTRA HD RESOLUTION
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

POWERFUL ALL-IN-ONE SOC PLATFORM
A quad-core 4K Ultra HD media player enables photo, music and video playback, while 16GB of internal storage provides ample capacity for files and multimedia content. This all-in-one Android 8.0 platform simplifies installation and maintenance by enabling easy deployment, display management, and content pushing without the need of an external media player.

EMBEDDED LAN AND OPTIONAL WIRELESS CONNECTIVITY
An integrated RJ45 connection, as well as optional Wi-Fi capabilities, provide easy network connection options for content streaming.

RELIABLE 24/7 CONTINUOUS OPERATION
Featuring a long lifespan, this professional-grade commercial display is designed for reliable, continuous 24/7 use. This display also includes heat monitoring protection and a screen saver feature for added reliability and durability.

CONTINUOUS DISPLAY MAINTENANCE
Included vController™ software provides a simple and intuitive interface for local display management, while an optional 42Gears SureMDM app allows users to monitor and remotely diagnose irregularities from virtually any location.

AV CONTROL SYSTEM CERTIFIED
The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Crestron, Extron and AMX certified.

INTERNAL SCHEDULER
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

INTEGRATED CONTENT MANAGEMENT SYSTEM
Enjoy a free cloud-based introductory service subscription from ViewSonic's content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are.

RS232 IN/OUT WITH IR PASS-THROUGH
RS232 input and output connectivity provides easy and efficient management of multiple-display configurations from a single laptop or PC. In addition, this display supports IR pass-through functionality for local control of set-top boxes or other connected devices, directly with the display’s remote controller.

DUAL INTEGRATED SPEAKERS
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

Display

LED backlighting type

Direct-LED

Display diagonal

109.2 cm (43")

Display technology

IPS

Display resolution

3840 x 2160 pixels

Display brightness

350 cd/m²

HD type

4K Ultra HD

Touchscreen

N

Native aspect ratio

16:9

Response time

6 ms

Contrast ratio (typical)

1100:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Panel life

40000 h

Supported video modes

480i,480p,720p,1080i,1080p

Surface hardness

2H

Ports & interfaces

HDMI ports quantity

2

HDMI version

2.0

HDMI input ports quantity

2

DVI port

Y

USB port

Y

USB ports quantity

2

USB version

2.0

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Wi-Fi

N

Audio (L/R) out

1

RS-232 interface

Y

Remote (IR) input

1

Remote (IR) output

1

Audio

Built-in speaker(s)

Y

Number of built-in speakers

2

RMS rated power

20 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal

Product colour

Black

VESA mounting

Y

Panel mounting interface

400 x 200 mm

Performance

Purpose

Commercial

Operating hours (hours/days)

24/7

Power

Power consumption (typical)

70 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Computer system

Computer system

N

Built-in processor

Y

Processor family

ARM Cortex

Processor frequency

1.4 GHz

Processor cores

4

Internal memory

3 GB

Internal storage capacity

16 GB

Operating system installed

Android 8.0

Weight & dimensions

Width

969.9 mm

Depth

84.6 mm

Height

558.3 mm

Weight

10.5 kg

Weight (with stand)

11.1 kg

Packaging data

Package width

1070 mm

Package depth

153 mm

Package height

663 mm

Package weight

13.5 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Certificates

Certification

cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE

Technical details

I/O ports

Audio: x1 3.5 mm in/out S/PDIF: 1

Other features

Power consumption (max)

85 W
