Commercial Display 55IN LED 3840X2160 16:9 8MS CDE5520-W-E 1200:1 HDMI/DVI/USB

Introduction

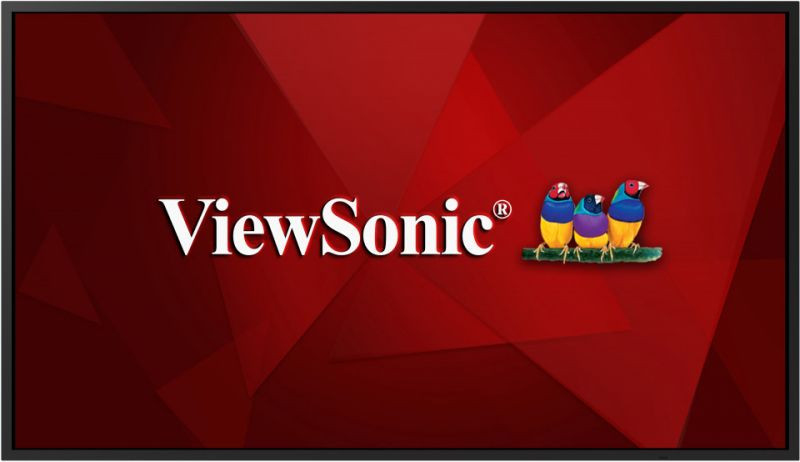

The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant

Multiple Ways to Connect and Share

Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.

AV Control System Interoperability

These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.

Centralized Device Control Manager

For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.

Reliable 24/7 Operation Rating

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.

Superb and Stunning Picture Quality

With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.

Powerful Secured Embedded Platform

This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.

Display

Panel type

IPS

LED backlighting type

Direct-LED

Display diagonal

139.7 cm (55")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

350 cd/m²

HD type

4K Ultra HD

Touchscreen

N

Native aspect ratio

16:9

Response time

9 ms

Contrast ratio (typical)

1200:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Active display area (W x H)

1209.6 x 680.4 mm

Display diagonal (metric)

139 cm

Panel life

40000 h

Native refresh rate

60 Hz

Haze rate

3%

Surface hardness

2H

Ports & interfaces

HDMI ports quantity

2

HDMI version

2.0

HDMI input ports quantity

2

DVI port

Y

DVI-D ports quantity

1

USB port

Y

USB ports quantity

2

USB version

2.0

USB connector type

USB Type-A

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Wi-Fi

Y

PC Audio in

Y

RS-232 interface

Y

Infrared data port

Y

Remote (IR) input

1

Remote (IR) output

1

PC Audio out

Y

Audio

Built-in speaker(s)

Y

Number of built-in speakers

2

RMS rated power

20 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal

Product colour

Black

Screen shape

Flat

VESA mounting

Y

Panel mounting interface

400 x 400 mm

Bezel width (bottom)

1.39 cm

Bezel width (side)

1.39 cm

Bezel width (top)

1.39 cm

Anti-glare screen

Y

Mounting type

Wall

Performance

Purpose

Universal

Operating hours (hours/days)

24/7

HDCP

Y

HDCP version

2.2

Power

Power consumption (typical)

100 W

Power consumption (max)

115 W

Power consumption (standby)

0.5 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

87 kWh

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Computer system

Computer system

Y

Computer system type

System on Chip (SoC)

Built-in processor

Y

Processor manufacturer

ARM

Processor family

ARM Cortex

Processor frequency

1.4 GHz

Internal storage capacity

16 GB

Operating system installed

Android 8.0

Video formats supported

ASF, AVI, AVS, AVS+, DIVX, FLV, H.263, H.264, H.265, HEVC, M-JPEG, MP4, MPEG, MPEG1, MPEG2, MPEG4, MVC, RM, VC-1, VP8, VP9, WMV, WMV3, XVID

Weight & dimensions

Display width

1243.2 mm

Display depth

74.8 mm

Display height

714 mm

Display weight

16.8 kg

Packaging data

Package width

1420 mm

Package depth

245 mm

Package height

910 mm

Package weight

52.8 kg

Packaging content

Remote control included

Y

Batteries included

Y

Cables included

AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Certificates

Certification

cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE, RCM

Other features

Quick start guide

Y
