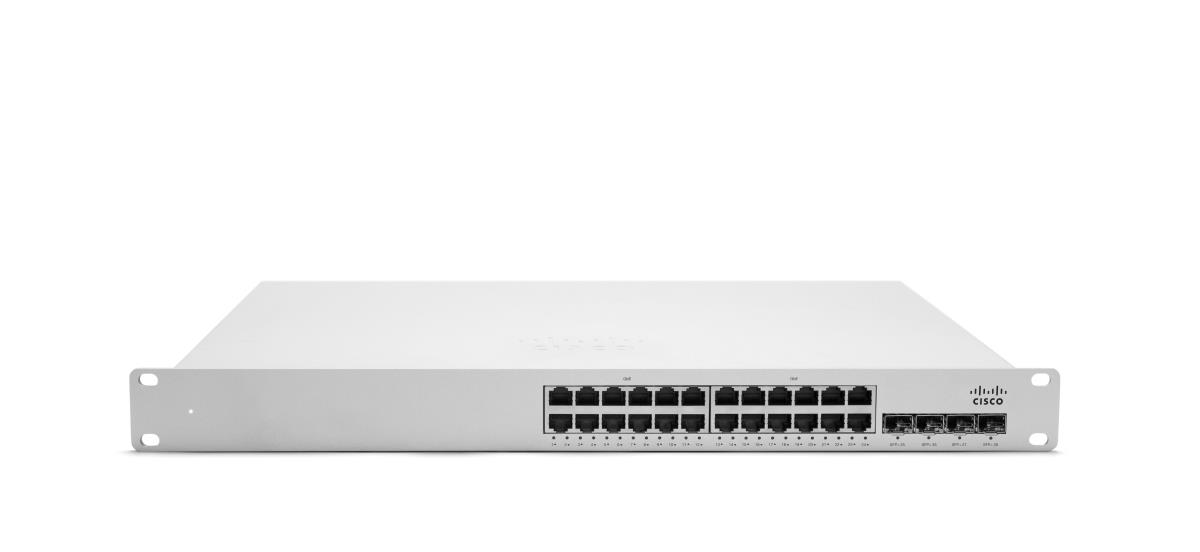

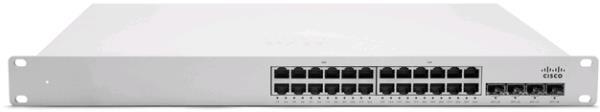

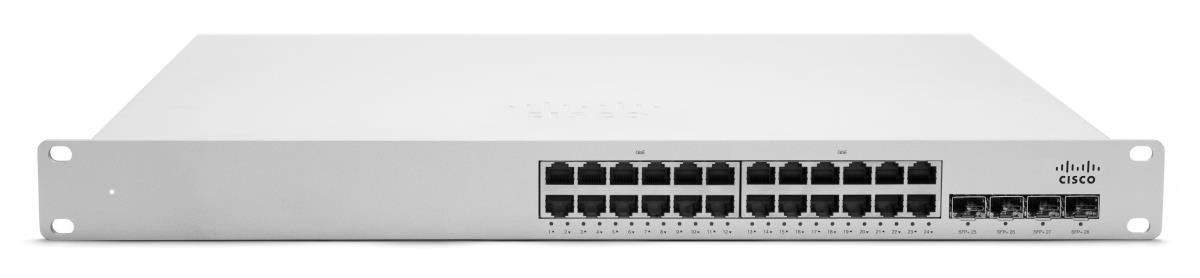

Meraki Cloud Managed Switch Ms350-24p L3 24x Gige 370w Poe

Introduction

Cloud Managed Switching for the Mission Critical Network

Cloud management

- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning

Monitoring and diagnostics

- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts

Layer 3

- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- First of a kind UI-based configuration
- Easy to configure routed interfaces
- Warm spare redundancy (VRRP)
- DHCP Failover

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

24

SFP+ module slots quantity

4

Network

Networking standards

IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u,IEEE 802.3z

10G support

Y

Copper ethernet cabling technology

10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T

Link aggregation

Y

Broadcast storm control

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

Auto-negotiation

Y

VLAN support

Y

Virtual LAN features

Tagged VLAN

Number of VLANs

4095

Data transmission

Switching capacity

128 Gbit/s

MAC address table

96000 entries

Security

DHCP features

DHCP server

IGMP snooping

Y

Security algorithms

802.1x RADIUS

Authentication

Port-based authentication

Multicast features

Multicast support

Y

Protocols

Management protocols

SNMP v2c

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Grey

LED indicators

Y

Performance

Physical stacking (units)

8

Firmware upgradeable

Y

Power

Power supply included

Y

AC input voltage

100 - 240 V

AC input frequency

47/63 Hz

Power consumption (typical)

56 W

Power consumption (max)

66 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

485 mm

Depth

516 mm

Height

44 mm

Weight

5.6 kg
