Elo Touch Solutions

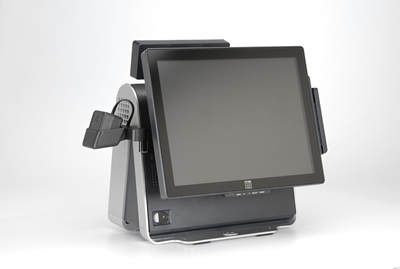

Pos System Touchcomputer 15d1 15in Cdc E1500

Pos System Touchcomputer 15d1 15in Cdc E1500

Part Number:
E549972
Language:
UK
 Without VATWith VAT
Base Price:€1.112,63€1.346,28
Recupel:+ €0,12+ €0,15
BeBat:+ €0,05+ €0,06
Total:€1.112,80€1.346,49

Introduction

The 15D Series 15" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 15D1 Updated is versatile and powerful. These touchcomputer is designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Celeron 1.8 GHz, Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 15D expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Display

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

Touchscreen

Yes

Display brightness

200 cd/m²

Touchscreen technology

Resistive

Processor

Processor frequency

2.2 GHz

Processor family

Intel® Celeron®

Processor model

E1500

Processor cache

0.512 MB

Processor front side bus

800 MHz

Motherboard chipset

Intel® G31 Express

Motherboard southbridge

ICH7

Memory

Internal memory

1 GB

Internal memory type

DDR2

Maximum internal memory

4 GB

Storage

Total storage capacity

160 GB

Storage media

HDD

HDD capacity

160 GB

HDD interface

SATA

Graphics

Graphics card manufacturer

Intel

Graphics card

GMA 3100

Features

Certification

UL/cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

7

Line-out

Yes

Microphone in

Yes

Parallel ports quantity

1

RS-232 ports

5

PS/2 ports quantity

2

Software

Operating system installed

Windows 7 Professional

Power

Power supply

270 W

Power consumption (typical)

198 W

Operational conditions

Operating relative humidity (H-H)

20 - 80%

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Weight

10 kg

Other features

Dimensions (WxDxH)

345 x 288 x 212 mm

Memory slots

2

Power requirements

100 - 240V, 47 - 63 Hz

Power supply type

AC

Networking features

Gigabit

Display

TFT LCD
