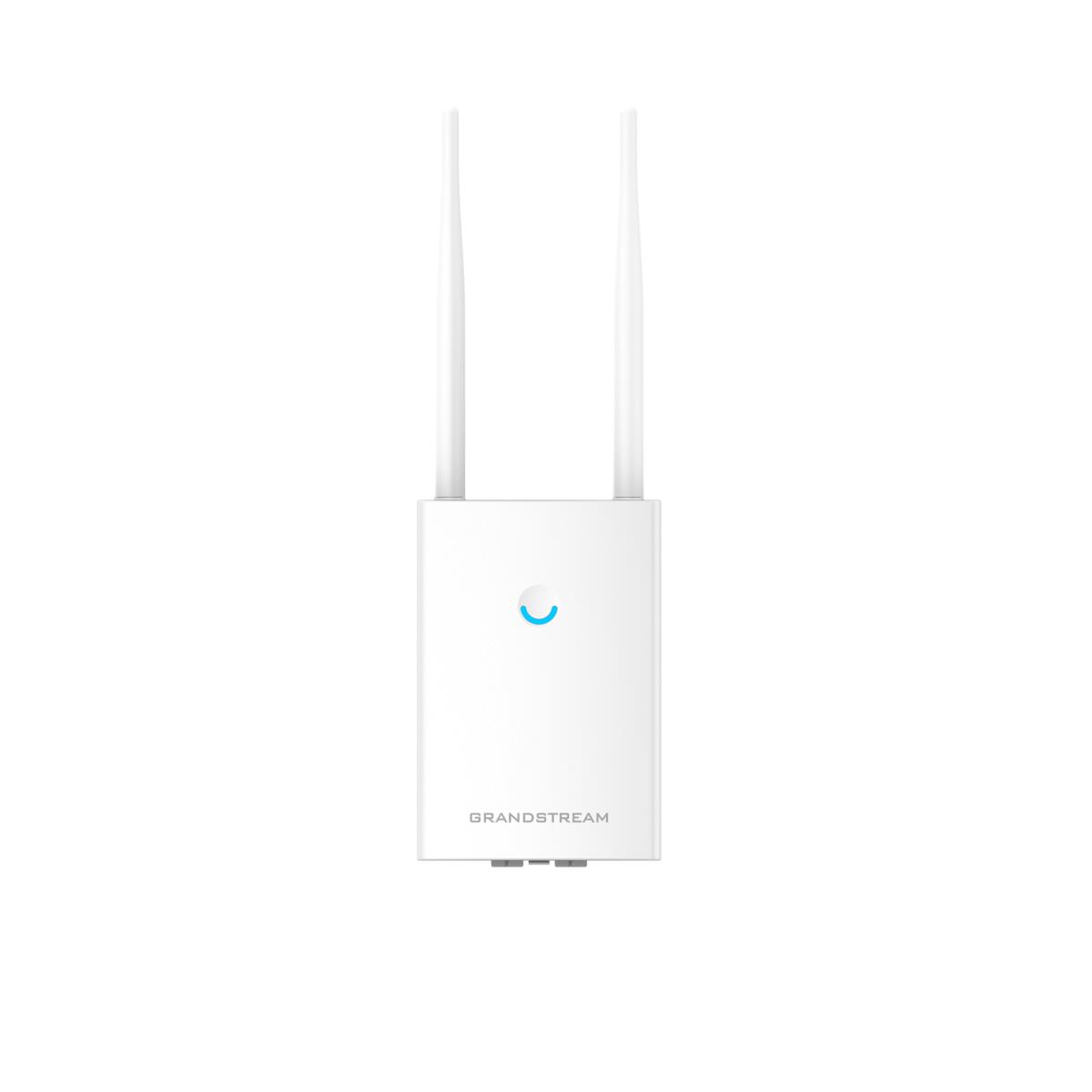

Wireless Access Point 867 Mbit/s White Power

Introduction

The GWN7605LR is equipped with a controller-less distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605LR is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. Powered by market leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and dual Gigabit network ports, the GWN7605LR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium indoor and outdoor user density scenarios.

Features

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

867 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Cabling technology

10/100/1000Base-T(X)

Number of users

100 user(s)

MIMO

Yes

MIMO type

Multi User MIMO

Quality of Service (QoS) support

Yes

Maximum outdoor range

250 m

Receiver sensitivity

2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

Security

Security algorithms

WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Number of SSID supported

16

Protocols

Supported network protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

10.16 W

Design

Placement

Wall

Product colour

White

Housing material

Metal

International Protection (IP) code

IP66

LED indicators

Yes

Antenna

Antenna type

External

Antennas quantity

2

Antenna gain level (max)

3.5 dBi

Weight & dimensions

Width

115 mm

Depth

358.3 mm

Height

45.3 mm

Weight

500 g

Packaging data

Package width

247 mm

Package depth

258 mm

Package height

86 mm

Package weight

655.3 g

Packaging content

Mounting kit

Yes

Quick start guide

Yes

Operational conditions

Operating relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

-30 - 70 °C

Storage temperature (T-T)

-30 - 80 °C

Sustainability

Sustainability compliance

Yes

Sustainability certificates

CE
