Projector Pa804ul 7500lm 1920x1200 Wuxga Dlp Hd Black

Introduction

A new class of silent projection

Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.

With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.

Projector

Screen size compatibility

1016 - 12700 mm (40 - 500")

Projection distance

0.7 - 50.9 m

Projector brightness

8200 ANSI lumens

Projection technology

3LCD

Projector native resolution

WUXGA (1920x1200)

Contrast ratio (typical)

3000000:1

Native aspect ratio

16:10

Projector brightness (economic mode)

7500 ANSI lumens

Horizontal scan range

15 - 153 kHz

Vertical scan range

48 - 120 Hz

Keystone correction, horizontal

-40 - 40°

Keystone correction, vertical

-40 - 40°

Light source

Light source type

Laser

Service life of light source

20000 h

Lens system

Focus

Auto/Manual

Zoom capability

Y

Zoom type

Auto/Manual

Horizontal lens shift range

-20 - 20%

Vertical lens shift range

-50 - 10%

Video

Full HD

Y

3D

Y

Supported graphics resolutions

1920 x 1200 (WUXGA),2048 x 1080,2560 x 1600 (WQXGA),4096 x 2160

Supported video modes

480i,480p,576i,576p,720p,1080i,1080p

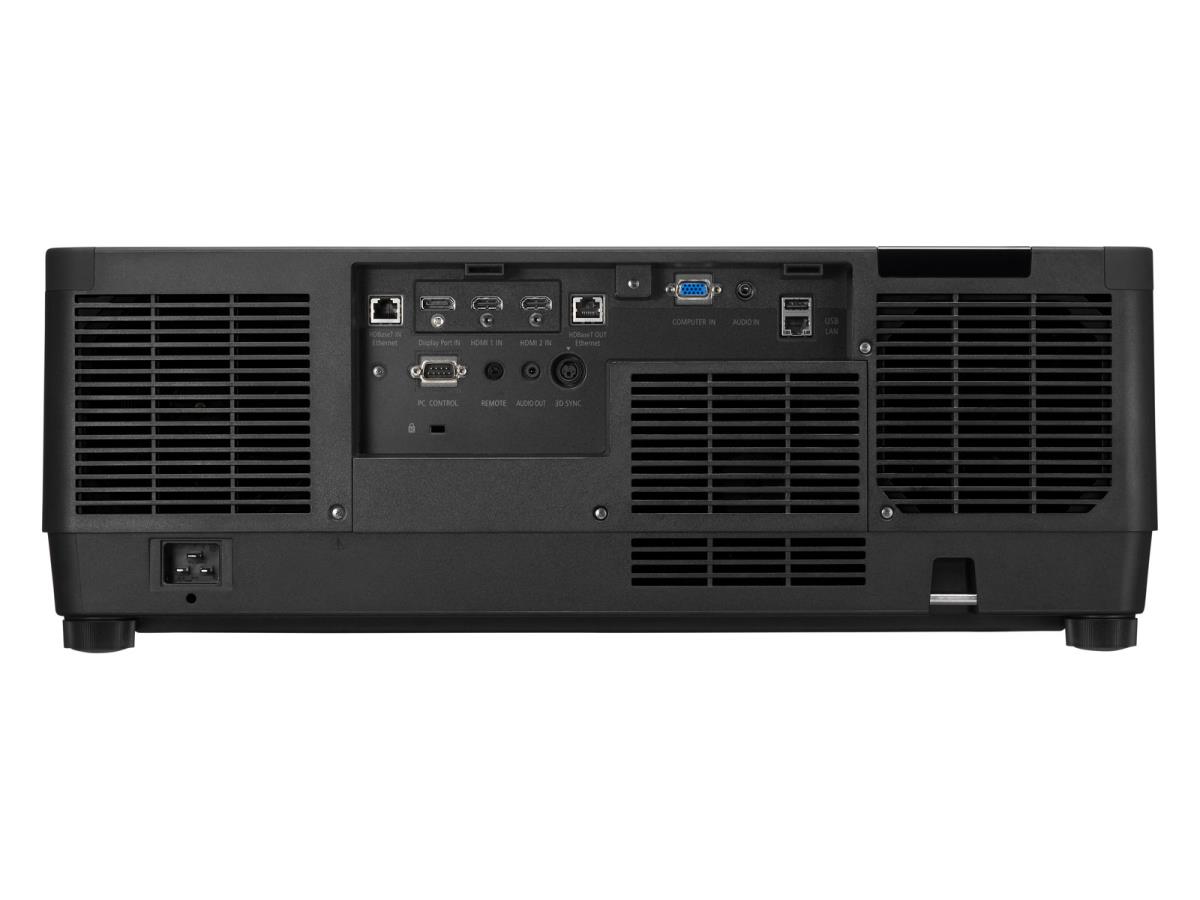

Ports & interfaces

DisplayPorts quantity

1

HDBaseT port

Y

USB 2.0 ports quantity

1

Audio (L/R) in

1

Serial interface type

RJ-45,RS-232

PC Audio in

Y

PC Audio out

Y

VGA (D-Sub) ports quantity

1

HDMI ports quantity

2

Features

Noise level (economic mode)

28 dB

HDCP

Y

Noise level

30 dB

Design

Product type

Large venue projector

Product colour

Black

Placement

Ceiling, Floor

Power

Power source

AC

Power consumption (typical)

615 W

Power consumption (standby)

0.28 W

Power consumption (economy mode)

350 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-10 - 50 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

20 - 80%

Weight & dimensions

Width

599 mm

Depth

490 mm

Height

208 mm

Weight

24.1 kg

Packaging content

Remote control included

Y

Remote control type

IR

Cables included

AC

Manual

Y

Technical details

Sustainability certificates

ErP
