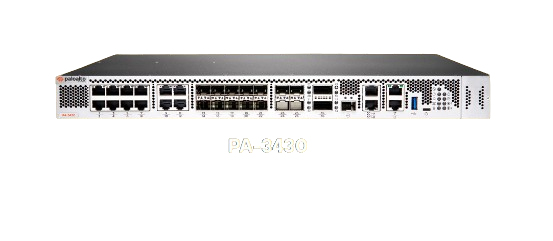

Pa Nws Pa3430 Redundant Ac Power Supp

Introduction

Palo Alto Networks PA-3400 Series ML-Powered NGFWs—comprising the PA-3440, PA-3430, PA-3420, and PA-3410—target high-speed internet gateway deployments. The PA-3400 Series appliances secure all traffic.

The world’s first ML-Powered Next-Generation Firewall (NGFW) enables you to prevent unknown
threats, see, and secure everything—including the internet of things (IoT)—and reduce errors with
automatic policy recommendations.
The controlling element of the PA-3400 Series is PAN-OS, the same software that runs all Palo Alto
Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content,
and then ties that traffic to the user regardless of location or device type. The application, content, and user—in other words, the elements that run your business—then serve as the basis of your security policies, resulting in improved security posture and reduced incident response time.

Data transmission

Firewall throughput

29 Gbit/s

IPSec VPN throughput

12 Gbit/s

Network

Dynamic DNS (DDNS)

Yes

Multicast support

Yes

Security

Security algorithms

128-bit AES, 192-bit AES, 256-bit AES

Management features

LED indicators

Yes

URL filtering

Yes

Ports & interfaces

Connectivity technology

Wired

Console port

RJ-45

Micro-USB ports quantity

1

SFP+ module slots quantity

10

SFP28 ports quantity

4

Storage

Storage media type

SSD

SSD capacity

480 GB

Design

Rack mounting

Yes

Form factor

1U

Power

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Power consumption (typical)

133 W

Power consumption (max)

190 W

Redundant power supply (RPS) support

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

435.6 mm

Depth

359.4 mm

Height

43.2 mm
