Digital Signage - Qe85t - 85in

Introduction

Upgrade your business with efficient digital displays
Samsung’s QET series features intelligent upscaling technology that displays all content in eye-catching UHD resolution along with a boundless design and simple content management features.

Incredible UHD picture quality
Samsung’s QET series is able to capture customer attention by providing an incredibly clear picture, showcasing lifelike images in advanced picture quality than ever before.

Crystal Display
Samsung’s QET series features a Crystal Display which optimizes color tones without distortion, ensuring each backlight unit is fine-tuned to match each color filter and create a clear native white.

Crystal Processor 4K
Intelligent UHD upscaling technology, made possibly by Samsung’s Crystal Processor 4K, allows content developed at a lower resolution to be elevated to UHD-level quality. It also performs edge restoration and noise reduction to optimize on-screen text and imagery.

Boundless design for an immersive experience

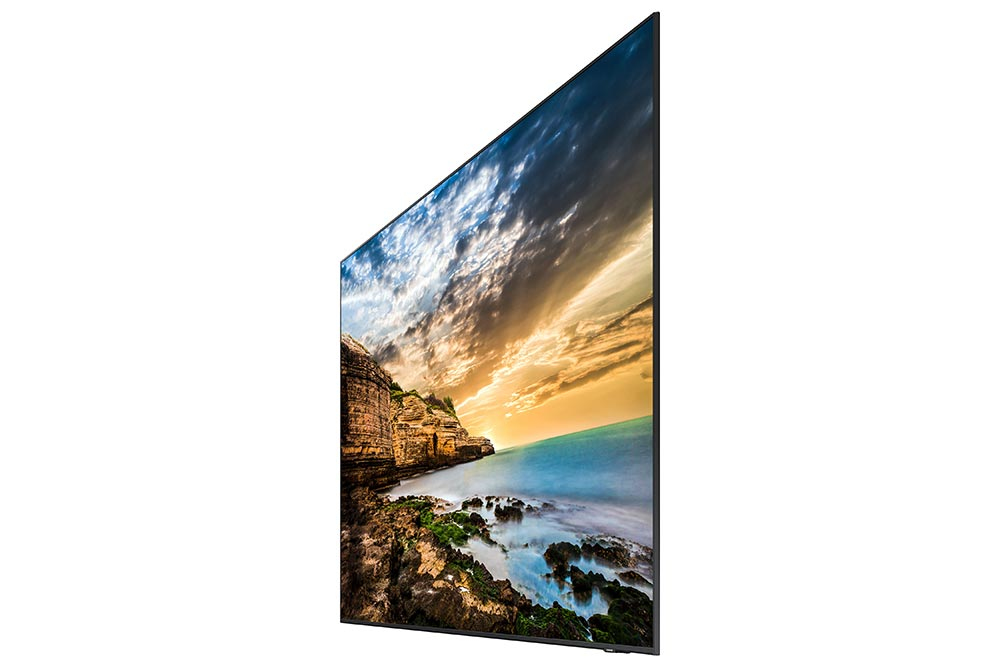

The boundless design of the display is optimized to allow the viewer to be completely immersed by content and the display seamlessly integrates into any business environment.

Integrated content management solution
With a range of on-demand images and videos, MagicINFO Lite Player makes content management easier than ever before. New content can be added from a personal computer or USB drive by connecting directly to the display.

Display

Display diagonal

2.16 m (85")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

300 cd/m²

HD type

4K Ultra HD

Response time

8 ms

Contrast ratio (typical)

4000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.4875 x 0.4875 mm

Active display area (W x H)

1872 x 1053 mm

Colour saturation

72%

Horizontal scan range

30 - 81 kHz

Vertical scan range

48 - 75 Hz

Haze rate

2%

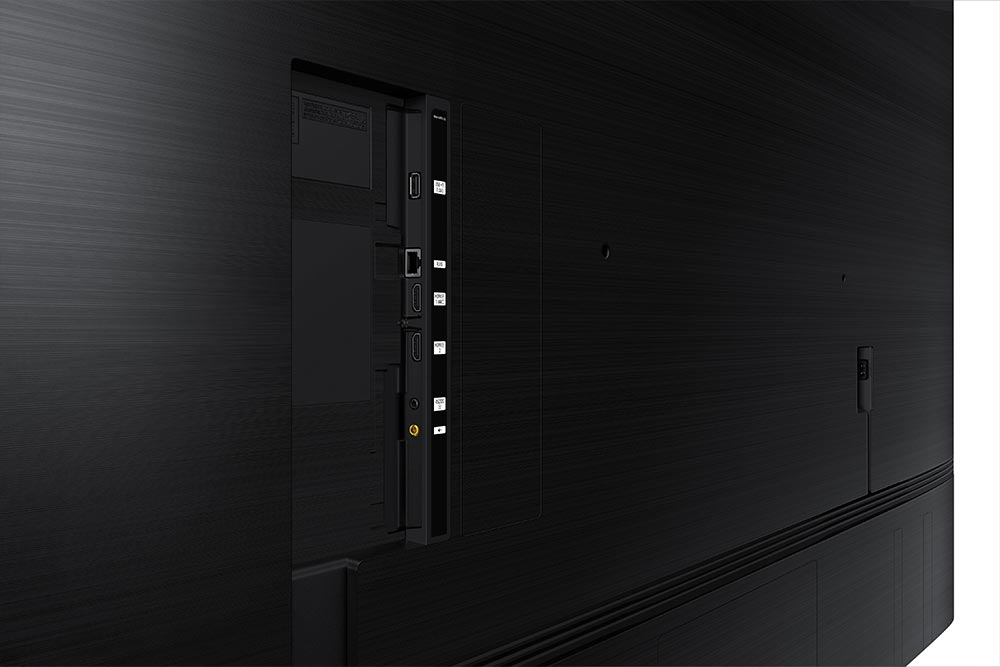

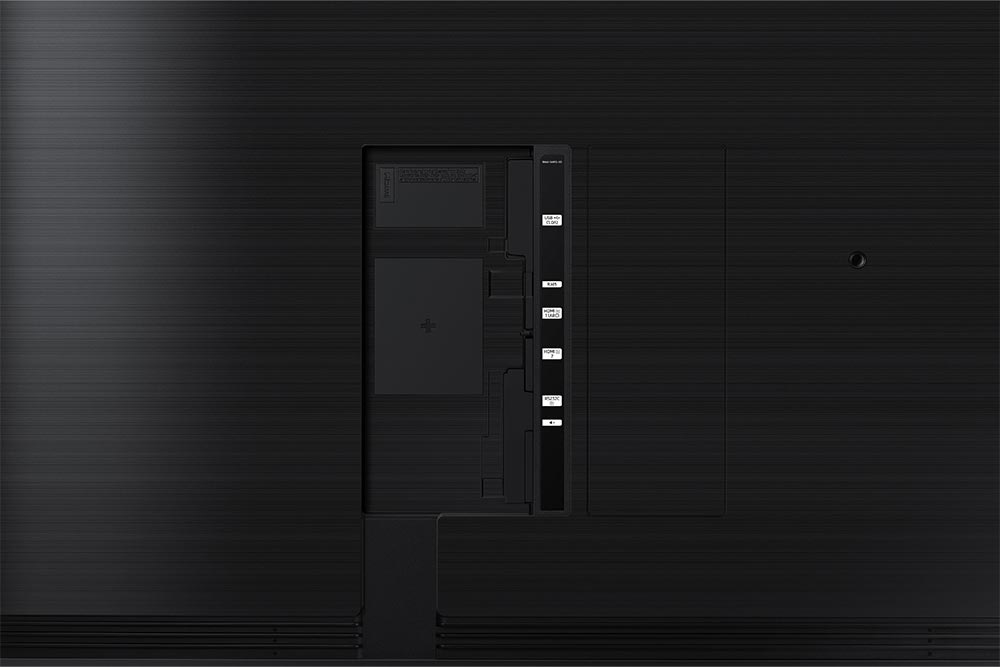

Ports & interfaces

HDMI ports quantity

2

HDMI version

2.0

USB port

Y

USB ports quantity

1

USB version

2.0

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Audio (L/R) out

1

RS-232 interface

Y

Audio

Built-in speaker(s)

Y

Number of built-in speakers

1

RMS rated power

10 W

Speaker impedance

2 O

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal

Product colour

Black

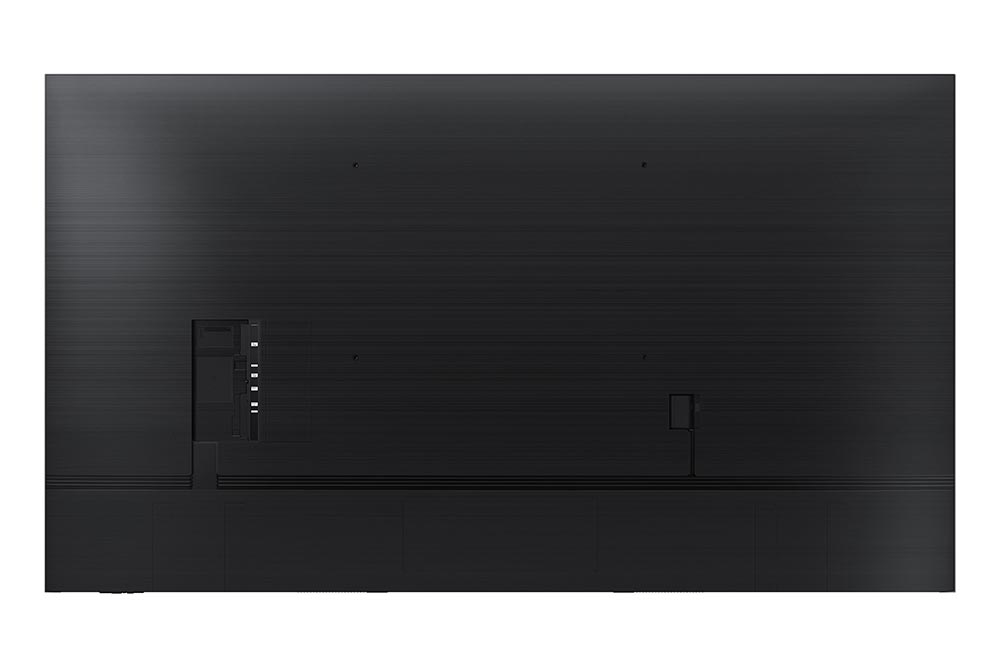

VESA mounting

Y

Panel mounting interface

600 x 400 mm

Performance

Purpose

Universal

Operating hours (hours/days)

16/7

HDCP

Y

HDCP version

2.2

Power

Power consumption (typical)

208 W

Power consumption (sleep)

0.5 W

AC input voltage

100 - 200 V

AC input frequency

50/60 Hz

Computer system

Built-in processor

Y

Processor manufacturer

ARM

Processor family

ARM Cortex

Processor model

Cortex-A72

Processor frequency

1.7 GHz

Internal memory

2 GB

Operating system installed

Tizen 4.0

Video formats supported

AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9

Audio formats supported

AC3

Image formats supported

JPEG, PNG

Weight & dimensions

Width

1900.9 mm

Depth

1086.2 mm

Height

26.9 mm

Weight

41.5 kg

Packaging data

Package width

2075 mm

Package depth

220 mm

Package height

1237 mm

Package weight

54.3 kg

Packaging content

Remote control included

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Certificates

Certification

Safety 60950-1,

Features

Heat dissipation (max)

930.9 BTU/h

Other features

Quick start guide

Y
