ACT

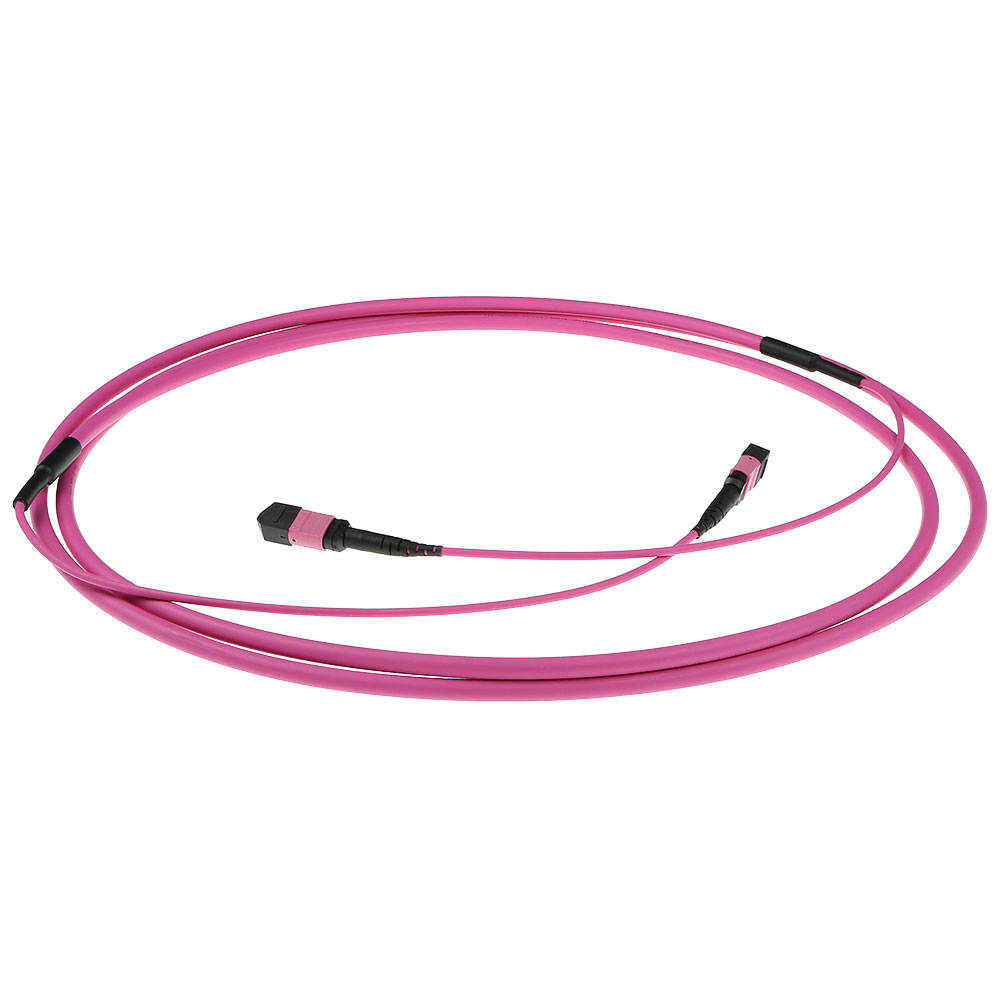

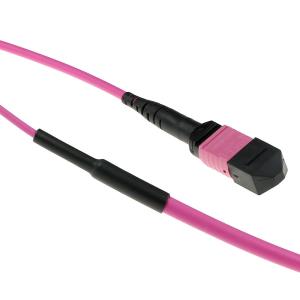

Fiber Trunk Cable - MTP/MPO Female Connector - Multimode 50/125 OM4(OM3) Polarity B - 50m - Erika Violet

Fiber Trunk Cable - MTP/MPO Female Connector - Multimode 50/125 OM4(OM3) Polarity B - 50m - Erika Violet

Part Number:
DC5025
Language:
UK
 Without VATWith VAT
Base Price:€356,60€431,49
Recupel:+ €0,06+ €0,07
Total:€356,66€431,56

Introduction

USP

- Ultra compact and extra protected by using 12 fibers in a 6.5mm trunk cable and one MTP connector at each end, so very suitable for datacenters
- ACT MTP/MPO cables use MTP US Conec connectors for among other benefits a very low loss and better mechanical properties
- Designed to be used with QSFP transceivers or as backbone cabling
- The OM4 fibers in these cables are backwards compatible with OM3 fibers

Features

Cable length

50 m

Connector 1

MPO/MTP

Connector 2

MPO/MTP

Connector 1 gender

Female

Connector 2 gender

Female

Fibre optic type

OM3/OM4

Product colour

Violet

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Insertion loss

0.35 dB

Return loss

20 dB

Jacket material

Low smoke fire retardant zero halogen (LSFRZH), Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T)

-20 - 70 °C

Storage temperature (T-T)

-40 - 80 °C

Weight & dimensions

Cable diameter

6.5 mm

Weight

2.08 kg

No options for this product
