ANTEC
Cooling Fan Cyclone Blower For Any Expansion Slot

Cooling Fan Cyclone Blower For Any Expansion Slot

Part Number:
0-761345-11768-5
Language:
UK
 Without VATWith VAT
Base Price:€69,66€84,29
Total:€69,66€84,29

Introduction

Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120mm fan, CSK Bronze includes Antec’s 3-year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.

Better Looking Builds

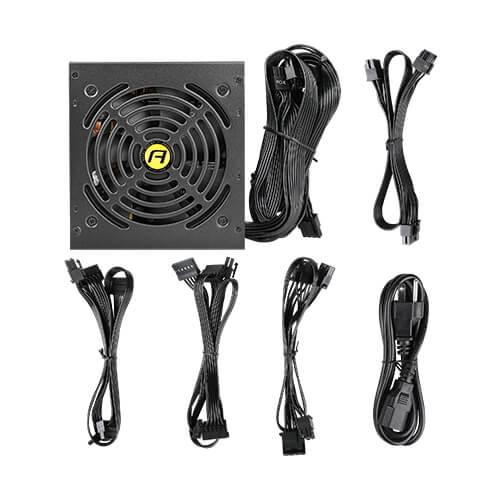

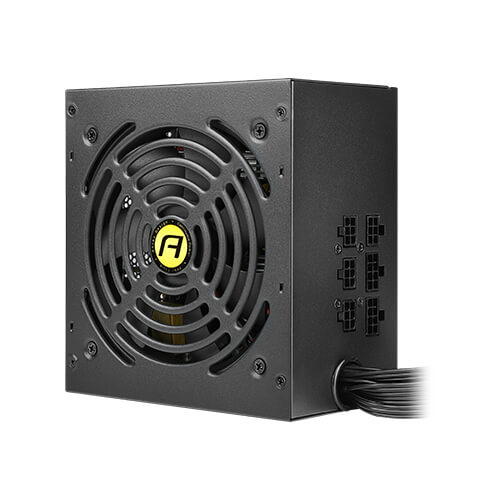

The semi-modular cabling system lets you use the cables you need,
allowing your build to save space and reduce clutter, and improving the airflow.

120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.

Power

Total power

750 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

10 - 5 A

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

120 W

Combined power (+12V)

696 W

Combined power (+5V)

120 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

20 A

Max output current (+12V)

58 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Efficiency

88%

Ports & interfaces

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

55 cm

Number of SATA power connectors

8

SATA power cable length

500,650,800,950 mm

Peripheral (Molex) power connectors (4-pin)

3

Peripheral (Molex) power cable length

500,650,800 mm

EPS power connector (4+4 pin)

Y

PCI Express power connectors (6+2 pin)

4

PCI Express power cable length

65 cm

CPU power cable length

80 cm

ATX power connector (20+4 pin)

Y

PCI Express connector

Y

Cabling type

Semi-Modular

Performance

80 PLUS certification

80 PLUS Bronze

Purpose

PC

Power supply unit (PSU) form factor

ATX

ATX version

2.31

Certification

cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC

Design

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

On/off switch

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

150 mm

Depth

140 mm

Height

86 mm

Weight

1.77 kg

Packaging data

Package weight

2.19 kg

No options for this product
.
