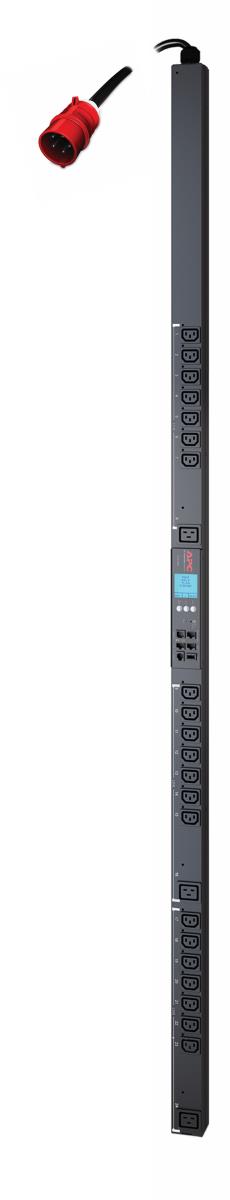

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19

Part Number:
 Without VATWith VAT
Base Price:€2.601,87€3.148,26


APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.


PDU types

Metered, Switched

Rack capacity




Product colour


Ports & interfaces

AC outlets quantity

24 AC outlet(s)

AC outlet types

C13 coupler, C19 coupler


Cable length

1.83 m


EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE

Management features


Current, Power, Voltage

Outlet control

Lock-out, Recycle, Turn off, Turn on


Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Maximum current

16 A

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11040 W

Weight & dimensions

Dimensions (WxDxH)

56 x 51 x 1829 mm


8.23 kg

Packaging data

Package dimensions (WxDxH)

162 x 117 x 2038 mm

Package weight

10.5 kg

Operational conditions

Operating temperature (T-T)

-5 - 45 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Technical details

Sustainability certificates
