AXIS
T8524 Poe+ Network Switch

T8524 Poe+ Network Switch

Part Number:
01192-002
Language:
UK
 Without VATWith VAT
Base Price:€1.369,39€1.656,96
Recupel:+ €0,12+ €0,15
Total:€1.369,51€1.657,10

Introduction

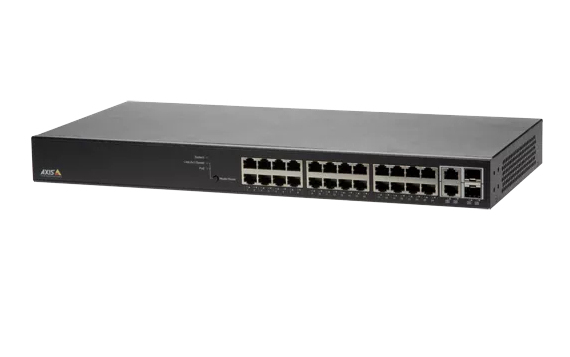

AXIS T8524 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with a unique web graphic user interface with topology for easy overview and management of all devices in the system.

Easy to install and configure
AXIS T8524 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Camera Management. AXIS T8524 also comes with an individual password and easy to use setup wizard.

AXIS T8524 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.

Perfect match for Axis surveillance solutions
AXIS T8524 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.

Total overview with unique user interface
The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.

Management features

Switch type

Managed

Quality of Service (QoS) support

Y

ARP inspection

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

2

Network

Networking standards

IEEE 802.1x,IEEE 802.3at

VLAN support

Y

Virtual LAN features

Private VLAN

Data transmission

Switching capacity

52 Gbit/s

Throughput

38.7 Mpps

MAC address table

8000 entries

Jumbo frames support

Y

Jumbo frames

9216

Security

DHCP features

DHCP server,DHCP snooping

Access Control List (ACL)

Y

IGMP snooping

Y

Security algorithms

HTTPS,SNMP,SNMPv3

SSH/SSL support

Y

BPDU filtering/protection

Y

Password protection

Y

ICMP attack prevention

Y

Design

Rack mounting

Y

Product colour

Black

Housing material

Metal

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Surge protection

Y

Surge protection voltage

6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Power over Ethernet plus (PoE+) ports quantity

24

Power over Ethernet (PoE) power per port

30 W

Total Power over Ethernet (PoE) budget

370 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

442 mm

Depth

211 mm

Height

44 mm

Weight

3.2 kg

Packaging data

Cables included

AC

User guide

Y

Rack mount kit

Y

Rubber feet

Y
