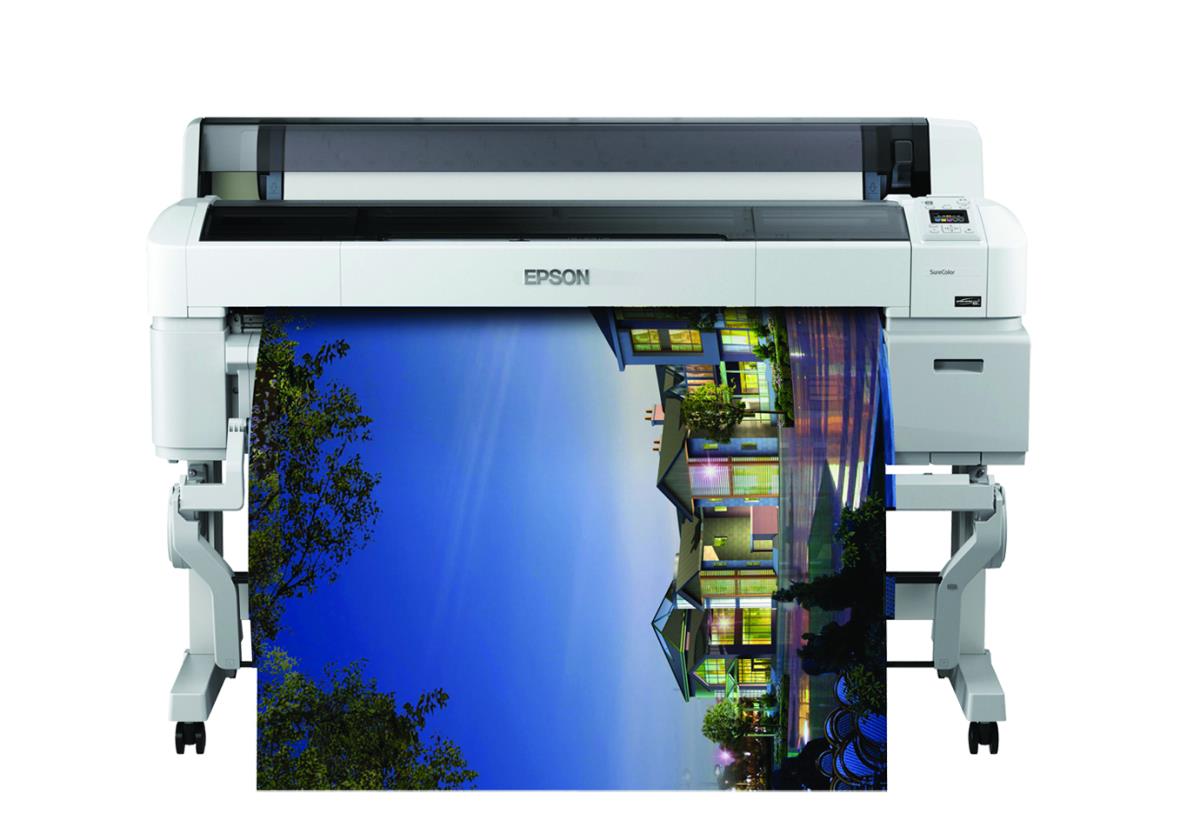

SureColor Sc-t7200d-ps - Color Printer - Inkjet - A0 - USB / Ethernet

Introduction

Ideal for graphics, CAD and GIS
The SureColor SC-T7200D is one of the SureColor SC-T series of high-speed, four-colour large-format printers, designed to produce a wide range of high-quality display graphics, CAD and GIS applications in design, commercial print, copy shop, architecture, building, engineering, retail and education environments.

Highly productive
To maximise productivity and flexibility, the SC-T7200D features double rolls with auto paper loading and auto switching between media, and high-speed printing - outputting an A1 print takes just 28 seconds.

Fast
The SureColor SC-T7200D features 1GB of RAM for ultra-fast image processing, and an optional 320GB HDD for job caching and recall. Optional PostScript support with dual 1.6GHz CPUs enables printing of large data-rich files quickly and directly from leading design and CAD programs.

High quality output
The combination of Epson's PrecisionCore TFP printheads and UltraChrome XD pigment ink delivers industry-leading output quality and precise, repeatable performance. UltraChrome XD pigment ink is smudge and water resistant and delivers deep blacks and crisp, dense lines - ideal for technical graphics - and the vibrant colours necessary for high-quality prints and posters, on coated and non-coated media - including board up to 1.5mm thick.

Printing

Colour

Y

Maximum resolution

2880 x 1440 DPI

Page description languages

ESC/P-R,HP-GL/2,HP-RTL,PostScript 3

Printing colours

Cyan, Magenta, Matte black, Photo black, Yellow

Paper handling

Maximum print size

A0 (841 x 1189 mm)

ISO A-series sizes (A0...A9)

A0,A1,A2,A3,A3+,A4

ISO B-series sizes (B0...B9)

B1,B2,B3,B4

Cut sheets

Y

Media thickness

0.08 - 1.5 mm

Roll top margin

3 mm

Roll paper

Y

Ports & interfaces

Wi-Fi

N

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Y

USB port

Y

USB connector

USB Type-A

USB 2.0 ports quantity

1

Ethernet LAN data rates

10,100,1000 Mbit/s

RJ-45 ports quantity

1

Performance

Product colour

White

Built-in display

Y

Display

LCD

Display diagonal

6.81 cm (2.68")

Internal memory

1024 MB

Sound pressure level (printing)

50 dB

Country of origin

China

Power

Power consumption (standby)

3 W

Power consumption (typical)

65 W

Power consumption (off)

0.5 W

System requirements

Windows operating systems supported

Windows 10,Windows 7,Windows 7 x64,Windows 8,Windows 8 x64,Windows 8.1,Windows Vista,Windows Vista x64,Windows XP

Mac operating systems supported

Mac OS X 10.5 Leopard

Linux operating systems supported

Y

Weight & dimensions

Width

1608 mm

Depth

1126 mm

Height

1128 mm

Weight

133 kg

Packaging data

Package width

1740 mm

Package depth

2060 mm

Package height

820 mm

Package weight

209.5 g

Cartridge(s) included

Y

Drivers included

Y

Manual

Y

Quick start guide

Y

Logistics data

Quantity per pack

1 pc(s)
