0u 24 C13 32a Pdu

Introduction

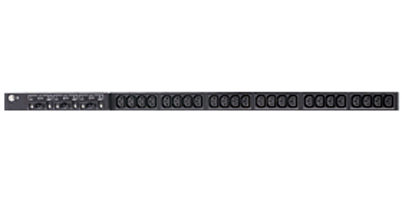

The IBM 0U Power Distribution Units (PDU) are space-efficient, outlet-dense, and provide the most cost-effective power distribution. The 32 A single-phase IBM 46M4131 features 24 IEC-320-C13 (10 A) receptacles and is ideal for entry-level configurations.

Design

PDU types

Basic

Rack capacity

0U

Product colour

Black

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C13 coupler

Features

Cable length

3 m

Certification

EN55024:2003; IEC 6100-4-2, -3, -4, -5, -6, -8, -11

Power

Nominal input voltage

220-240 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

220-240 V

Output voltage

32 V

Weight & dimensions

Dimensions (WxDxH)

85 x 900 x 44.5 mm

Weight

5.4 kg

Operational conditions

Operating temperature (T-T)

10 - 55 °C

Operating relative humidity (H-H)

5 - 90%
