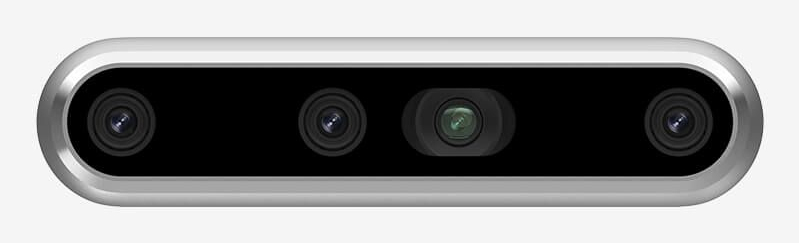

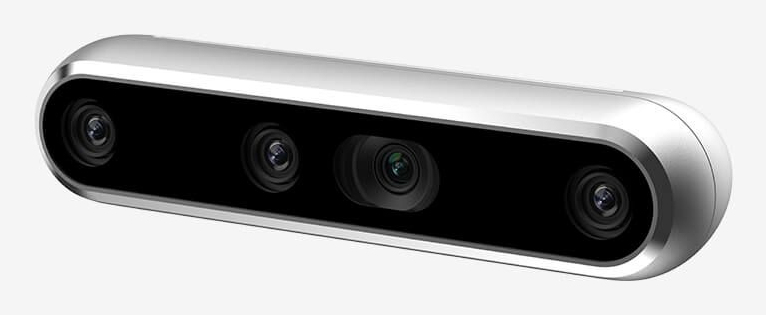

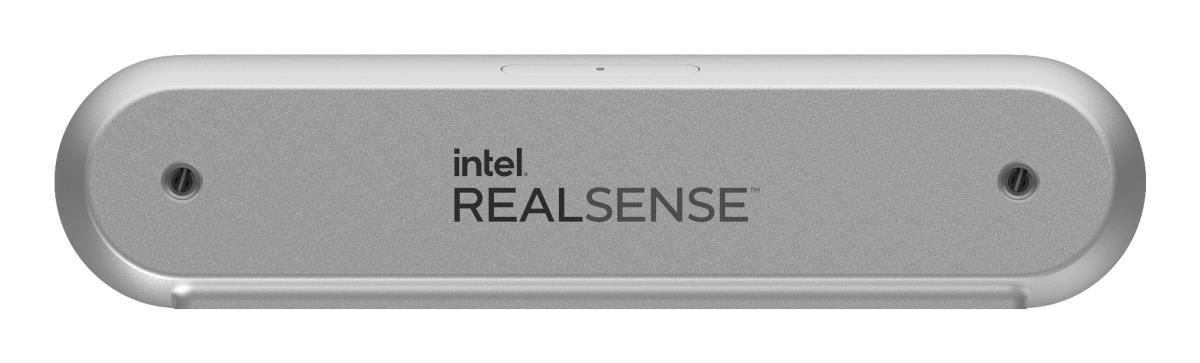

Intel Realsense Depth Camera D456

Introduction

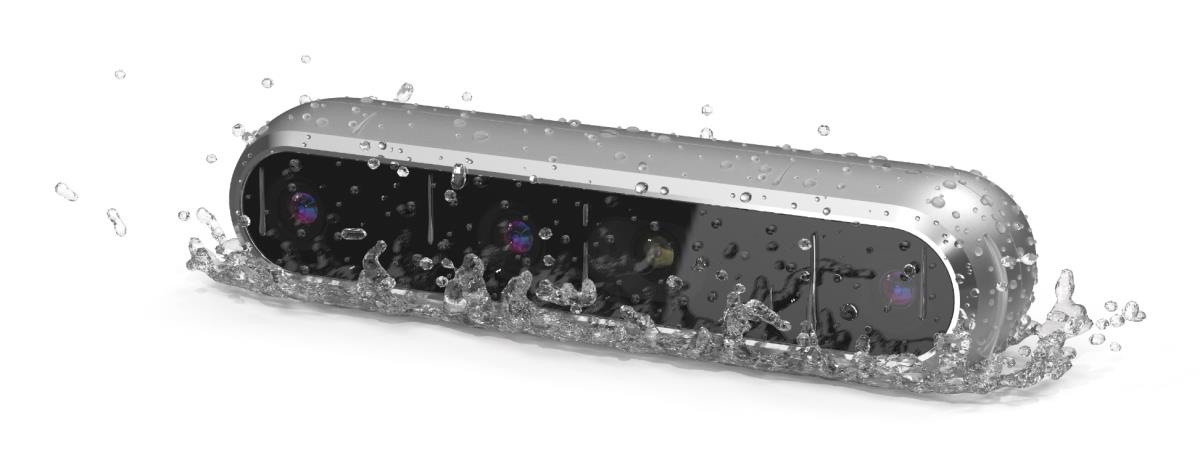

An IP65 rated long range depth camera.
The Intel® RealSense™ Depth Camera D456 is based on our longest range D455 USB popular camera with 3 global shutter sensors and IMU. The D456 has an IP65 rated enclosure which is dust tight and protected from projected water.

What is IP65 rating?

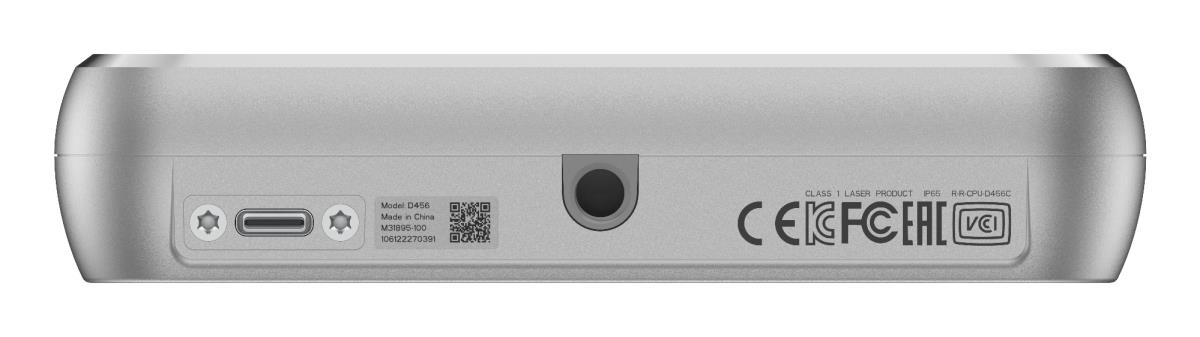

The IP code or ingress protection code indicates how well a device is protected against water and dust. The D456 camera has a protected USB3 interface and sealed enclosure protecting the camera from ingress of dust and water jets from any direction.

An IMU inside.
The camera integrates an IMU to allow your application to refine its depth awareness in any situation where the camera moves. This allows improved environmental awareness for robotics and drones.

Best for outdoor applications
The sealed IP65 enclosure with the same dimensional form factor as D455 makes D456 the best fit for outdoor applications (under extreme environments), such as outdoor robots, automotive infotainment outdoor digital signs and more.

Leveraging the power of SDK 2.0
Build the future with the open source Intel® RealSense™ SDK 2.0 and depth tools. Platform independent, the SDK supports all current Intel RealSense depth cameras and includes wrappers for many common platforms and languages.

Features

Product type

Camera

Brand compatibility

Intel

Product colour

Black, Silver

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Camera

Color camera resolution

1280 x 800 pixels

Infrared (IR) camera

Yes

Infrared camera resolution

1280 x 720 pixels

Color camera frame rate

30 fps

Infrared camera frame rate

90 fps

Weight & dimensions

Width

124 mm

Depth

26 mm

Height

29 mm
