Digital Signage - 98um5k-b - 98in - 3840 X 2160 (uhd)

Introduction

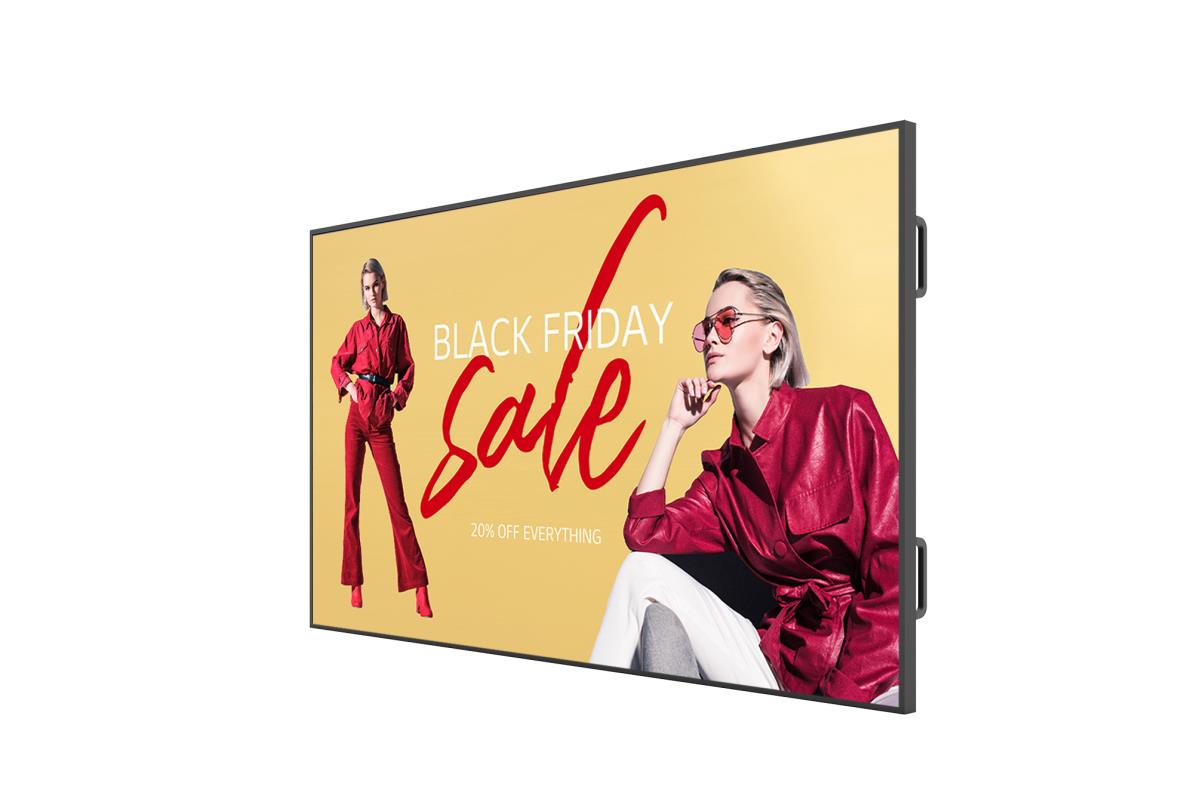

UHD Large Screen Signage Display with LG webOS Platform

Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

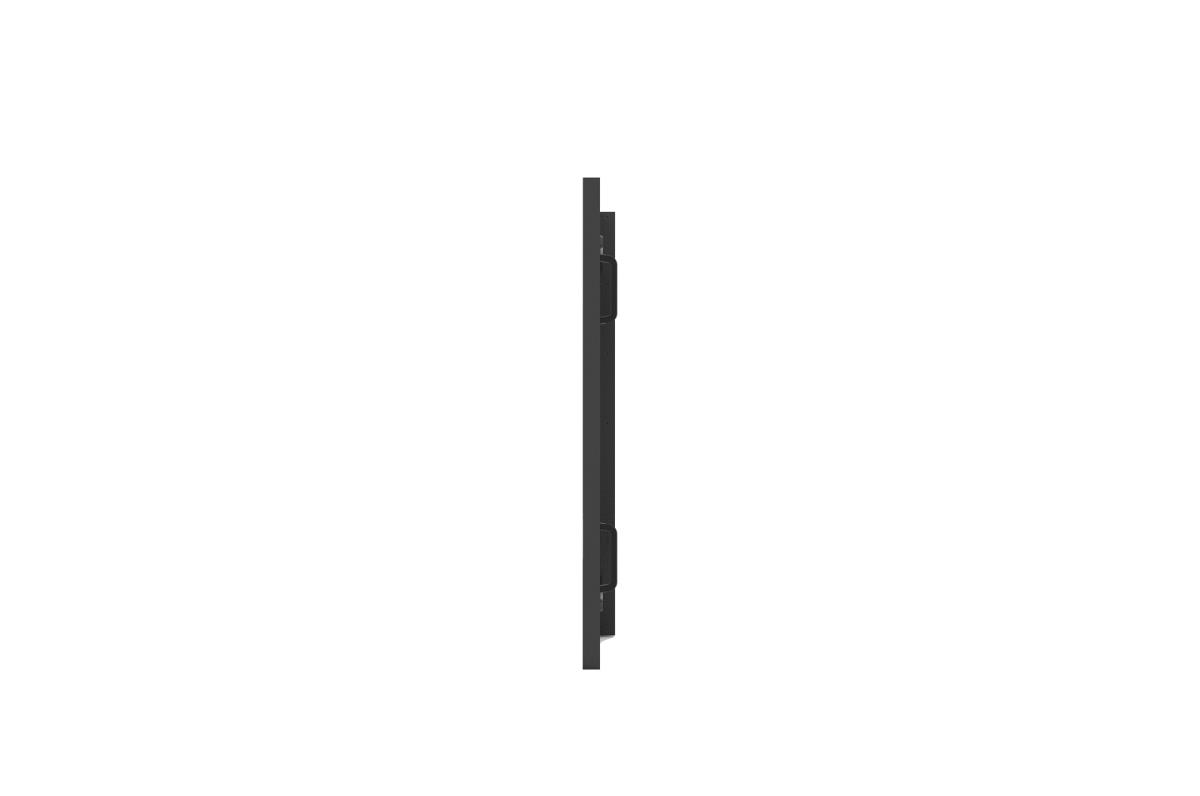

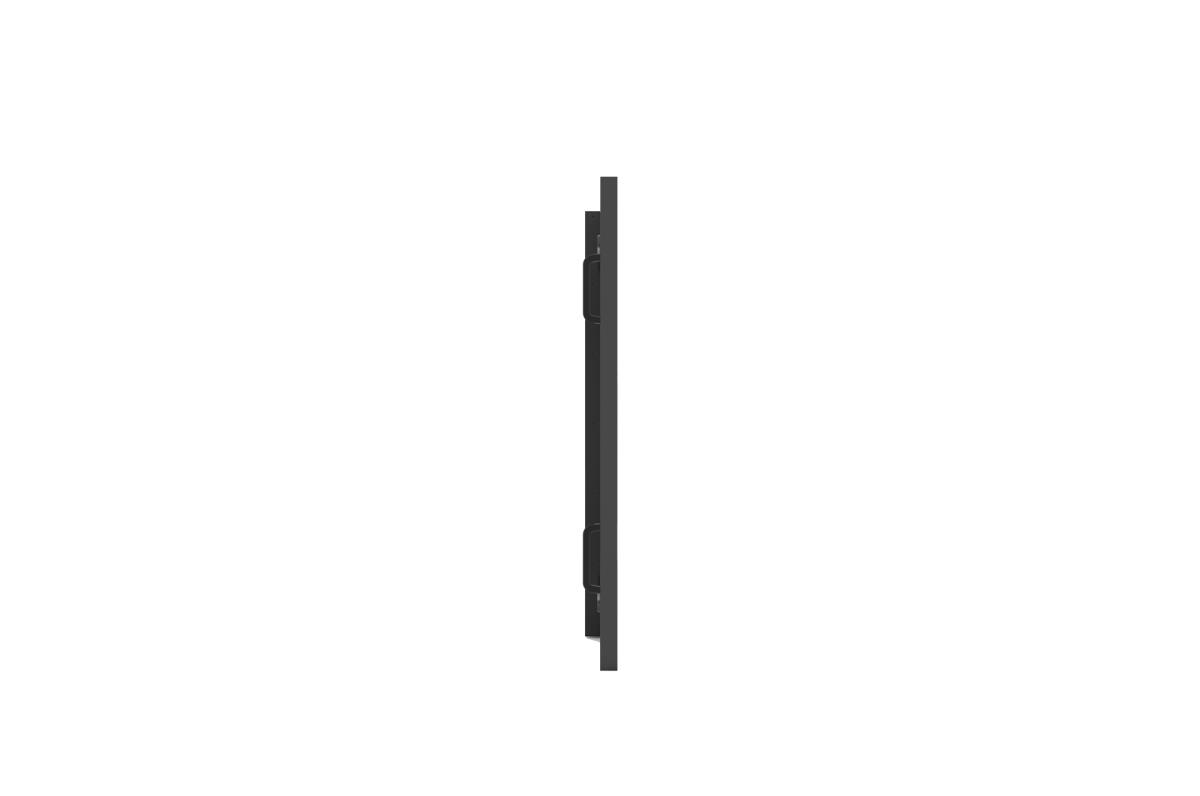

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display

Panel type

ADS

LED backlight

Yes

LED backlighting type

Direct-LED

Display diagonal

2.49 m (98")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

HD type

4K Ultra HD

Touchscreen

No

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

1200:1

Contrast ratio (dynamic)

200000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Panel life

30000 h

Colour depth

8 bit

Native refresh rate

60 Hz

Haze rate

25%

Ports & interfaces

HDMI ports quantity

4

HDMI input ports quantity

3

HDMI output ports quantity

1

DVI port

Yes

DVI-D ports quantity

1

DisplayPorts quantity

1

USB port

Yes

USB ports quantity

1

USB version

2.0

USB connector type

USB Type-A

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Wi-Fi

Yes

RS-232C

Yes

Remote (IR) input

1

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

20 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal/Vertical

Product colour

Black

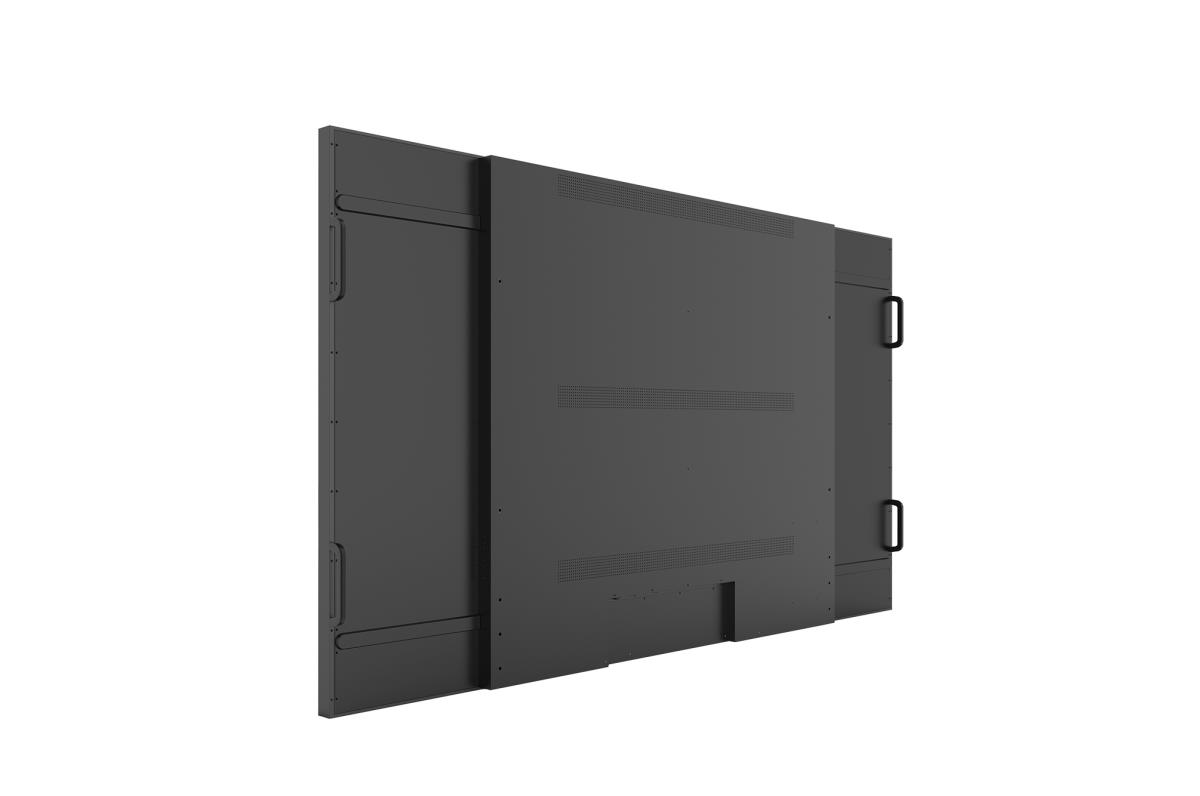

VESA mounting

Yes

Panel mounting interface

800 x 400 mm

Bezel width (bottom)

1.7 cm

Bezel width (side)

1.7 cm

Bezel width (top)

1.7 cm

Performance

Purpose

Commercial

Picture-in-Picture

Yes

On Screen Display (OSD)

Yes

Operating hours (hours/days)

16/7

HDCP

Yes

Automatic brightness control

Yes

HDCP version

1.4/2.2/2.3

Power

Power consumption (typical)

430 W

Power consumption (standby)

0.5 W

Power consumption (max)

560 W

AC input voltage

100-240 V

AC input frequency

50-60 Hz

Computer system

Internal memory

16 GB

Operating system installed

Web OS

Operating system version

6.0

Weight & dimensions

Display width

2198 mm

Display depth

79.5 mm

Display height

1253 mm

Display weight

78 kg

Packaging data

Package width

2455 mm

Package depth

288 mm

Package height

1458 mm

Package weight

105 kg

Packaging content

Remote control included

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Technical details

Real Time Clock (RTC)

Yes

Other features

Audio input

1

Audio output

1

Power consumption (PowerSave)

301 W

Plug and Play

Yes
