Desktop Monitor - Multisync Ea241f - 23 8in - 1920x1080 (full Hd) - Black

Introduction

Multiple Monitor Technologies
The ground breaking ControlSync technology allows users to control up to six select
MultiSync EA Series units in a multi-monitor configuration. Upon establishing one unit as the
master, you will be able to simultaneously control many performance attributes of the multimonitor setup through the master monitor. ControlSync enables multi-monitor setups of up
to six monitors and controls up to 26 settings.
In addition, ultra narrow bezels reduce the gap between displays and reduce distractions.
Select models feature DisplayPort in and out connections, allowing multiple monitors
connected to a single source output

Comprehensive Input Panel

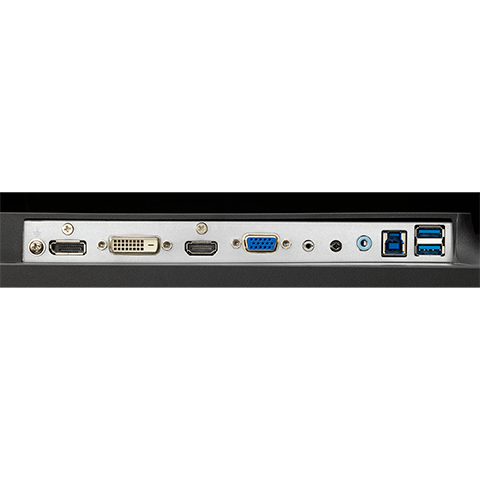

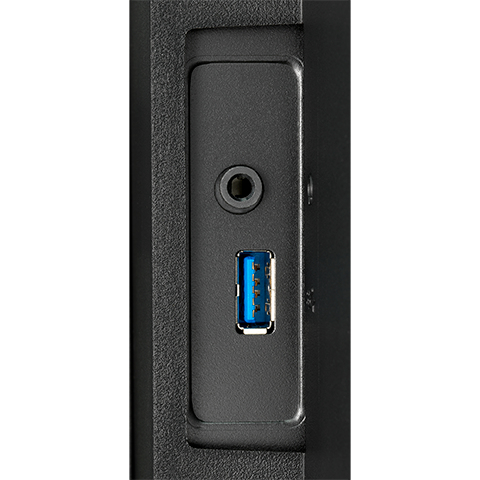

DisplayPort, HDMI, DVI-D* and 15-pin VGA*, as well as USB hubs connect you to the latest
peripherals and future-proofs your investment. The USB Type-C input provides video, audio,
data and power all through one cable, simplifying connections to mobile devices.
(EA271Q, EA271U)

Adjustable for Every Workspace

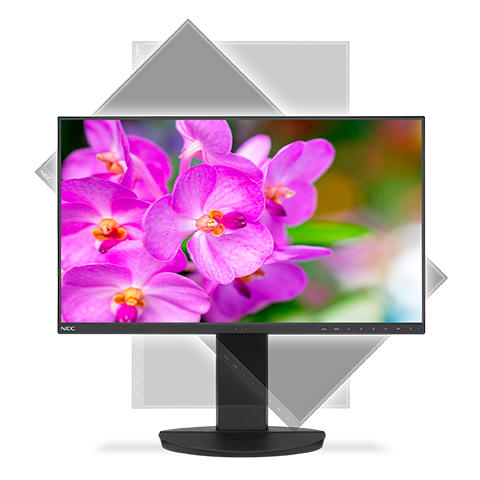

Four-way ergonomic stand boasts dual-direction pivot, tilt, swivel and height adjustment up
to 150mm to maximize your viewing comfort. In addition, Space-saving multimedia speakers
are hidden to maintain the monitor’s aesthetic appeal (headphone jack also included).

IT-Friendly Features
Customize Setting allows both users and IT administrators to set and restore preferred
settings with just one touch, contributing to a free-seating business environment.
The optional NaViSet™ Administrator 2.0 software offers an intuitive graphical interface,
allowing for easy adjustment of display settings via mouse and keyboard. NaViSet
Administrator provides all the advanced control to remotely located IT professionals.

Display

Display diagonal

61 cm (24")

Display brightness (typical)

250 cd/m²

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Response time

5 ms

HD type

Full HD

Display technology

LED

Backlight type

W-LED

Screen shape

Flat

Supported graphics resolutions

1920 x 1080 (HD 1080)

Aspect ratio

16:9

Contrast ratio (typical)

1000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.78 million colours

3D

N

Panel type

IPS

Pixel pitch

0.25 x 0.25 mm

Pixel density

93 ppi

Horizontal scan range

31.5 - 75 kHz

Vertical scan range

50 - 60 Hz

Viewable size, horizontal

17.8 cm

Viewable size, vertical

17.8 cm

DDC/CI

Y

RGB colour space

sRGB

Colour gamut

75%

NTSC coverage (typical)

72%

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Low Blue Light technology

Y

Multimedia

Built-in speaker(s)

Y

Built-in camera

N

Design

Market positioning

Business

Product colour

Black

Certification

Low Blue Light, Flicker Free, TCO

Ports & interfaces

Built-in USB hub

Y

USB hub version

3.2 Gen 1 (3.1 Gen 1)

USB upstream port type

USB Type-B

Number of upstream ports

3

VGA (D-Sub) ports quantity

1

DVI port

Y

DVI-D ports quantity

1

HDMI ports quantity

1

DisplayPorts quantity

1

HDCP

Y

Ergonomics

VESA mounting

Y

Height adjustment

Y

Pivot

Y

Swivelling

Y

Tiltable

Y

Plug and Play

Y

Power

Energy efficiency class (SDR)

C

Energy consumption (SDR) per 1000 hours

11 kWh

Power consumption (typical)

15 W

Power consumption (PowerSave)

0.29 W

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 85%

Non-operating altitude

5000 - 12192 m

Sustainability

Sustainability certificates

RoHS, N, ENERGY STAR

Weight & dimensions

Width (with stand)

498.9 mm

Depth (with stand)

45.6 mm

Height (with stand)

319.7 mm

Weight (with stand)

8.3 kg

Width (without stand)

49.9 cm

Depth (without stand)

25 cm

Height (without stand)

33.7 cm

Weight (without stand)

5.9 kg

Height (max)

48.7 cm

Packaging data

Cables included

DisplayPort,USB

Other features

On/off switch

Y

TV tuner integrated

N

Manual

Y
