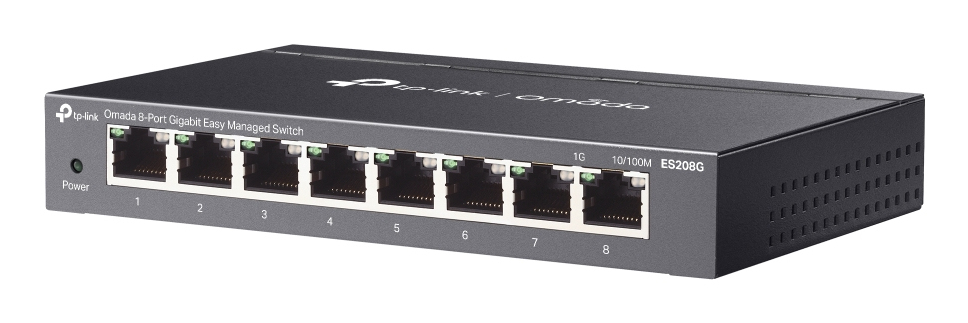

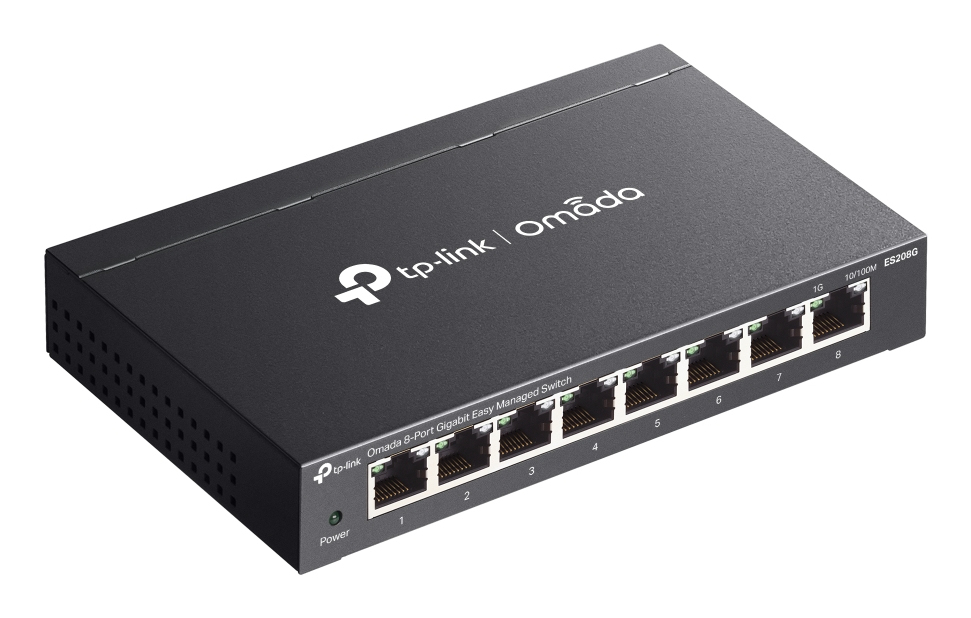

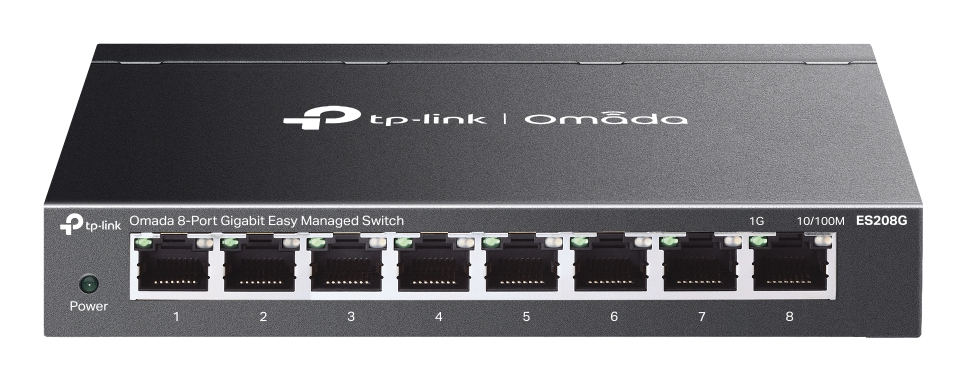

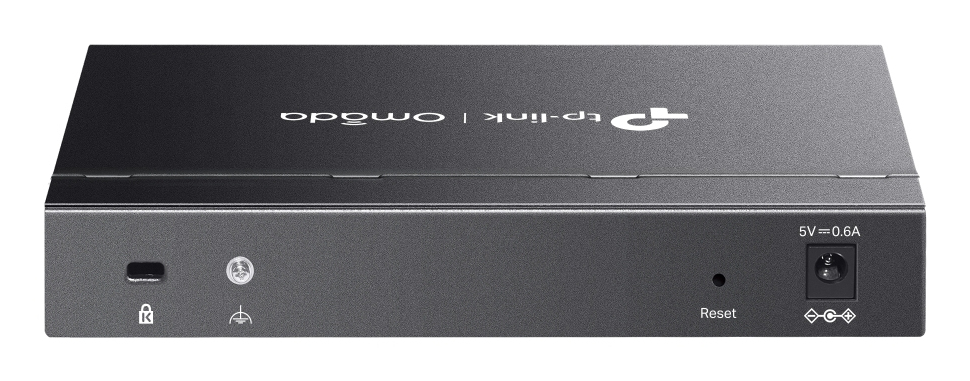

Switch Omada Es208g 8-port Gigabit Easy Managed

Introduction

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Management features

Switch type

Managed

Quality of Service (QoS) support

Yes

Cloud-managed

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q

10G support

No

Port mirroring

Yes

Flow control support

Yes

Link aggregation

Yes

VLAN support

Yes

Virtual LAN features

MTU VLAN, Port-based VLAN, Tagged VLAN

Number of VLANs

32

Data transmission

Switching capacity

16 Gbit/s

Forwarding rate

11.9 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Packet buffer memory

4 MB

Security

DHCP features

DHCP client

IGMP snooping

Yes

Design

Rack mounting

No

Stackable

No

Product colour

Black

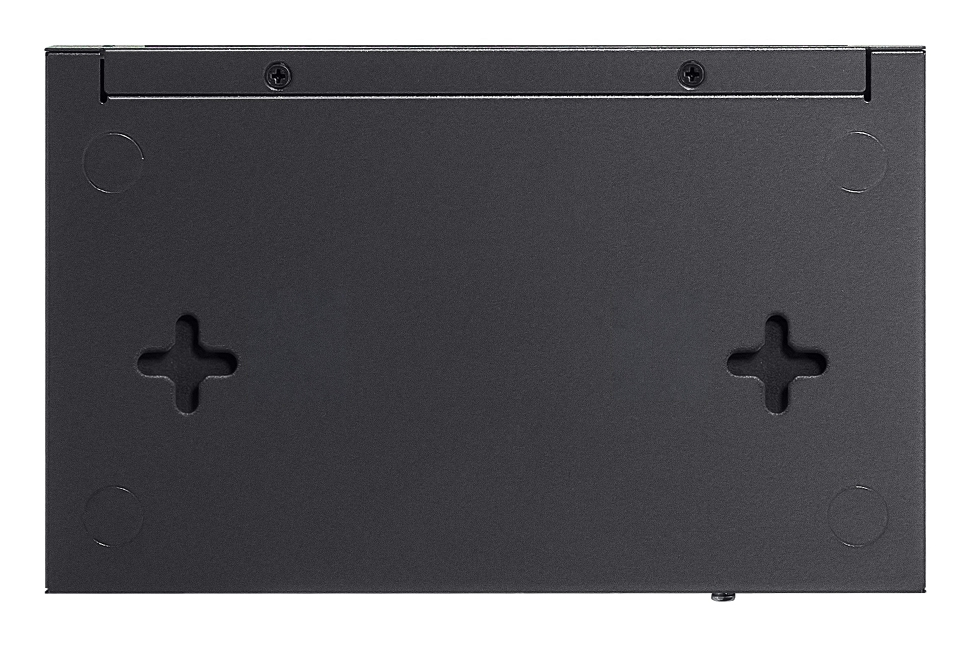

Wall mountable

Yes

Performance

Fanless

Yes

Mean time between failures (MTBF)

1141726 h

Power

Power source

DC

Power supply included

Yes

DC input voltage

5 V

Input current

0.6 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

158 mm

Depth

100.7 mm

Height

25.4 mm

Packaging content

Cables included

AC

User guide

Yes

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS
