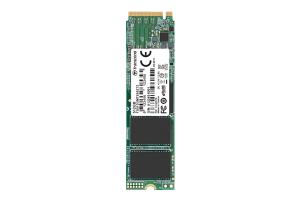

SSD - Mte652t2 - 128GB - M.2 2280 - Nvme Pci-e Gen3 X4

Introduction

Transcend's MTE652T2 M.2 SSD features the PCI Express (PCIe) Gen 3 x4 interface and is compatible with NVM Express (NVMe) 1.3 specifications, delivering unparalleled transfer speeds. The MTE652T2 features the latest 3D NAND technology for higher storage efficiency, 30µ" PCB gold finger and Corner Bond technology for enhanced durability, built-in DRAM cache for fast access, an extended operating temperature range from -20°C to 75°C, and an endurance rating of 3K Program/Erase cycles for reliable operation.

Features

NVMe version

1.3

SSD form factor

M.2

SSD capacity

128 GB

Interface

PCI Express 3.1

Memory type

3D TLC NAND

NVMe

Yes

Component for

PC/Laptop

Random read (4KB)

165000 IOPS

Random write (4KB)

235000 IOPS

Sequential read speed (CDM)

2100 MB/s

Sequential write speed (CDM)

1000 MB/s

ECC

Yes

Mean time between failures (MTBF)

3000000 h

Certification

CE/FCC/BSMI

Power

Operating voltage

3.3 V

Power consumption (read)

3.3 W

Power consumption (write)

3.3 W

Power consumption (sleep)

0.6 W

Operational conditions

Operating temperature (T-T)

-20 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Operating vibration

20 G

Operating shock

1500 G

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

80 mm

Depth

22 mm

Height

3.58 mm

Weight

9 g
