USB-c Mini Dock Single Display Hdmi 2.0 USB-a USB-c 100w 85w

Introduction

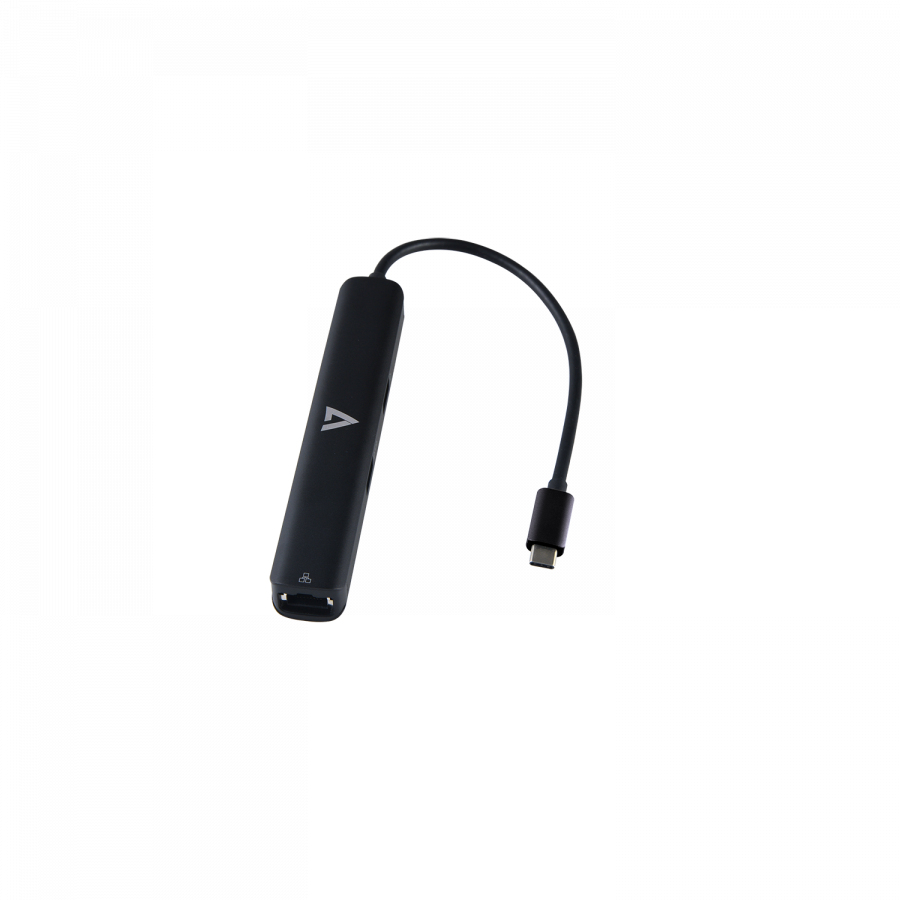

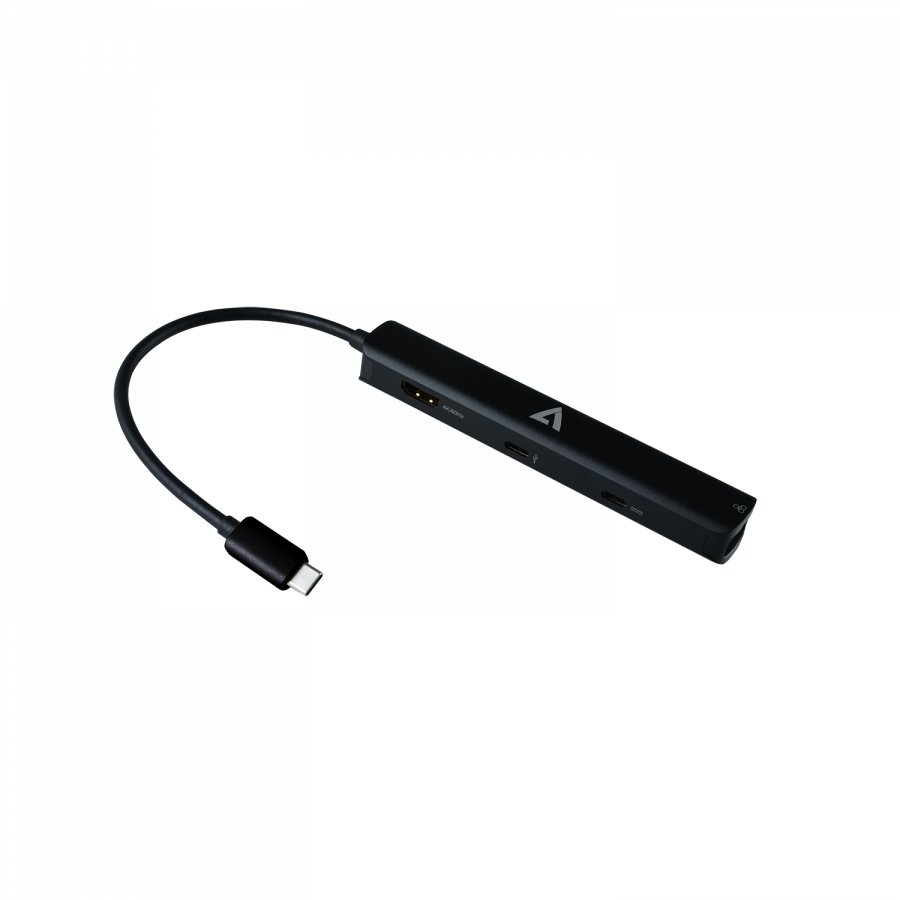

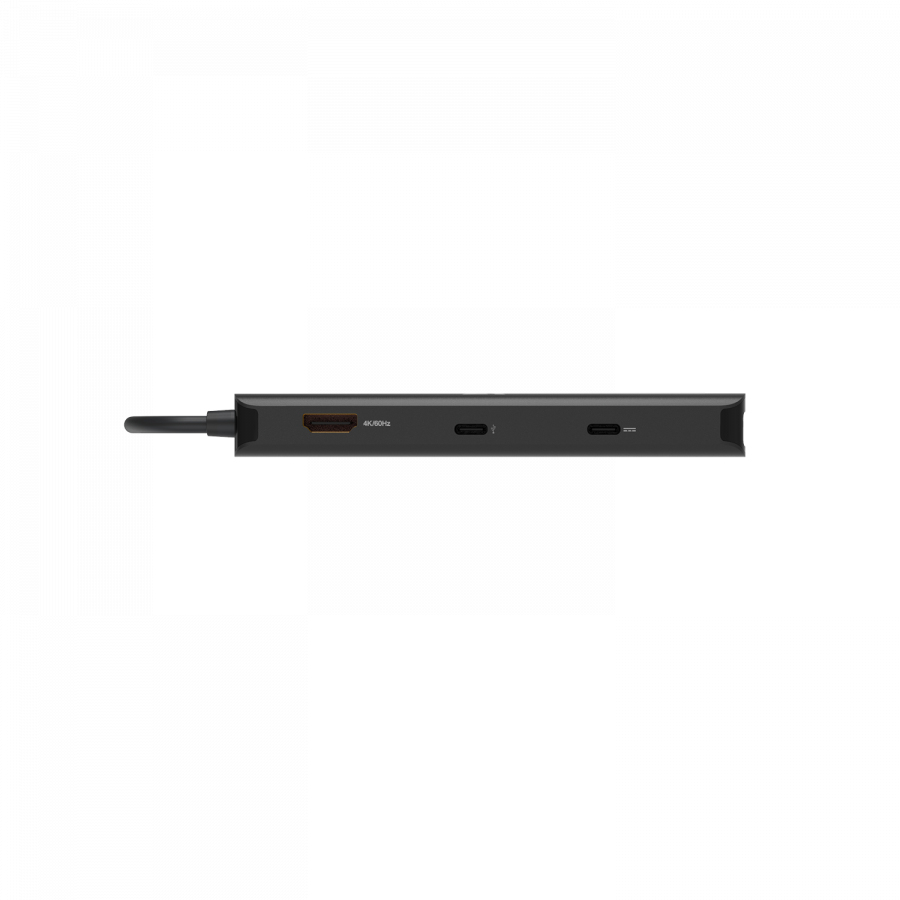

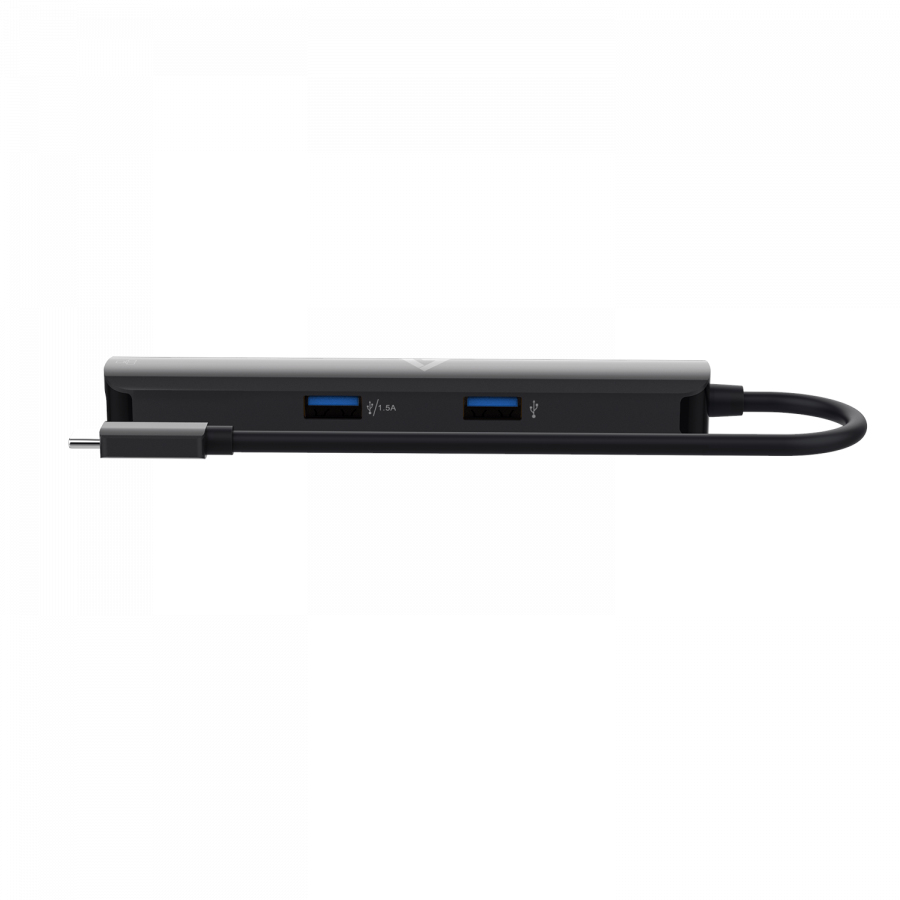

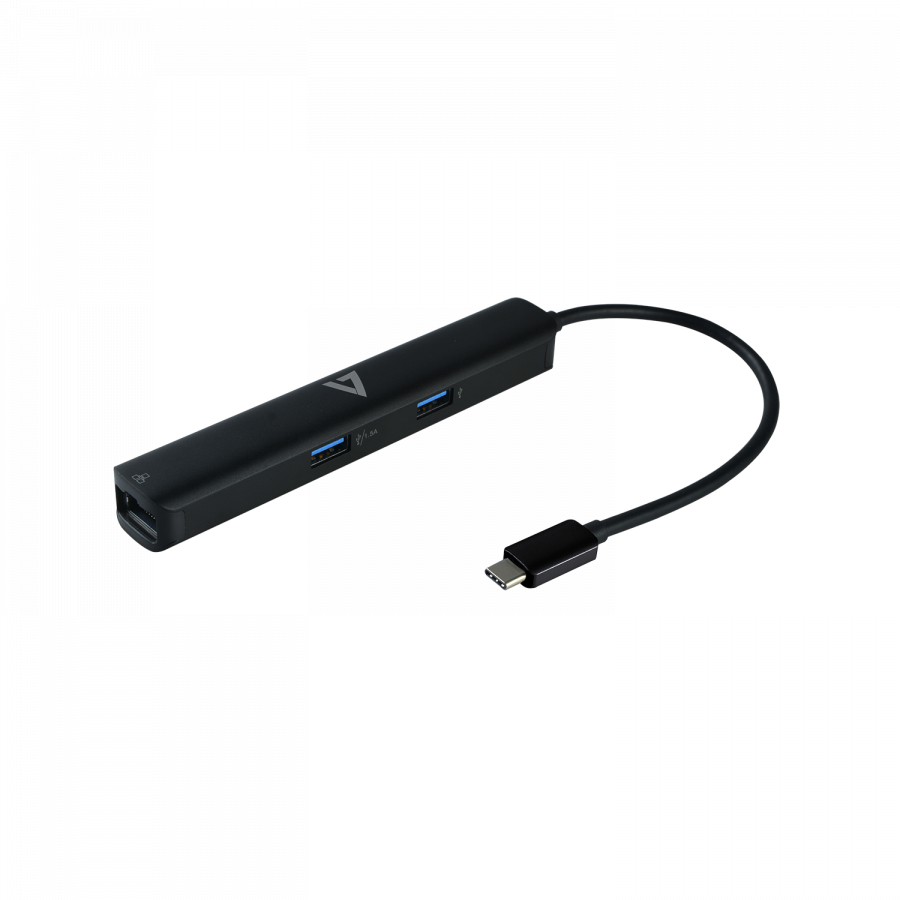

Easily add an HDMI display, extra USB ports and Gigabit Ethernet to your USB-C Alt Mode device with this USB-C Mini Dock from V7. Extend or mirror your display with the HDMI 2.0 port. Lightweight and portable – the adapter can support display resolutions up to 4K. The two USB A 3.2 Gen 1 ports provide 5Gbps data transmission and 1.5A downstream charging. The USB-C port transfers data at 5Gbps and charging with Power Delivery up to 100W (20V/5A) (85W for Device Charging). The Gigabit Ethernet port supports 10M/100M/1000M bandwidth and can be used for the Nintendo Switch. Comes with a 2 year warranty. All V7 adapters go through a rigorous testing process to ensure quality.

Ports & interfaces

Connectivity technology

Docking

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB Power Delivery

Y

USB Power Delivery up to

100 W

HDMI ports quantity

1

HDMI version

2.0

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

N

Data transfer rate

5 Gbit/s

Maximum digital resolution

3840 x 2160 pixels

Product colour

Black

Country of origin

Vietnam

Weight & dimensions

Width

22.9 mm

Depth

134.3 mm

Height

16.8 mm

Weight

620 g

Packaging data

Quantity per pack

1 pc(s)

Package width

210 mm

Package depth

160 mm

Package height

16.3 mm

Package weight

660 g
