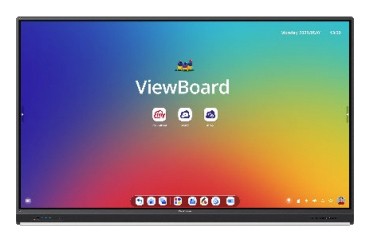

Interactive Flat Panel - ViewBoard IFP7553 - 75in TouchScreen - 3840x2160 (4K UHD) Android 13.0 (upgrade A14 Q4).IR 450 nits. 4x USB-C. NFC reader

Introduction

21st Century Classroom Collaboration
ViewBoard® Interactive Displays
ViewSonic® ViewBoard® interactive displays deliver an immersive learning experience in any classroom environment. Featuring high-accuracy touchscreens, these interactive displays deliver an intuitive digital whiteboard experience for everyone from the youngest of students to the most experienced teachers.

Every ViewSonic ViewBoard interactive display includes complimentary access to myViewBoard software to deliver an unparalleled classroom experience. With this innovative hardware and software combination, teachers can engage students like never before with dynamic lesson creation, real-time collaboration, and immersive multimedia presentations.

Display

Display diagonal

165.1 cm (65")

Display brightness

450 cd/m²

Display number of colours

1.07 billion colours

Display resolution

3840 x 2160 pixels

HD type

4K Ultra HD

Panel type

IPS

LED backlight

Yes

LED backlighting type

Direct-LED

Native aspect ratio

16:9

Response time

6.5 ms

Touchscreen

Yes

Touch technology

Multi-touch

Touchscreen type

Infrared

Number of simultaneous touchpoints

40

Touch system response time

5 ms

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Working area

1428.48 x 803.52 mm

Computer system

Operating system installed

Android

Operating system version

13

Built-in processor

Yes

Processor architecture

ARM Cortex A73 + ARM Cortex A53

Processor cores

8

User memory

128 GB

RAM capacity

16 GB

Graphics card family

ARM

Graphics card

Mali-G52

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

Speaker power

20 W

Built-in subwoofer

Yes

Subwoofer RMS power

20 W

Built-in microphone

Yes

Number of microphone arrays

8

Projector

Built-in projector

No

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

3

USB 2.0 ports quantity

1

USB 2.0 Type-A hub ports quantity

1

USB Type-C ports quantity

4

USB Type-C DisplayPort Alternate Mode

Yes

HDMI version

2.1

HDMI output ports quantity

3

DisplayPort version

1.2

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

2

Headphone connectivity

3.5 mm

RS-232 ports

1

Ergonomics

Product colour

Black

VESA mounting

Yes

Panel mounting interface

800 x 400 mm

Wall mountable

Yes

Power

Power consumption (max)

474.8 W

Power consumption (typical)

216.04 W

Power consumption (off)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Weight & dimensions

Width

1707 mm

Depth

118.4 mm

Height

1059.2 mm

Weight

51.7 kg

Packaging data

Package width

1900 mm

Package depth

225 mm

Package height

1160 mm

Package weight

63.9 kg

Quantity per pack

1 pc(s)

Packaging content

Manual

Yes

USB cable length

3 m

Cables included

AC, HDMI, USB

Remote control included

Yes

Mounting kit

Yes

Number of stylus pens

2
