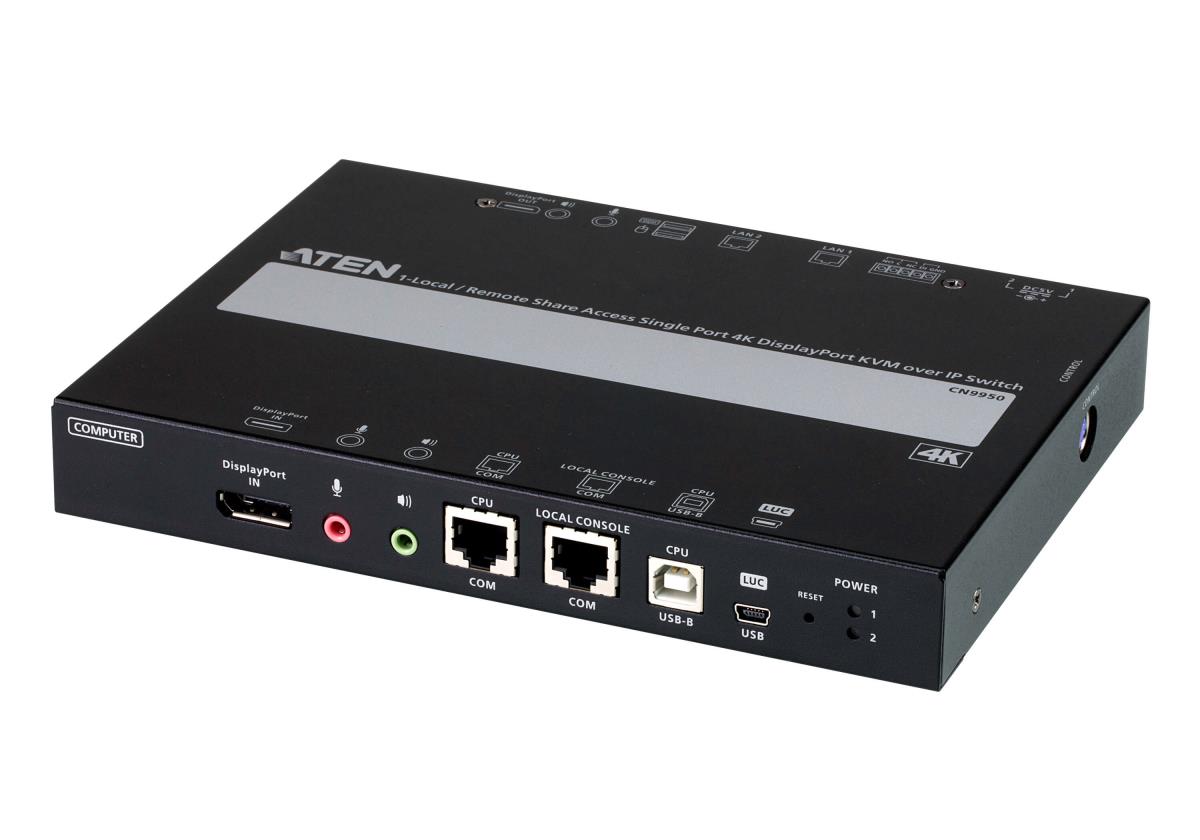

1-port 4k DisplayPort KVM Over Ip Switch With Local Or Remote Access

Introduction

1x CN9950 4K DisplayPort KVM over IP Switch
1x DisplayPort cable
1x USB cable (USB-A to USB-B)
1x USB cable (USB-A to Mini-USB)
1x power adapter
1x control terminal block
1x mounting kit
1x foot pad set
1x user instructions

Ports & interfaces

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

2

USB 2.0 Type-B ports quantity

1

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Console USB ports quantity

2

USB connector type

Mini-USB B

PS/2 ports quantity

1

Serial port type

RJ-45

Serial ports quantity

2

Audio connections

Y

Headphone outputs

2

Number of microphone inputs

2

DC-in jack

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

2

Performance

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Video bandwidth

30 Hz

Design

Product colour

Black

Housing material

Metal

LED indicators

Y

Display

Built-in display

N

Power

Power source

DC

DC input voltage

5 V

Power consumption (typical)

9.76 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

149.3 mm

Depth

200 mm

Height

28.5 mm

Weight

1.25 kg

Packaging data

Package width

98 mm

Package depth

325 mm

Package height

210 mm

Package weight

1.67 kg

Packaging content

Cables included

DisplayPort, USB, USB Type-A to USB Type-B

Manual

Y

AC adapter included

Y

Logistics data

Master (outer) case net weight

6.25 kg

Master (outer) case width

342 mm

Master (outer) case length

512 mm

Master (outer) case height

232 mm

Master (outer) case gross weight

8.98 kg

Products per master (outer) case

5 pc(s)
