16x16 1080p Hdmi Matrix Switch With Scaler

Introduction

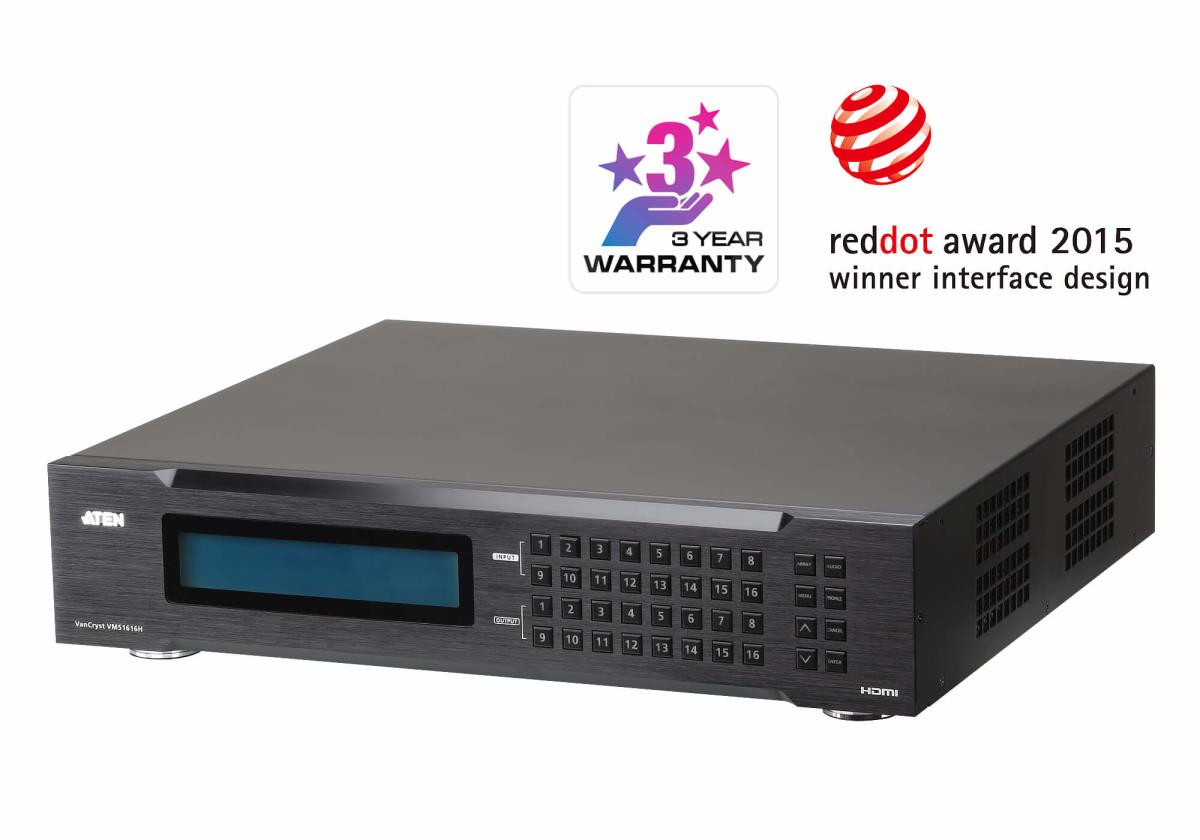

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x Rack Mounting Kit
1x User Instructions

Features

Product type

Scaling matrix switcher

Data transfer rate

6.75 Gbit/s

Maximum resolution

1920 x 1080 pixels

HDCP

Y

HDCP version

1.4

3D

Y

Extended display identification data (EDID)

Y

EDID management

Y

Design

Housing colour

Black

Housing material

Metal

Rack mounting

Y

Rack capacity

2U

LED indicators

Y

Ports & interfaces

HDMI input ports quantity

16

HDMI output ports quantity

16

RJ-45 input ports

1

RS-232 ports

1

Power

Power consumption (max)

124.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Input current

1 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Logistics data

Products per master (outer) case

1 pc(s)

Master (outer) case gross weight

9.79 kg

Master (outer) case length

575 mm

Master (outer) case width

505 mm

Master (outer) case height

175 mm

Master (outer) case net weight

8.09 kg

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

381.8 mm

Depth

432.4 mm

Height

88 mm

Weight

8.09 kg

Package width

505 mm

Package depth

575 mm

Package height

175 mm

Package weight

9.79 kg

Packaging content

Cables included

AC

Rack mount kit

Y
