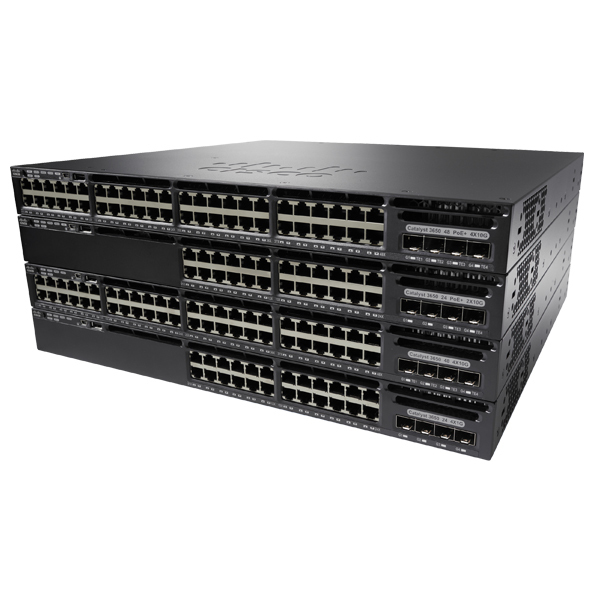

Catalyst 3650-48fws-s Switch L3 Managed 48x 10/100/1000 (poe+) + 4x Sfp Desktop Rack Poe+

Introduction

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.

Management features

Switch type

Managed

Switch layer

L3

Quality of Service (QoS) support

Y

Web-based management

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

48

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

4

Network

Networking standards

IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G support

N

Full duplex

Y

IP routing

Y

Link aggregation

Y

Rate limiting

Y

Auto MDI/MDI-X

Y

Spanning tree protocol

Y

VLAN support

Y

Number of VLANs

4094

Data transmission

Switching capacity

176 Gbit/s

MAC address table

32000 entries

Jumbo frames support

Y

Security

DHCP features

DHCP server

Access Control List (ACL)

Y

IGMP snooping

Y

SSH/SSL support

Y

Multicast features

Multicast support

Y

Design

Rack mounting

Y

Stackable

Y

Form factor

1U

Product colour

Black

LED indicators

Y

Safety

UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM

Performance

Memory type

DRAM

Internal memory

4096 MB

Flash memory

2000 MB

Noise level

48 dB

Mean time between failures (MTBF)

383760 h

Power

Redundant power supply (RPS) support

Y

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)

Y

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 96%

Operating altitude

0 - 1500 m

Non-operating altitude

0 - 5000 m

Weight & dimensions

Width

445 mm

Depth

448 mm

Height

44 mm

Other features

Bandwidth

160 Gbit/s
