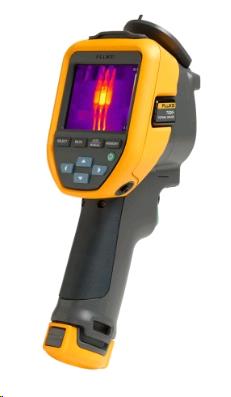

Fluke TiS20+ MAX Thermal Imager; 120x90; 9HZ

Introduction

Easy-to-use and built to withstand harsh working conditions, this thermal imager is an ideal tool for electricians, HVAC/R, and maintenance technicians. With an infrared resolution of 120 x 90 (10,800 pixels) and a frame rate of 9 Hz, this camera can measure temperatures ranging between -4 to 302°F (-20 to 150°C).
Easy-to-use and built to withstand harsh working conditions, this thermal imager is an ideal tool for electricians, HVAC/R, and maintenance technicians. With an infrared resolution of 120 x 90 (10,800 pixels) and a frame rate of 9 Hz, this camera can measure temperatures ranging between -4 to 302°F (-20 to 150°C).

Applications

• Commercial electricians
• HVAC/R
• Maintenance technicians
• Equipment troubleshooting
• Preventive and predictive maintenance
• Building diagnostics
• Research and development

Features

• 120 x 90 infrared resolution (10,800 pixels)
• 5 hours battery life
• Continuous touchscreen IR-Fusion™, slide your finger across the screen to adjust the setting
• 3.5" LCD touchscreen display for easy troubleshooting
• Automatically sort images with Fluke Connect Asset Tagging
• Can withstand drop up to 2 meter
• Water and dust resistant - IP54 enclosure rating
• IR-Fusion™ - combines visible and infrared images for faster inspections and better reporting. With a single touch, you can scan from full infrared to full visible images to pinpoint the location of an issue

Specifications

Key Specifications

Infrared Resolution	120 x 90 (10,800 pixels)
IFOV (Spatial Resolution)	7.6 mRad, D:S 130:1
Field of View	50 x 38°
Minimum Focus Distance	20" (50 cm)
Focus System	Fixed focus
Data Transfer	Mini USB used to transfer image to PC
Wireless Connectivity	Yes, (802.11 b/g/n (2.4 GHz))
Fluke Connect Instant Upload	Yes, connect your camera to your building's WiFi network (802.11 b/g/n (2.4 GHz)), and images taken automatically upload to the Fluke Connect system or your local server for storage and viewing on your PC
Image Quality
Display	3.5" LCD touchscreen (landscape)
Display Resolution	320 x 240 LCD
Level and Span	Smooth auto and manual scaling
IR-Fusion Technology	AutoBlend continuous 0 to 100%. Adds the context of the visible details to your infrared image
Thermal Sensitivity (NETD)	60 mK
Frame Rate	9 Hz
Data Storage and Image Capture
Memory	Internal 4GB memory
Image Capture, Review, Save Mechanism	One-handed image capture, review, and save capability
Image File Formats	Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files
Software	Fluke Connect desktop software - full analysis and reporting software with access to the Fluke Connect system
Export File Formats with Software	.bmp, .dib, .jpg, .tif, .tiff
Temperature Measurement
Temperature Measurement Range (Not Calibrated Below 0°C)	-4 to 752°F (-20 to 400°C)
Accuracy	Target temperature at or over 32°F: Accuracy: ±35.6°C or ±2% at 77°C, whichever is the greater Target temperature at or over 0°C: Accuracy: ±2°C or ±2% at 25°C, whichever is the greater
On-Screen Emissivity Correction	Yes, material table
On-Screen Reflected Background Temperature Compensation	Yes
Center-Point Temperature	Yes
Spot Temperature	Hot and cold spot markers
Color Palettes
Standard	6: Ironbow, blue-red, high contrast, amber, hot metal, grayscale
General Specifications
Temperature	Operating: 14 to 122°F (-10 to 50°C) Storage: -40 to 158°F (-40 to 70°C)
Relative Humidity	95% non-condensing
Infrared Spectral Band	8 to 14 μm (long wave)
Safety	IEC 61010-1: Pollution Degree 2
Electromagnetic Compatibility	EN 61326-1, CISPR 11: Group 1, Class A
US FCC	CFR, Part 15C
Vibration and Shock	10 to 150 Hz, 0.15 mm, IEC 60068-2-6; 30 g, 11 ms, IEC 60068-2-27
Drop	Engineered to withstand 6.56' (2 m) drop
Battery	Type: Lithium ion smart battery pack with five-segment LED display to show charge level Life: ≥5 hours continuous (without WiFi) Charging time: 2.5 hours to full charge AC operation: AC operation with included power supply (100 to 240 V AC, 50/60 Hz) Power saving: Automatic shutdown: 5, 10, 15 and 20 minutes or never
Enclosure Rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Supported Languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
Dimensions	10.5 x 4.0 x 5.7" (26.7 x 10.1 x 14.5 cm)
Weight	1.6 lbs (0.72 kg)
