STARTECH.COM
Pci-e Serial Adapter Card 8 Port Low Profile

Pci-e Serial Adapter Card 8 Port Low Profile

Part Number:
PEX8S950LP
Language:
UK
 Without VATWith VAT
Base Price:€174,20€210,79
Total:€174,20€210,79

Introduction

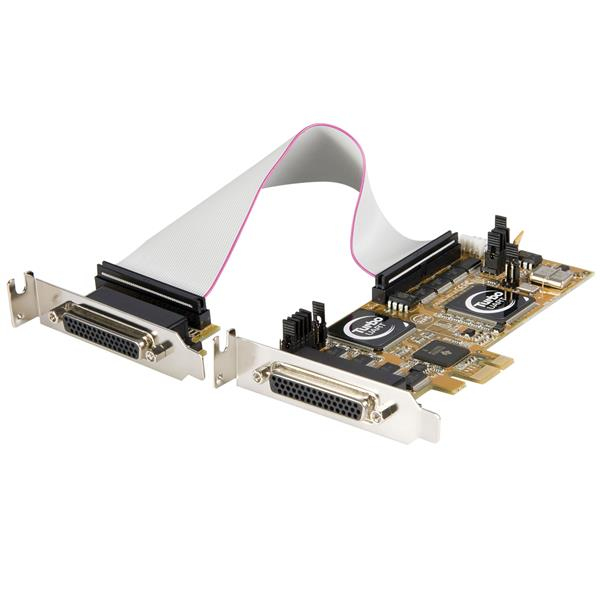

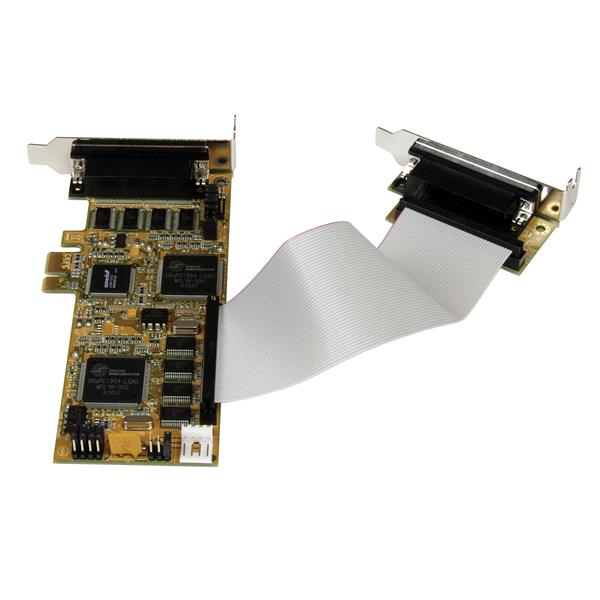

Add 8 RS-232 serial ports to your computer via a single low profile PCI Express slot

The PEX8S950LP 8 Port PCI Express Low Profile Serial Adapter Card with dongle cables included offers 8 RS 232 Serial connections via a single PCI Express slot, with data rates up to 921Kbps. Perfect for use with a broad variety of serial peripherals including printers, scanners, industrial controls and more.

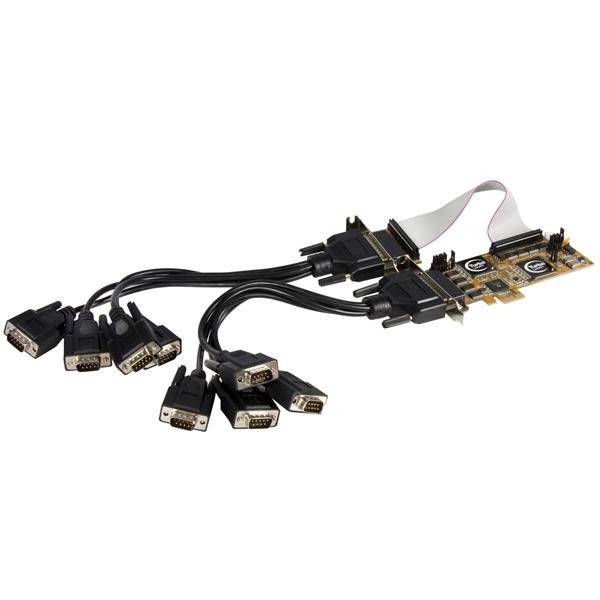

A complete 8 port RS232 Serial card solution, the adapter includes 2 breakout cables – each with 4 DB9 connectors for a total of 8 ports. The perfect choice for adding several additional ports when space is at a premium, the serial adapter card is designed to fit in small/micro form factor computer cases. Plus, this versatile card also includes 2 standard profile brackets for compatibility with full size cases.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low profile brackets and ships complete with 2 standard profile brackets for compatibility with almost any computer case
- Easy to install and use with full step-by-step instructions for hassle-free integration into your system

Ports & interfaces

Host interface

PCIe

Output interface

Serial

Serial ports quantity

8

Serial interface type

RS-232

Design

Internal

Y

Certification

TAA, FCC, CE

Features

Chipset

PLX/Oxford - OXmPCI952

Baud rate

921.6 Kbit/s

FIFO (First In, First Out)

128 B

Data bits

5,6,7,8

Stop bits

1,1.5,2

Parity bit

Even, N, Odd

Flow Control type

RTS/CTS,XON/XOFF

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

System requirements

Windows operating systems supported

Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Linux operating systems supported

Y

Server operating systems supported

Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

20 mm

Depth

157 mm

Height

80 mm

Weight

559 g

Packaging data

Drivers included

Y

Manual

Y

Package width

159 mm

Package depth

285 mm

Package height

52 mm

Package weight

720 g

Logistics data

Products per master (outer) case

50 pc(s)

Master (outer) case width

755 mm

Master (outer) case length

445 mm

Master (outer) case height

240 mm
