Wireless Travel Router Tl-wr1502x Wi-Fi6 Ax1500

Introduction

Travel Light. Surf Fast.
AX1500 Wi-Fi 6 Travel Router

Enjoy Flawless Connection Everywhere
TL-WR1502X, with its versatile modes including Router, USB Tethering, 3G/4G USB Modem, Hotspot, Access Point, Range Extender, and Client, enables flexible WiFi setup for homes, hotel stays, and travel.

Impressively Fast. Impossibly Light.

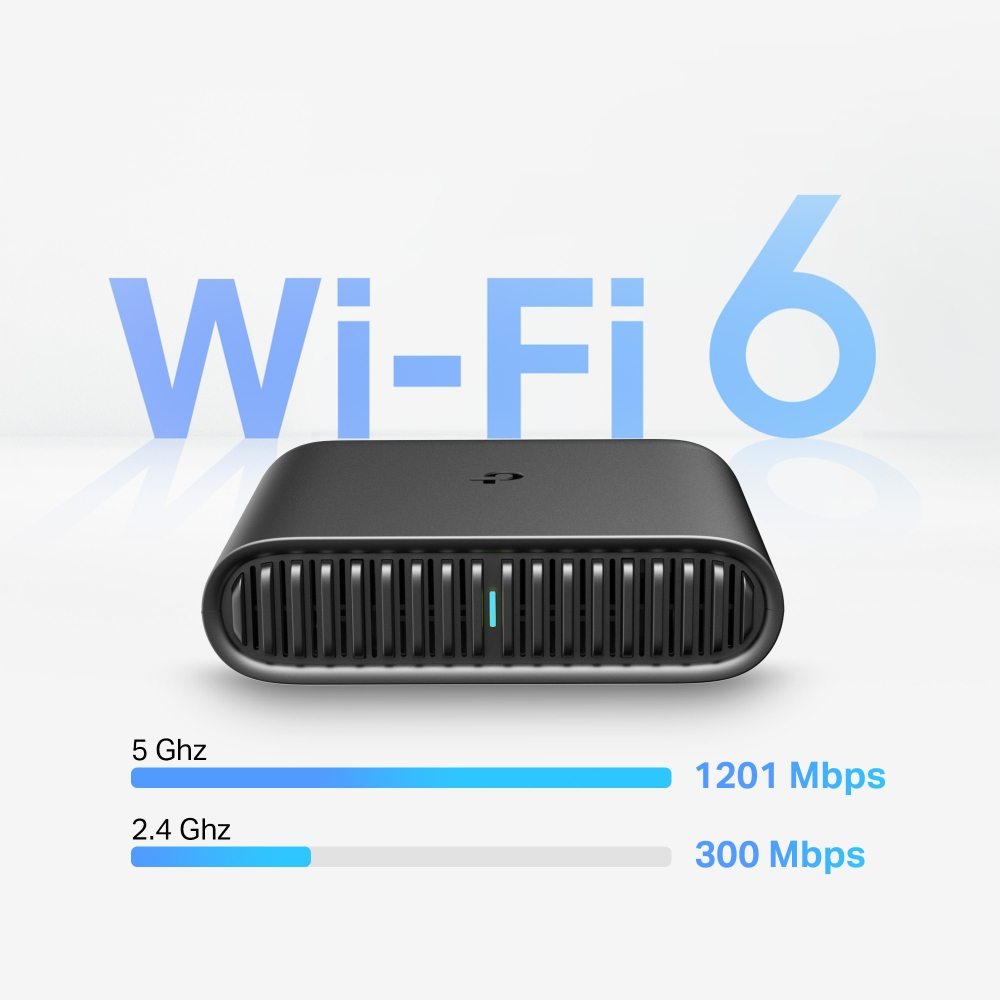

Merging WiFi 6 technology, TL-WR1502X delivers 1.5 Gbps Wi-Fi speeds for uninterrupted video streaming, downloading, and online gaming all at the same time.

24/7 Secure Surfing with VPN Encryption
VPN Clients and Server Supported
Supporting OpenVPN and WireGuard®, TL-WR1502X maintains your network's privacy and security, whether you're working remotely abroad or using public WiFi. This device can simultaneously run a VPN and regular internet connections, offering protection and flexibility.

Your Tacit Companion on the Road
Say Goodbye to Messy Files and Cable Clutter

- Your Digital Filing Cabinet

By plugging into an external drive, keep all your important files in one secure hub accessible to every device on your network.

- Your Flexible Mobile Router

The Type-C interface let you flexibly turn it into a mobile router with a power bank. And, you can charge other devices with the same cable you use to charge the router.

WAN connection

Ethernet WAN

Yes

DSL WAN

No

3G/4G USB modem compatibility

Yes

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

WLAN data transfer rate (max)

1500 Mbit/s

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (second band)

1201 Mbit/s

Network

Ethernet LAN

Yes

Ethernet LAN interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Port forwarding

Yes

Port triggering

Yes

Dynamic DNS (DDNS)

Yes

Number of guest networks (2.4 GHz)

1

Number of guest networks (5 GHz)

1

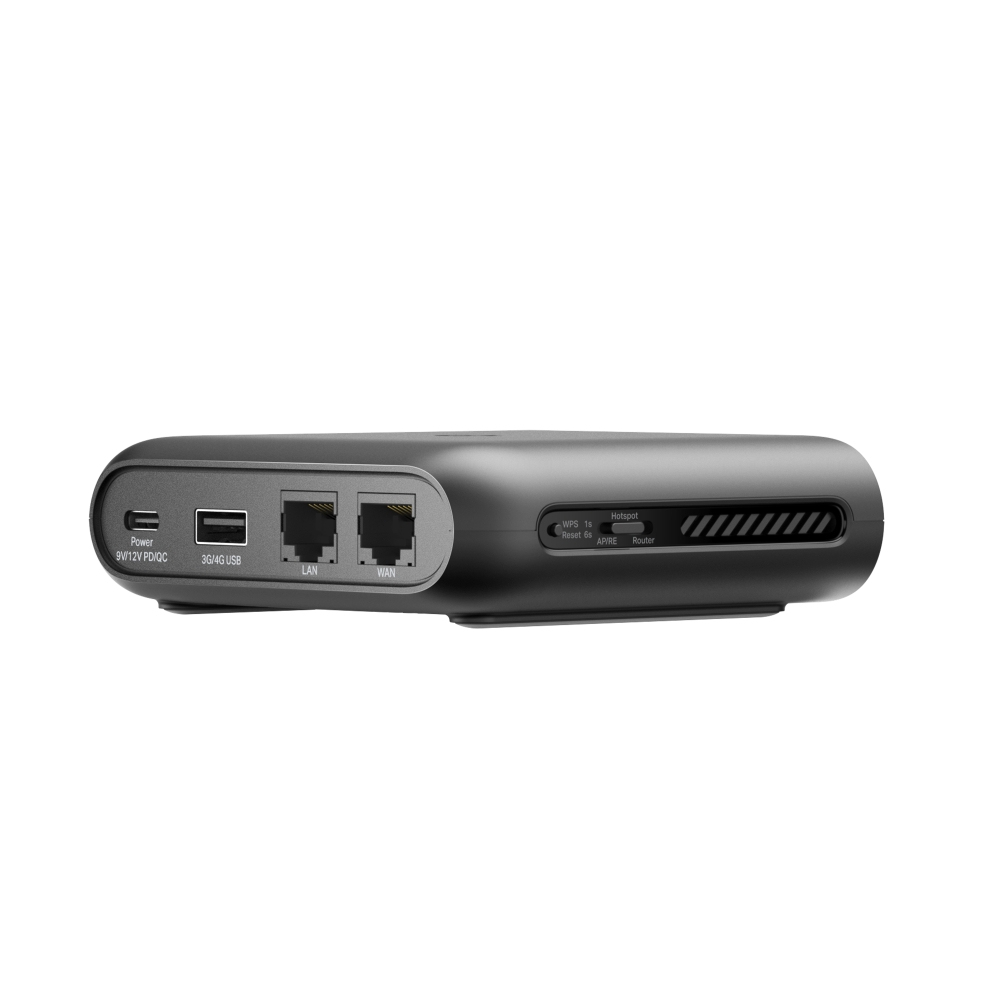

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB port

Yes

USB 2.0 ports quantity

1

Management features

Web-based management

Yes

Quality of Service (QoS) support

Yes

WPS push button

Yes

Security

Security algorithms

WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3-Personal

Firewall

Yes

Firewall security

SPI Firewall

Access Control List (ACL)

Yes

Protocols

DHCP client

Yes

DHCP server

Yes

Universal Plug and Play (UPnP)

Yes

Design

Product colour

Black

Indication light

Yes

Product type

Portable router

Antenna

Antenna design

Internal

Power

Power source type

USB

Output voltage

12 V

Output current

1.5 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

104 mm

Depth

90 mm

Height

28 mm

Packaging data

Package type

Box
