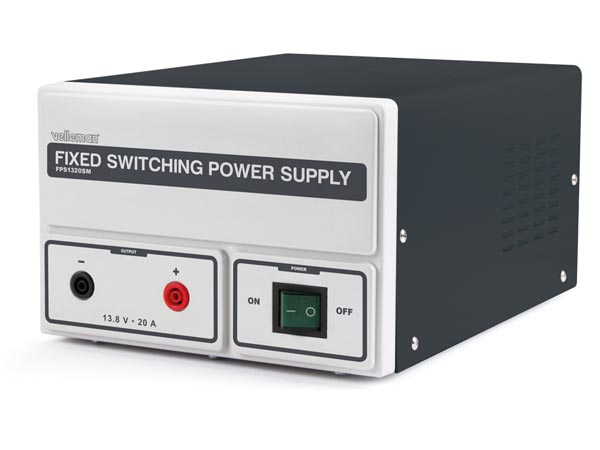

Fixed Switching Power Supply 13.8v / 20a

Part Number:

FPS1320SM

Language:

UK

	Without VAT	With VAT
Base Price:	€85,87	€103,90
Total:	€85,87	€103,90

Description
Options

Introduction

- input voltage: 230 VAC 50 Hz
- output voltage: 13.8 VDC max.
- output current: 20 A
- ripple voltage: =/< 100 mVp-p
- dimensions: 210 × 130 × 260 mm
- weight: 1.9 kg
- fuse: T5

Power

AC input voltage

230 V

AC input frequency

50 Hz

Input current

20 A

Power protection features

Under voltage

Design

Product colour

Grey

LED indicators

Y

On/off switch

Y

Weight & dimensions

Width

210 mm

Depth

130 mm

Height

260 mm

Weight

1.9 kg

Other features

Manual

Y

No options for this product
