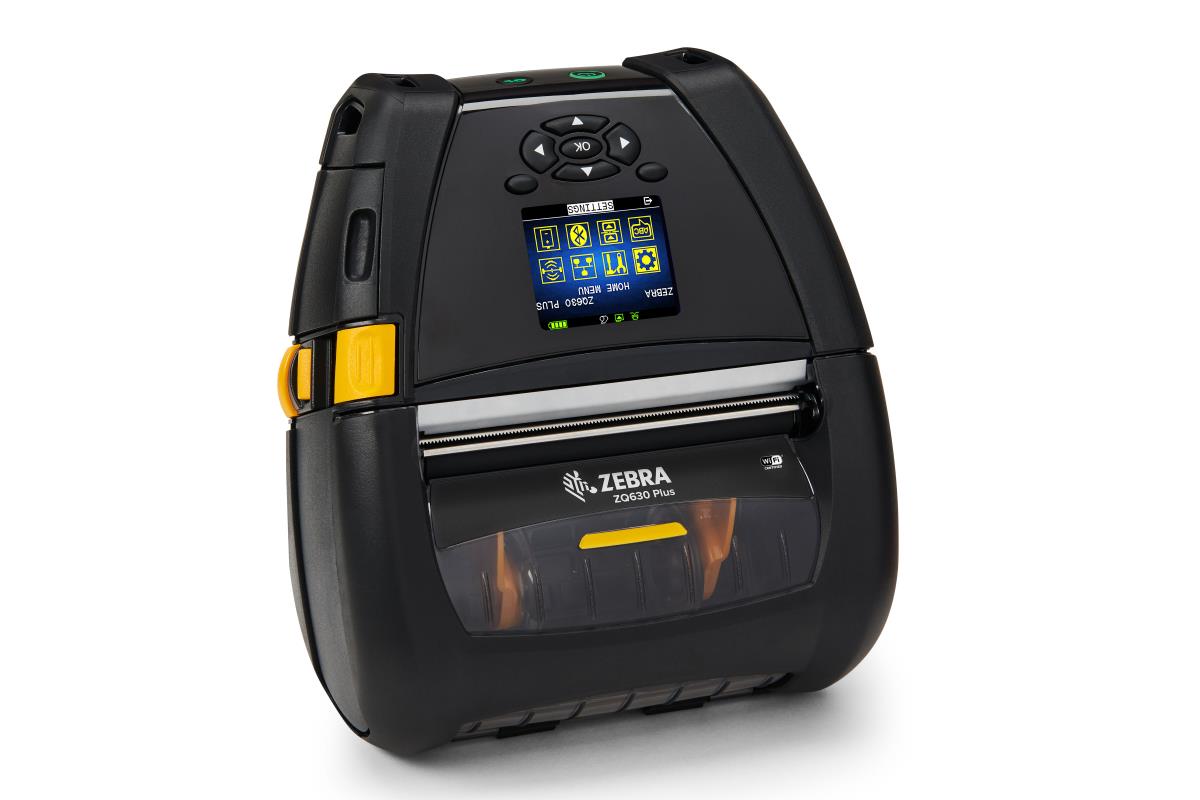

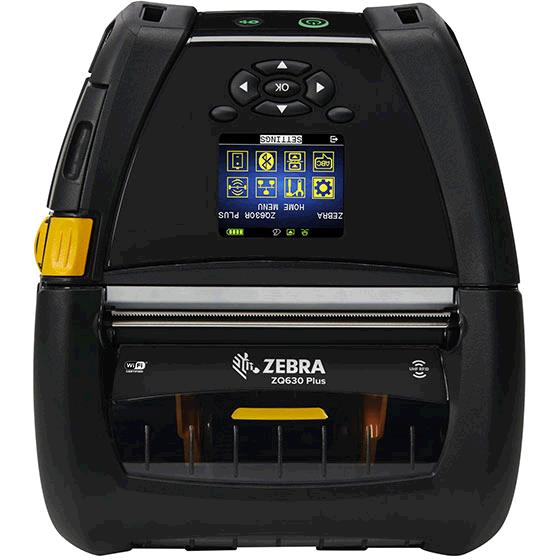

Zq630 Plus Rfid - Mobile Printer - Direct Thermal - 104mm - USB / Serial / Wifi Including Belt Clip, Shoulder Strap, Battery, 6800mah

Introduction

Always on the edge of innovation, Zebra offers premium RFID mobile printers to give your workers a leading advantage. The ZQ630 Plus RFID rounds out Zebra’s ZQ600 Plus Series printers with advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. Save time, reduce errors, print and encode RFID labels and tags on the spot with ease. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity–6600 mAh–power every minute of the longest shift. The instant wake-up feature on Wi-Fi™ or Bluetooth® ensures the ZQ630 Plus RFID never sleeps on the job. And, the ZQ630 Plus RFID is easier to integrate, manage, setup and secure, thanks to Zebra’s Link-OS® printer operating system and powerful Print DNA™ suite of applications, utilities and developer tools.

Printing

Print technology

Direct thermal

Maximum resolution

203 x 203 DPI

Print speed

115 mm/sec

Maximum printing width

10.4 cm

Paper handling

Supported paper width

112 mm

Maximum media length

81.3 cm

Ports & interfaces

Connectivity technology

Wired & Wireless

Ethernet LAN

No

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 5 (802.11ac)

Bluetooth

Yes

Bluetooth version

4.2

Bluetooth Low Energy (BLE)

Yes

USB port

Yes

RS-232 ports

1

Performance

Internal memory

256 MB

Flash memory

512 MB

Built-in barcodes

AZTECCODE, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, Macro PDF417, MaxiCode, PDF417, Plessey, QR Code, TLC39, UPC-A, UPC-E

Built-in RFID module

Yes

Design

Product colour

Black

Display resolution

288 x 240 pixels

Power

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

6600 mAh

Power source type

Battery

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

-20 - 50 °C

Storage temperature (T-T)

-25 - 65 °C

Weight & dimensions

Width

82.5 mm

Depth

165.1 mm

Height

186.7 mm

Weight

1.1 kg
