ACT

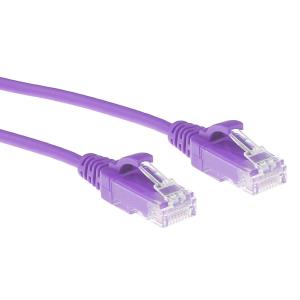

Slimline Patch Cable - CAT6 - U/UTP - 15cm - Purple

Slimline Patch Cable - CAT6 - U/UTP - 15cm - Purple

Part Number:
DC9330
Language:
UK
 Without VATWith VAT
Base Price:€2,45€2,96
Recupel:+ €0,06+ €0,07
Total:€2,51€3,04

Introduction

CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords. The bending radius is lower in comparison with regular patchcords. All this results in a better airflow in the server rack/network cabinet.

Although ISO/IEC and the TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables. This results in a higher attenuation, particularly at higher frequencies.

ACT advises a maximum bundle size of 24 cables in PoE applications. In this case the temperature of the cables, that are delivering PoE deployments, will not increase. The standard, ANSI TSB-184-A, limits the maximum temperature increasement, to less than 15 degrees Celsius above the ambient temperature, for the center cable in a bundle.

Features

Product colour

Purple

Cable length

0.15 m

Cable standard

Cat6

Cable shielding

U/UTP (UTP)

Connector 1

RJ-45

Connector 2

RJ-45

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Gold

Jacket material

Low smoke zero halogen (LSZH)

Cable shape

Round

AWG wire size

28

Frequency

250 MHz

Snagless cable boot

Y

Operational conditions

Operating temperature (T-T)

-20 - 60 C

Weight & dimensions

Outer diameter

3.8 mm

Packaging data

Quantity per pack

1 pc(s)

No options for this product
