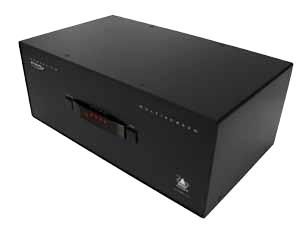

Pro Multiscreen 4 Port USB2.0 Dual Head DVI KVMa Switch (av4pro-DVI-dual-uk)

Introduction

Part of the ADDERView® PRO range, the AV4PRO DVI is KVMA switch designed to enable four multi-head computers to be controlled from a single KVM console. This four-port switch is available in eight-port (AV8PRO), Multiscreen, VGA or DisplayPort variants.

- Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen
- High resolution video: the dual link DVI capabilities enable users to work at very high resolutions including 2K (2048 x 1080) on each head or WQXGA (2560 x 1600) per head, with a choice of digital or analogue
- USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
- Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones
- Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote
- Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices
- ‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port

Ports & interfaces

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-I

DVI-I ports quantity

10

USB 2.0 Type-B ports quantity

4

Console ports

3.5mm headphone, DVI-I, USB A

Console USB ports quantity

4

Audio connections

Y

Network

Ethernet LAN (RJ-45) ports

1

Performance

HD type

WQXGA

Maximum resolution

2560 x 1600 pixels

Design

Rack mounting

Y

Rack capacity

2.5U

Product colour

Black

Housing material

Metal

Certification

CE, FCC

Display

Built-in display

Y

Power

Power source

AC

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

DC input voltage

5 V

Input current

2 A

Logistics data

Harmonized System (HS) code

85176200
