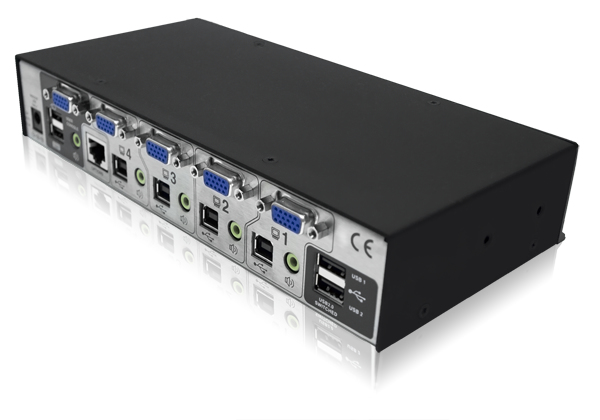

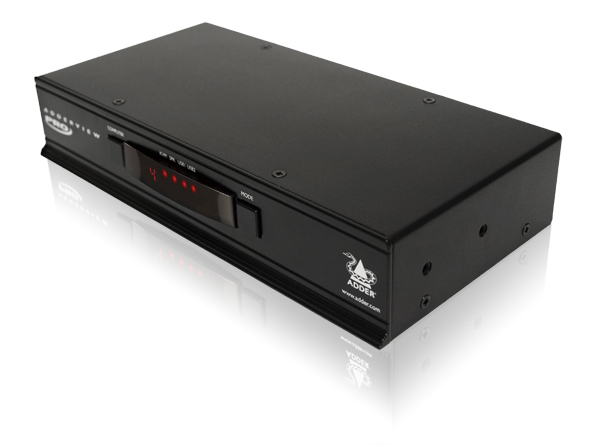

ADDER ADDERView 4 PRO VGA KVM switch Rack mounting Black

Introduction

The ADDERView PRO is a professional grade KVMA switch delivering ultimate flexibility for users who wish to share a high resolution screen and modern USB peripherals between a multiplicity of computers.

The AV4PRO-VGA is designed to enable four computers to be controlled from a single high resolution KVM console using high definition analogue VGA video links. The switch makes use of Adder's True Emulation technology which enables USB HID devices to be continuously emulated to each computer. This unique technology enables instantaneous and reliable hotkey switching whilst also supporting the extra keys and features of enhanced keyboards and mice.

Furthermore, the ADDERView Pro includes two independently switchable USB 2.0 channels and an audio channel, giving the user the flexibility to attach selected peripherals to different computers.

Ports & interfaces

Number of computers controlled

1

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

VGA (D-Sub) ports quantity

4

USB 2.0 ports quantity

8

DC-in jack

Y

Design

Rack mounting

Y

Rack capacity

1U

Product colour

Black

Housing material

Metal

Certification

CE, FCC

Display

Built-in display

N

Power

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

External power adapter

Y

USB powered

N

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

233 mm

Depth

115 mm

Height

44 mm

Packaging content

AC adapter included

Y

Other features

Connectivity technology

Wired

Compatible operating systems

Windows, DOS, Linux, Unix, BSD, Sun OS, Mac OS, NetWare
