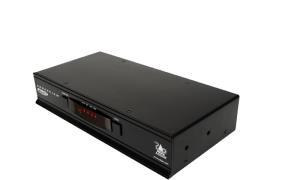

Adderview Pro DisplayPort KVM Switch

Introduction

Part of the ADDERView® PRO range, the AV4PRO DisplayPort is designed to enable four computers equipped with DisplayPort technology to be controlled from a single KVM console. This four-port switch is also available in DVI or VGA variants.

High resolution video: supports 2560 x 1600 resolution at 60Hz refresh rate and 10 bits per color, 1920 x 1200 resolution at 120Hz refresh rate, and Full HD monitors at 1920 x 1080 resolution and 60Hz refresh rate at 12 bits per color without latency, all over standard cables

Extended DDC EDID profile: ensures that the graphics card is always optimized to work with your screen

USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers

Independent USB device selection: switching options enable the operator to use the keyboard and mouse on one computer whilst the USB peripherals are connected to other ones

Channel selection options: switch using selectable keyboard hotkeys, three button mice or the front panel controls, or add a RC4 remote

Broad USB 2.0 HID Support: a range of USB devices can be connected, including printers, scanners, and non-standard human interface devices

‘Options’ port for control, synchronisation and upgrade: port allows remote switching using simple ASCII codes; units to be switched in synchrony to create a multi video head switching system; and firmware upgrades, all through the same port

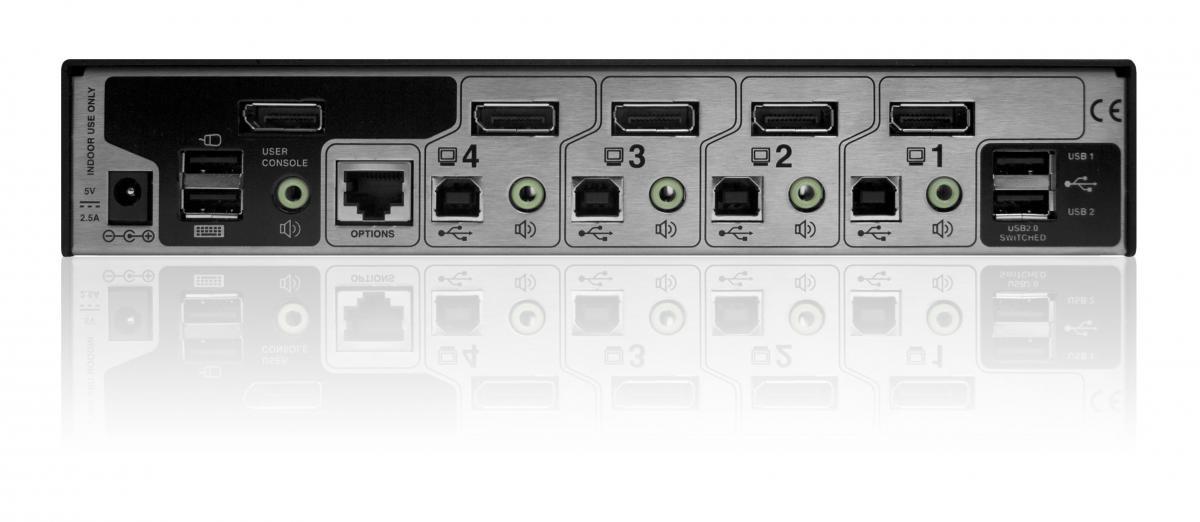

Ports & interfaces

Number of computers controlled

4

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

5

USB 2.0 Type-B ports quantity

4

Console ports

3.5mm mic, DisplayPort, USB A

Console USB ports quantity

4

Audio connections

Y

DC-in jack

Y

Performance

HD type

WQXGA

Maximum resolution

2560 x 1600 pixels

Design

Rack mounting

Y

Rack capacity

1U

Product colour

Black

Housing material

Metal

LED indicators

Y

Certification

CE, FCC

Display

Built-in display

Y

Power

Power source

AC

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Output voltage

5 V

Output current

2 A

System requirements

Windows operating systems supported

Y

Linux operating systems supported

Y

Mac operating systems supported

Y

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

233 mm

Depth

115 mm

Height

44 mm

Packaging content

AC adapter included

Y

Drivers included

Y

Rubber feet

Y
