AIM68CT - 10IN 800 nits - Atom x7 Z8750 - 4GB Ram - 64GB eMMC - LTE EU - Android 6.0

Introduction

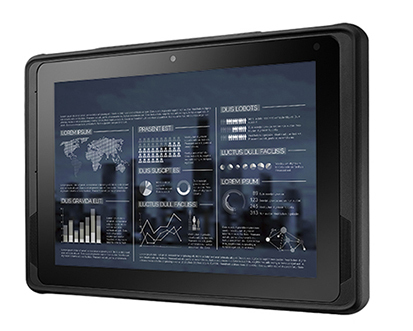

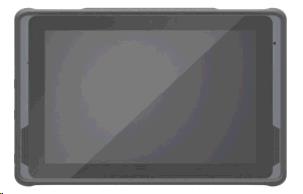

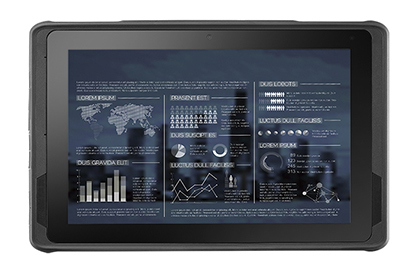

10.1" Industrial Tablet with Intel® AtomTM Processor.

Display

Display diagonal

25.6 cm (10.1")

Display resolution

1200 x 1920 pixels

Display technology

LCD

Display brightness

800 cd/m²

Display glass type

Gorilla Glass

Touch technology

Multi-touch

HD type

Full HD

Processor

Processor manufacturer

Intel

Processor family

Intel Atom®

Processor model

x7-Z8750

Processor frequency

1.6 GHz

Processor boost frequency

2.56 GHz

Processor cores

4

Processor threads

4

Processor cache

2 MB

Conflict-Free processor

Y

Processor cache type

L3

Processor code

SR2KG

Processor codename

Cherry Trail

Processor lithography

14 nm

Processor operating modes

64-bit

Processor package size

17 x 17 mm

Processor series

Intel Atom x7 Series

Scenario Design Power (SDP)

2 W

Tjunction

90 °C

Number of execution units

16

PCI Express configurations

2x1,1x2

Memory

Internal memory

4 GB

Storage

Internal storage capacity

64 GB

Card reader integrated

Y

Compatible memory cards

MicroSD (TransFlash)

Storage media

eMMC

Audio

Built-in speaker(s)

Y

Built-in microphone

Y

Number of built-in speakers

2

Number of microphones

2

Camera

Rear camera

Y

Rear camera type

Single camera

Rear camera resolution (numeric)

5 MP

Auto focus

Y

Rear camera flash

Y

Flash type

LED

Video recording

Y

Front camera

Y

Front camera resolution (numeric)

2 MP

Network

Mobile network generation

4G

Mobile network connection

Y

4G standard

LTE

Bluetooth

Y

Bluetooth version

4.1

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)

Ethernet LAN

Y

Near Field Communication (NFC)

Y

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Micro HDMI ports quantity

1

Microphone in

Y

Headphone connectivity

3.5 mm

Mini VGA ports quantity

1

Combo headphone/mic port

Y

Headphone out

Y

Docking connector type

USB

DC-in jack

Y

Design

Device type

Full-size tablet

Form factor

Slate

Product colour

Black

International Protection (IP) code

IP65

Certification

FCC ID, TELEC, NCC, SRRC, RCM UL, CB, LVD + CE, FCC, IC, VCCI, BSMI

Performance

GPS (satellite)

Y

Position location

Y

Software

Platform

Android

Operating system installed

Android 6.0

Processor special features

Intel® Wireless Display (Intel® WiDi)

Y

Intel® Turbo Boost Technology

N

Intel® Identity Protection Technology (Intel® IPT)

Y

Embedded options available

N

Intel 64

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Intel Identity Protection Technology version

1.00

Intel Secure Boot

Y

Intel Secure Boot Technology version

1.00

Intel Stable Image Platform Program (SIPP)

N

Intel Stable Image Platform Program (SIPP) version

0.00

Intel Virtualization Technology (VT-x)

Y

Battery

Battery capacity (Watt-hours)

26 Wh

Battery recharge time

3 h

Battery life (max)

5.5 h

Power

AC adapter output voltage

5 V

AC adapter output current

1 A

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

280 mm

Depth

18.3 mm

Height

180.1 mm

Weight

980 g

Operational conditions

Operating temperature (T-T)

-10 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 95%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12192 m

Operating vibration

1 G

Operating shock

20 G

Non-operating shock

50 G

Other features

Processor socket

BGA 1380

Processor ARK ID

93362
