ADVANTECH

DLT-V7212 A-4GB PCT XGA 10k MLC-64GB Wi-Fi W10IoT US/EU

Part Number:
D-V7212XA12F5H9AA0
Language:
UK
 Without VATWith VAT
Base Price:€2.385,38€2.886,31
Recupel:+ €0,10+ €0,12
Total:€2.385,48€2.886,43

Introduction

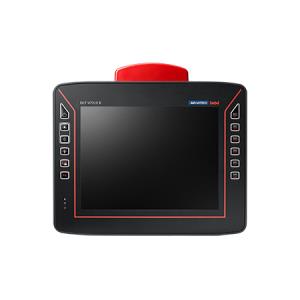

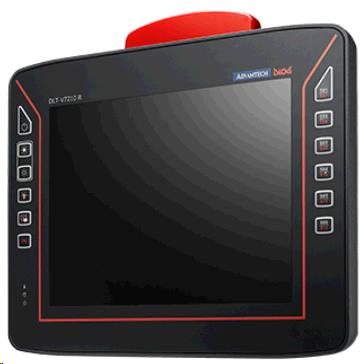

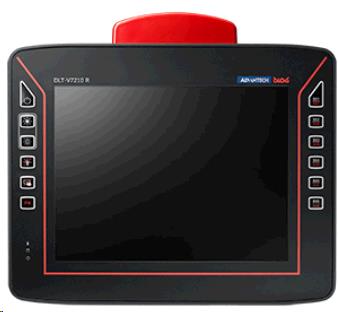

DLT-V72 is a rugged vehicle-mounted terminal with integrated keyboard designed for logistics applications and to provide maximum system uptime. Powered by an Intel®AtomT E3845 quad-core, 1.91 GHz, processor with 4 GB RAM, DLT-V72 supports a wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand operation in extreme industrial environments. The low-profile antenna offers excellent transmission capabilities in a compact form factor. Furthermore, the integrated user-friendly keyboard offers convenient operation and efficient data input. Meanwhile, the 10.1" widescreen WXGA color TFT display with flexible touch control ensures easy input and reduces input failures.

Display

Built-in display

Y

Display diagonal

30.7 cm (12.1")

Display resolution

1024 x 768 pixels

LED backlight

Y

HD type

XGA

Panel type

TFT

Display brightness

400 cd/m˛

Touchscreen

Y

Touch technology

Multi-touch

Processor

Processor frequency

1.91 GHz

Processor family

Intel Atom®

Memory

Internal memory

4 GB

Internal memory type

DDR3L-SDRAM

Memory clock speed

1333 MHz

Card reader integrated

N

Network

Mobile network generation

N

Ethernet LAN

Y

Ethernet LAN data rates

10,100,1000 Mbit/s

Features

Front camera

N

Ports & interfaces

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

RS-232 ports

2

COM ports quantity

1

Design

Product colour

Black

Housing material

Aluminium

Protection features

Vibration proof

International Protection (IP) code

IP65

Keyboard

Keyboard

N

Numeric keypad

N

Operational conditions

Operating temperature (T-T)

-30 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

334.4 mm

Depth

68.7 mm

Height

294.4 mm

Weight

4.65 kg

No options for this product
.
