Cat5 Hdmi 1.3b Extender Up To 60m Max 1920x1200-1080p

Introduction

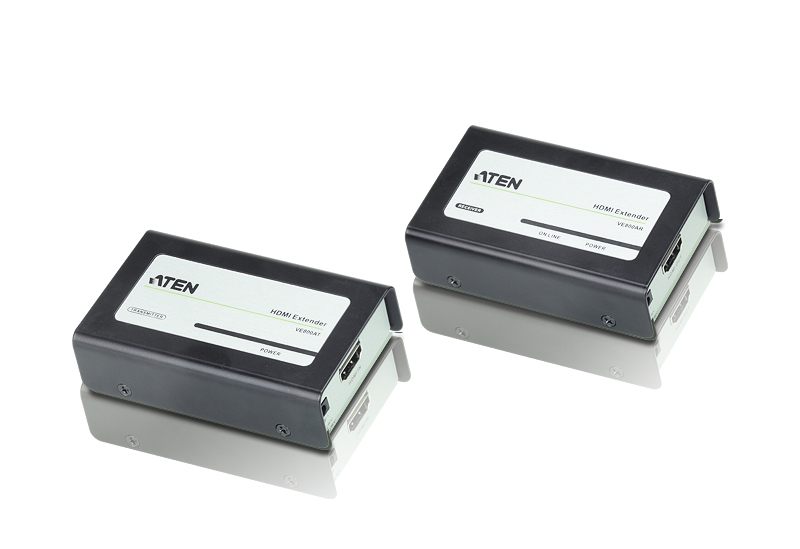

ATEN 1080P HDMI EXTENDER OVER CAT5E - UP TO 40M

Specifications

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATENs VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the displays EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.

• Extends the distance between HDMI source and HDMI display
• Uses Cat 5e cable to connect the local and remote units
• Features ATEN EDID technology that allows transmission over one Cat 5e cable
• Extend 1080p by 40 m; extend 1080i (HDTV) by 60 m
• Superior video quality 1920 x 1200, up to 1080p
• HDMI (3D, Deep Color); HDCP Compatible
• Supports Dolby True HD and DTS HD Master Audio
• 8 segment equalization adjustment switch optimizes display quality
• DDC compatible



Video Input

• Interface: 1 x HDMI Type A Female (Black)
• Impedance: 100 ?

Video Output

• Interface: N/A
• Impedance: N/A

Video

• Max. Data Rate:  6.75 Gbps (2.25 Gbps Per Lane)
• Max. Pixel Clock:  225 MHz
• Compliance:  HDMI (3D, Deep Color) HDCP Compatible
• Max. Resolutions / Distance: Up to 1080p@40m; 1080i@60m

Audio

• Input:  1 x HDMI Type A Female (Black)
• Output : N/A

Power

• Connectors:  1 x DC Jack
• Consumption: 5 VDC, 1W

Environmental

• Operating Temperature: 0 - 50°C
• Storage Temperature:  -20 - 60°C
• Humidity: 0 - 80% RH, Non-Condensing

Physical Properties

• Housing: Metal
• Weight: 0.16 kg
• Dimensions (L x W x H) 9.00 x 5.50 x 2.20 cm
