Without VAT | With VAT | |
---|---|---|
Base Price: | €113,67 | €137,54 |
Total: | €113,67 | €137,54 |

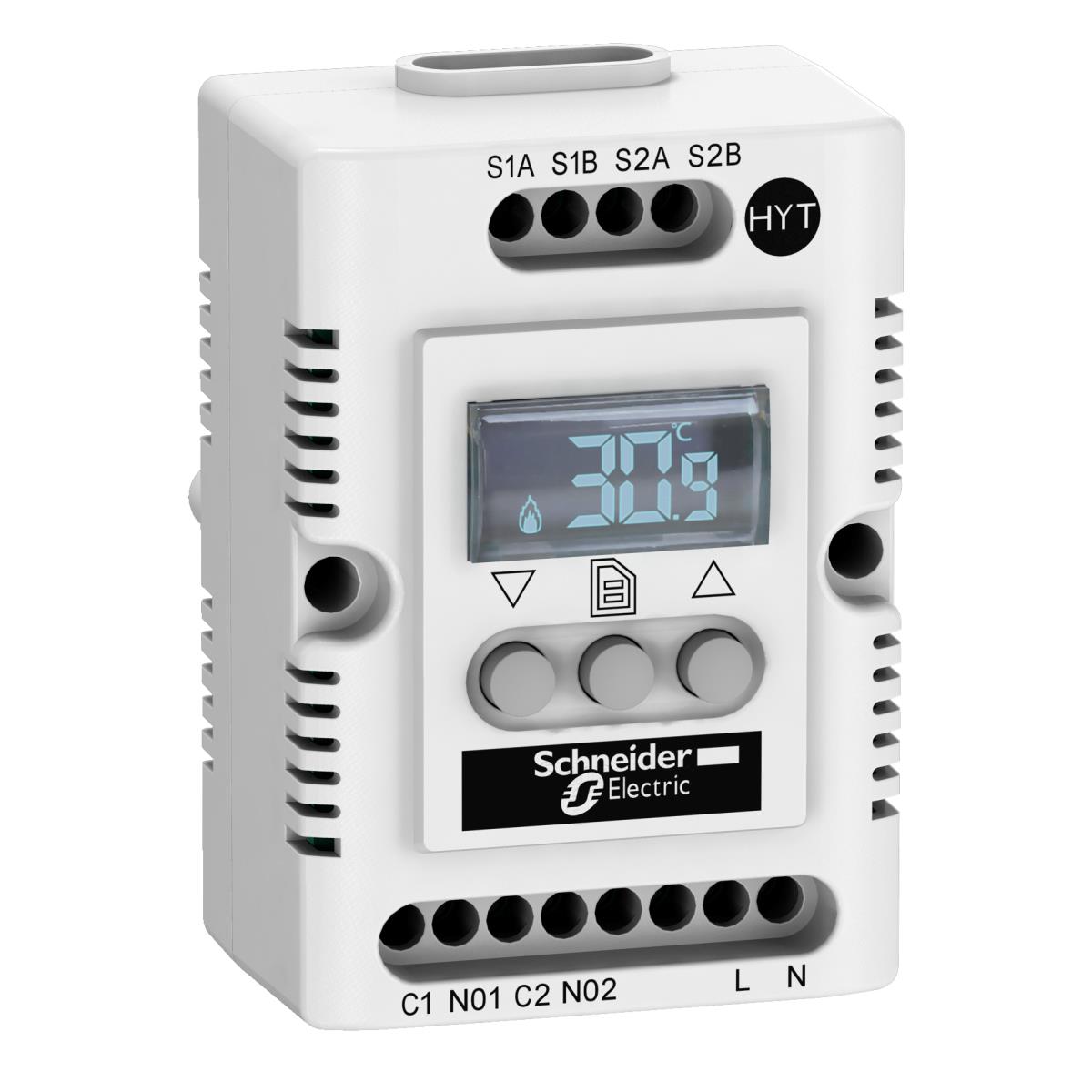

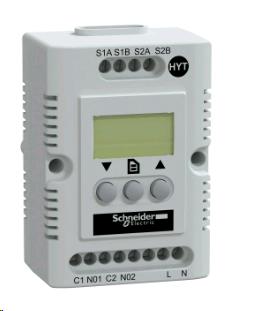

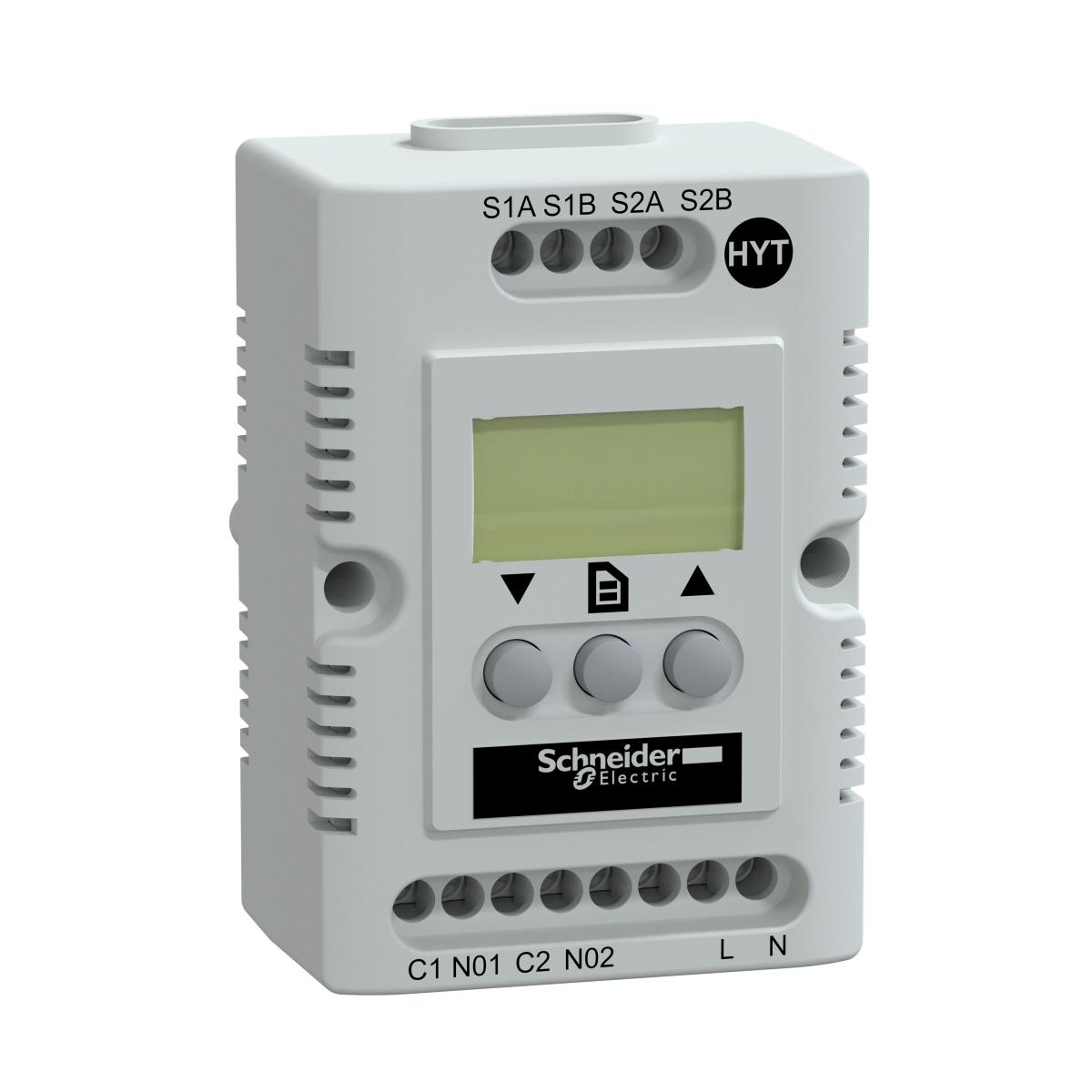

ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.
Main
range | ClimaSys |
---|---|
product name | ClimaSys CC |
product or component type | Electronic hygrotherm |
temperature setting range | -40…80 °C |
humidity setting range | 20…80 % |
display type | OLED screen |
information displayed | Relative humidity Temperature in °F Temperature in °C |
Complementary
input voltage | 200...240 V AC |
---|---|
sensor type | Optional NTC external sensor |
maximum switching capacity | 4 A 230 V AC |
electrical connection | 8 connectors, clamping capacity: 2.5 mm² |
mounting mode | Clipped By screws |
height | 85 mm external: |
width | 56 mm external: |
depth | 44 mm external: |
mounting location | 35 mm DIN rail Cross rails Spacial upright On mounting plate |
ambient air temperature for operation | -40…80 °C |
hysteresis | 2 K programmed value |
hysteresis | 3 % |
number of outputs | 2 ventilation/heating function |
material | PC |
colour | Light grey |
flame retardance | Self-extinguishing conforming to UL94 (material V0) |
product certifications | UR |
