APC

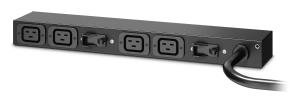

Rack PDU Basic 0U/1U 220-240V 32A (4) C19 EMEA/ASIA

Rack PDU Basic 0U/1U 220-240V 32A (4) C19 EMEA/ASIA

Part Number:
AP6032A
Language:
UK
 Without VATWith VAT
Base Price:€223,87€270,88
Total:€223,87€270,88

Introduction

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Design

PDU types

Basic

Type

Single-phase

Rack capacity

0U/1U

Mounting

Horizontal/Vertical

Product colour

Black

Ports & interfaces

AC outlets quantity

4 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C19 coupler

Features

Cable length

3.65 m

Certification

VDE, CE

Power

Nominal input voltage

200-240 V

AC input frequency

50 - 60 Hz

Maximum current

32 A

Nominal output voltage

200-240 V

Load capacity

7680 VA

Maximum input current per phase

32 A

Maximum power

7680 W

Weight & dimensions

Dimensions (WxDxH)

4.36 x 9.29 x 43.81 mm

Weight

2.78 kg

Operational conditions

Operating temperature (T-T)

0 - 50 C

Storage temperature (T-T)

-15 - 60 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Technical details

Sustainability certificates

RoHS
