APC

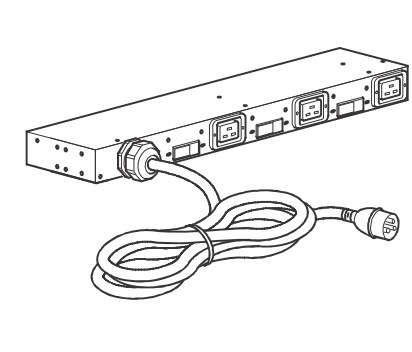

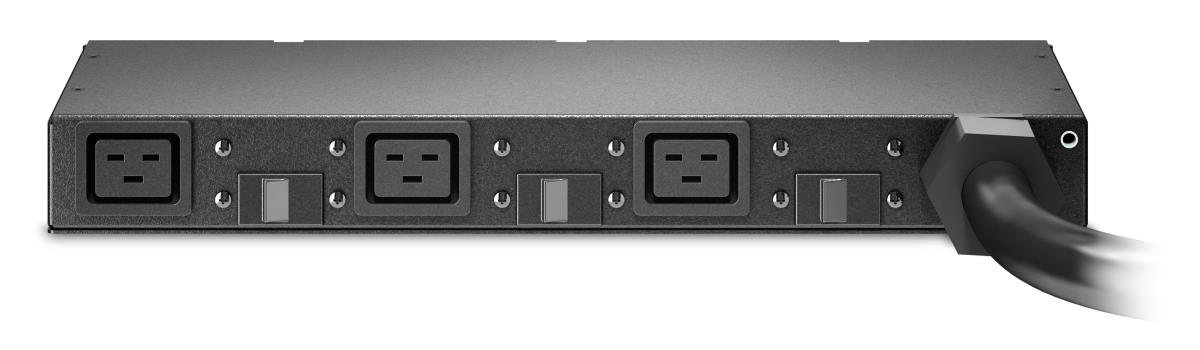

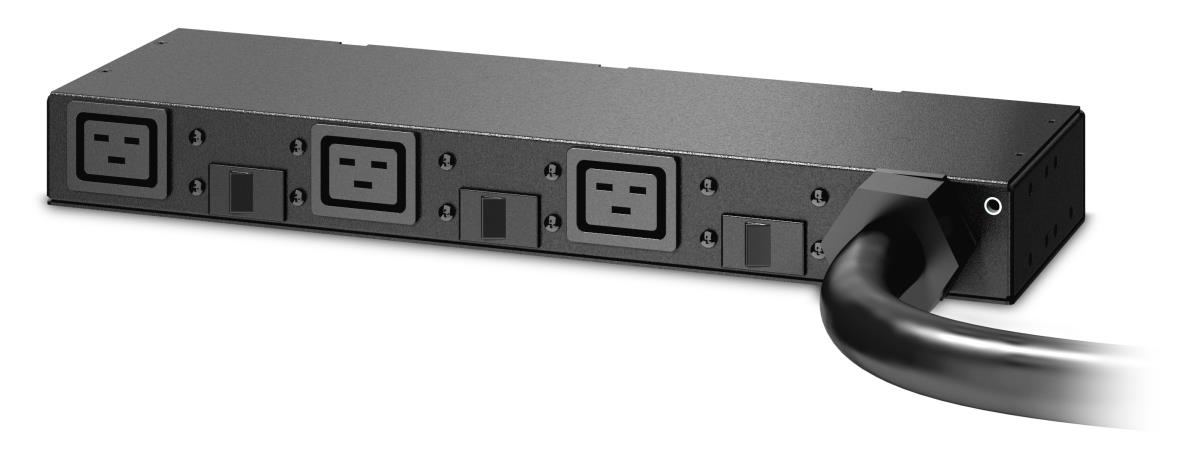

Rack PDU Basic 0U/1U 220-240V 63A (3) C19

Rack PDU Basic 0U/1U 220-240V 63A (3) C19

Part Number:
AP6038A
Language:
UK
 Without VATWith VAT
Base Price:€691,92€837,22
Total:€691,92€837,22

Introduction

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Design

PDU types

Basic

Rack capacity

0U/1U

Mounting

Horizontal/Vertical

Product colour

Black

Ports & interfaces

AC outlets quantity

3 AC outlet(s)

AC outlet types

C19 coupler

Features

Cable length

3.65 m

Certification

VDE, CE

Power

Nominal input voltage

200-240 V

AC input frequency

50 - 60 Hz

Maximum current

48 A

Nominal output voltage

200-240 V

Load capacity

11040 VA

Maximum input current per phase

48 A

Maximum power

11040 W

Weight & dimensions

Dimensions (WxDxH)

39.49 x 19.5 x 50.01 mm

Weight

5.4 kg

Operational conditions

Operating temperature (T-T)

0 - 50 C

Storage temperature (T-T)

-15 - 60 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Technical details

Sustainability certificates

RoHS

No options for this product
