APC

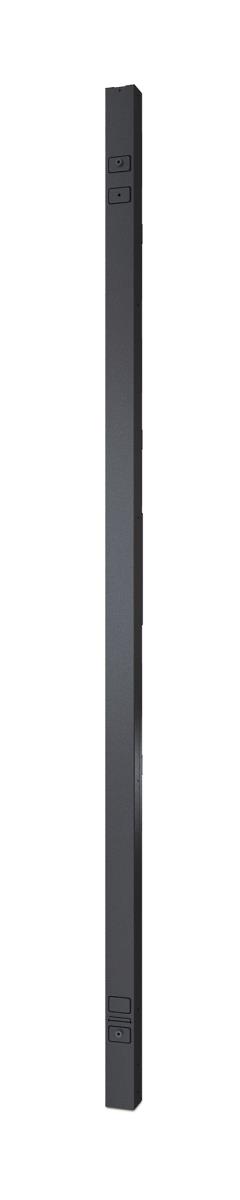

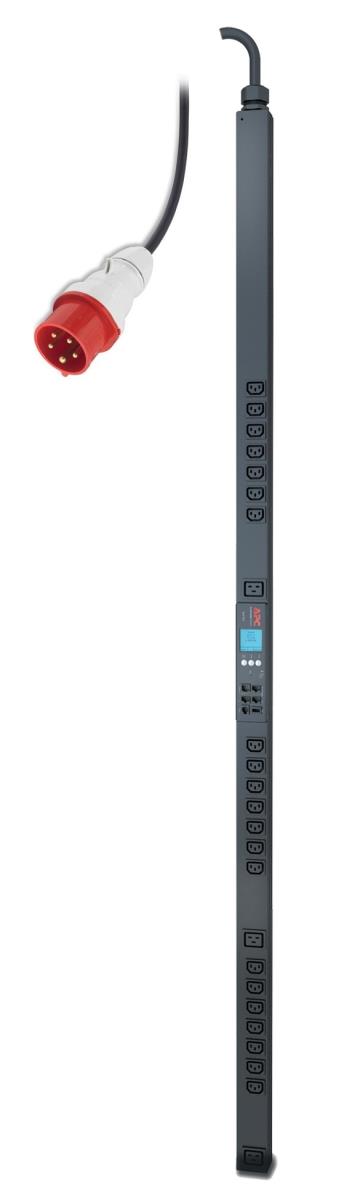

Rack PDU 2G Metered-by-Outlet ZeroU 11.0kW 230V (21) C13 & (3) C19

Rack PDU 2G Metered-by-Outlet ZeroU 11.0kW 230V (21) C13 & (3) C19

Part Number:
AP8481
Language:
UK
 Without VATWith VAT
Base Price:€1.978,25€2.393,68
Recupel:+ €0,07+ €0,08
Total:€1.978,32€2.393,77

Introduction

Metering-by-Outlet capability

Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.

Metering-by-Outlet capability

Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. (Note: Only available with units with local current monitoring feature)

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Design

PDU types

Metered

Rack capacity

0U

Mounting

Vertical

Product colour

Black

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

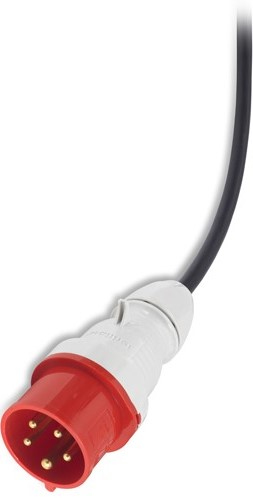

Power plug

IEC309

AC outlet types

C13 coupler, C19 coupler

Input connection type

IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E

Output connections

21 x C13 & 3 x C19

Features

LED indicators

Y

Cable length

1.83 m

Certification

EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE, REACH

Management features

Monitoring

Current, Power, Voltage

Management platform

Web, SNMP, Telnet

Power

Nominal input voltage

400 V

AC input frequency

50 - 60 Hz

Nominal output voltage

230 V

Load capacity

11040 VA

Maximum input current per phase

16 A

Maximum total current draw per phase

16 A

Maximum power

11040 W

Weight & dimensions

Dimensions (WxDxH)

56 x 51 x 1829 mm

Weight

8.21 kg

Packaging data

Package dimensions (WxDxH)

163 x 117 x 2037 mm

Package weight

10.5 kg

Operational conditions

Operating temperature (T-T)

-5 - 45 C

Storage temperature (T-T)

-25 - 65 C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 15000 m

Technical details

Sustainability certificates

RoHS
