Fa54 Main Unit

Fa54 Main Unit

Part Number:
 Without VATWith VAT
Base Price:€495,28€599,28
Recupel:+ €0,04+ €0,05


Cost-effective multi-view surveillance

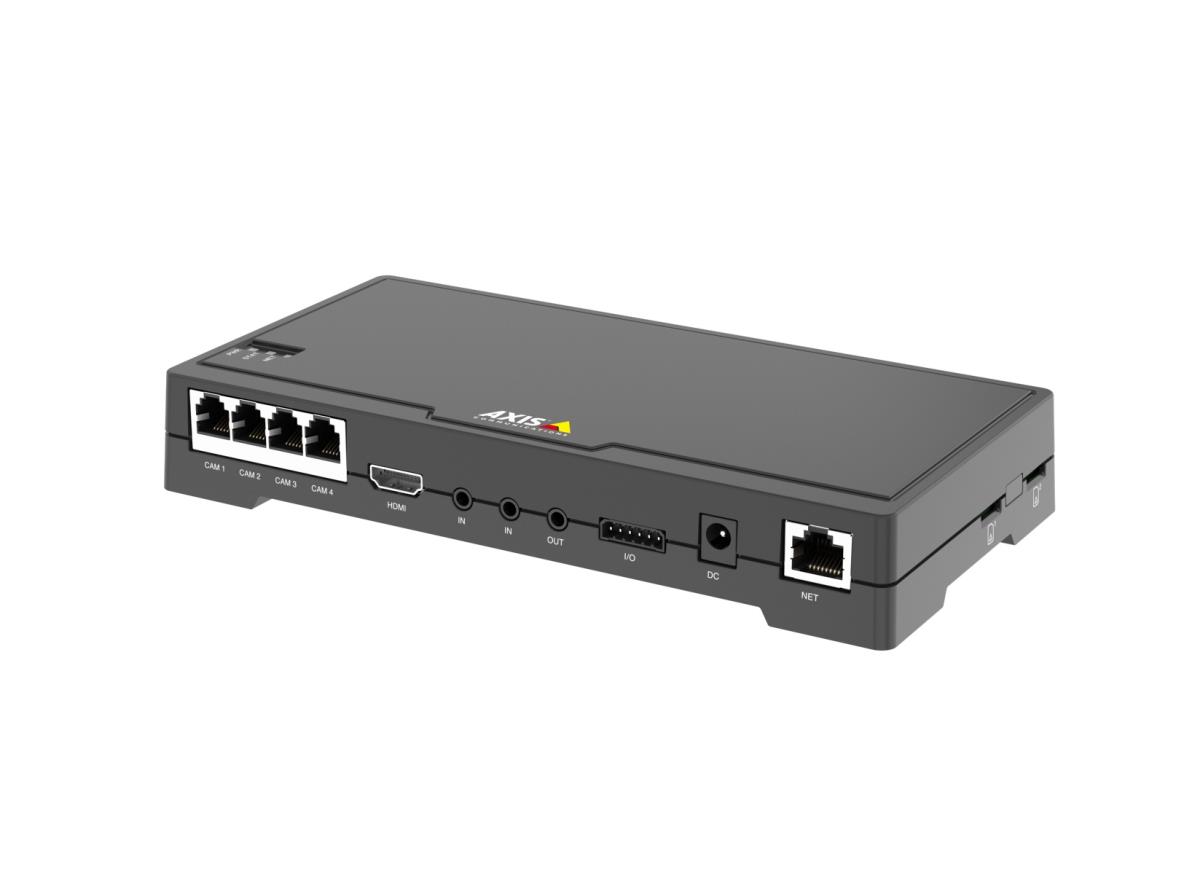

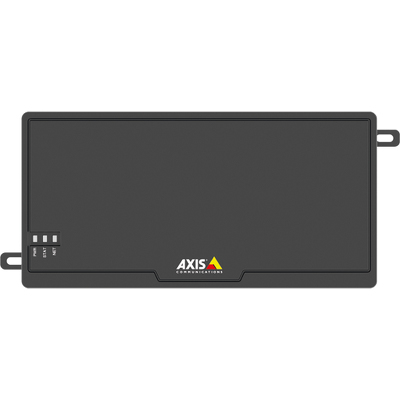

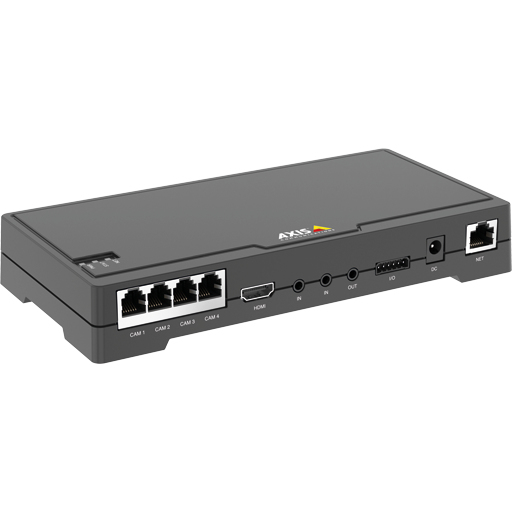

AXIS FA54 Main Unit can connect to four highly discreet AXIS FA Sensor Units for the surveillance of four closely situated indoor areas. The main unit can serve as the basis for a complete video surveillance system-perfect for a small store, bank or office. Or it can be a complementary part of a bigger system where sensor units are required for highly discreet surveillance.

Feature rich
AXIS FA54 has a powerful processor that enables simultaneous streaming of full frame rate HDTV 1080p videos from all four sensor units.

It also supports the following:

- Quad view for simultaneous streaming and viewing of four scenes, with each scene taking up a quarter of the display
- Forensic WDR (wide dynamic range) for better image quality in difficult lighting conditions
- Zipstream for savings in bandwidth and storage requirements
- Analytics such as built-in ones like video motion detection, tampering alarm and audio detection, or optional ones based on AXIS Camera Application Platform, such as AXIS People Counter and AXIS Demographic Identifier for store optimization purposes
- Corridor Format for optimally covering vertically oriented areas such as aisles and corridors
- HDMI support for connection to a surveillance or public view monitor (PVM), and support for a playlist that enables surveillance video and still images (information/ads) to be shown on-screen
- Two-way audio with dual inputs for microphones and an output port for a speaker
- Four configurable input/output ports to external devices such as door locks and lights for handling alarm events
- Two microSD card slots for local storage
- Video management software: AXIS Companion (freely downloadable and includes a mobile app for remote viewing and management), AXIS Camera Station and third-party applications

Combined with attractive prices on the main and sensor units, an AXIS FA Series system delivers a total cost of ownership that feels like a bargain.

Keep it discreet - and flexible
Like all modular camera systems, AXIS FA Series is based on a divided network camera concept, where the camera is split into a sensor unit (made up of a lens and image sensor) and a main unit (the body of a camera). The units are connected by a cable, which is supplied with the sensor unit.

With AXIS FA Series, the main and sensor units are sold separately, so you can choose the most suitable sensor units for your application. Note that the main and sensor units in AXIS FA Series cannot be used in combination with the main and sensor units in AXIS F Series.

Superb video quality with Forensic WDR
AXIS FA54 Main Unit supports Axis Forensic WDR at all times. AXIS FA54 prioritizes the darker areas of a scene with high-contrast lighting, such as in a backlight scenario where you have a person standing in front of a very bright background. In such a scenario, a traditional camera with no support for wide dynamic range delivers a dark image of the person; with Forensic WDR in AXIS FA54, colors and details in the darker areas are more visible. The WDR technology in AXIS FA products is also optimized for motion, so there is no motion artifact when a fast-moving object passes by. In low light scenes, an AXIS FA Series system delivers excellent color video with low noise.

Keep total costs low
A system with AXIS FA54 Main Unit and four HDTV 1080p sensor units is often less costly than four standard HDTV 1080p cameras with similar functionalities. And with only one Ethernet cable for four sensor units, you can lower your requirement for network ports and save on the cost for a network switch. In addition, with one IP address, you may only need a single video management software (VMS) license for viewing video from four sensor units.

An AXIS FA Series system also provides savings in bandwidth and storage needs. Axis Zipstream technology, for instance, efficiently encodes H.264 video streams, reducing storage and bandwidth requirements by up to 50% or more while maintaining important details. Event-triggered recording using analytics also helps reduce bandwidth and storage use.


Maximum resolution1920 x 1080 pixels
Resolution at capture speed640x480@60fps,1280x720@50fps,1920x1080@24fps,1920x1080@25fps,1920x1080@30fps
Internal memory1024 MB
Audio formats supportedAAC,ADPCM,G.711,G.726,OPUS
Video formats supportedH.264,M-JPEG
Languages supportSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash),MicroSDHC,MicroSDXC
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Ethernet LAN data rates10,100,1000 Mbit/s
HDMI ports quantity1
Audio output1
Microphone inYes
DC-in jackYes
Supported network protocolsIPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Product colourBlack
Certification55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, VCCI A, RCM AS/NZS CISPR 32 A, ICES-003 A, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27
Power consumption (max)30 W
Power consumption (typical)14 W
Output voltage12 V
Operating temperature (T-T)0 - 45 C
Operating relative humidity (H-H)10 - 85%
Storage temperature (T-T)-40 - 65 C
Width202 mm
Depth102 mm
Height31 mm
Weight442 g
AC adapter includedYes
Quick installation guideYes
