Flex Room Upgrade Solution with Microsoft Teams Rooms

Introduction

The UC-ENGINE-BRKT-T-UPGRD solution provides all of the necessary components to upgrade a deployed Crestron Flex tabletop conference device (CCS-UC-1, CCS-UC-1-AV, or CCS-UC-1-AV-PLUS) and camera to a complete video conference system for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays1 and features UC Bracket Assembly and cables.

Native Microsoft Teams® Rooms Experience

The UC-ENGINE-BRKT-T-UPGRD system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility.

Simplified Deployment

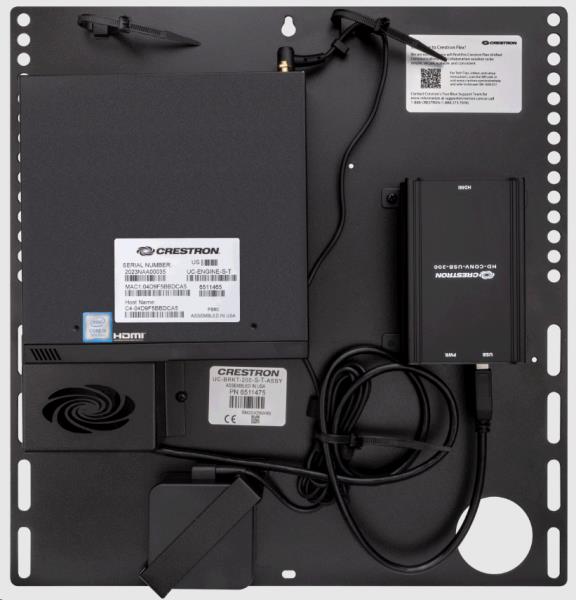

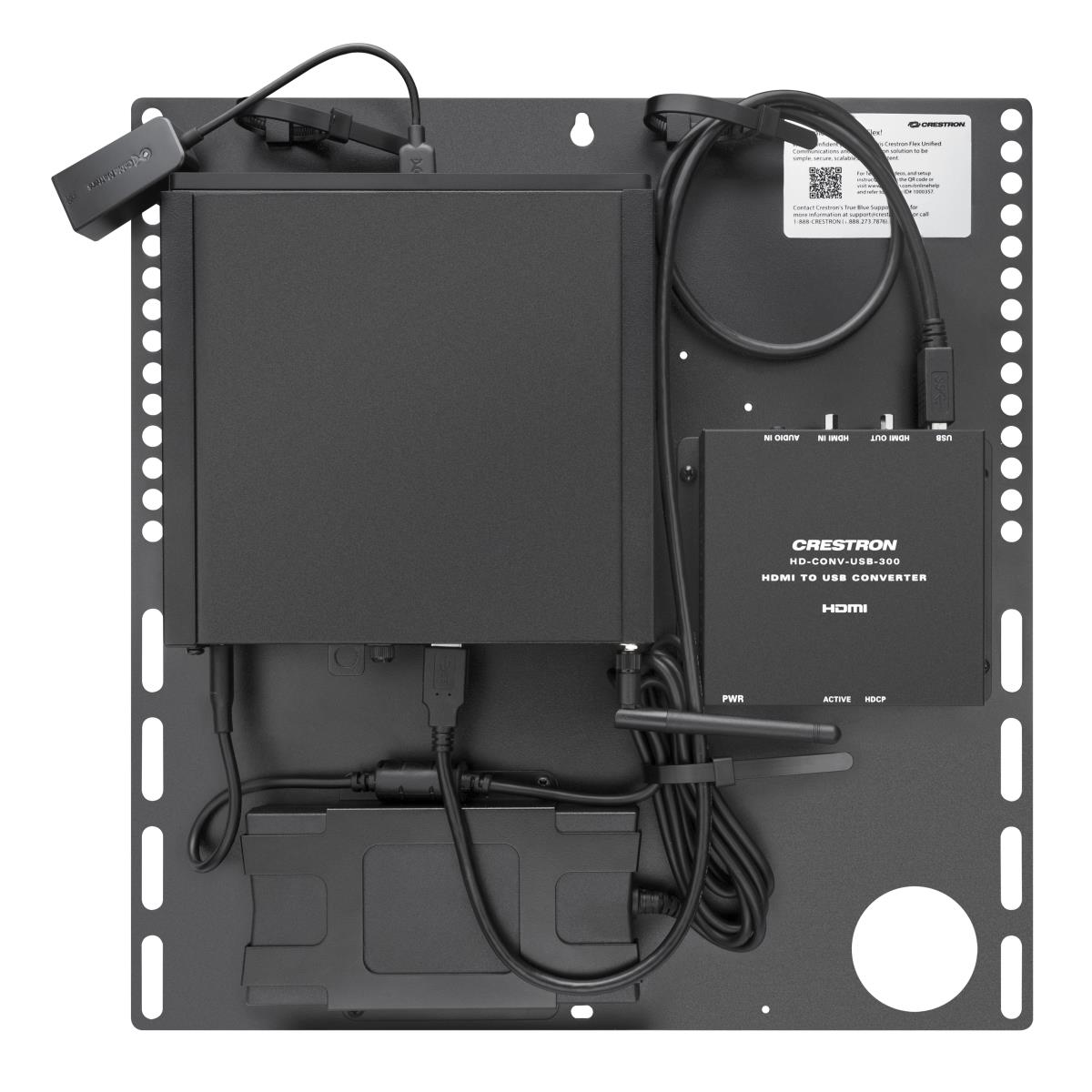

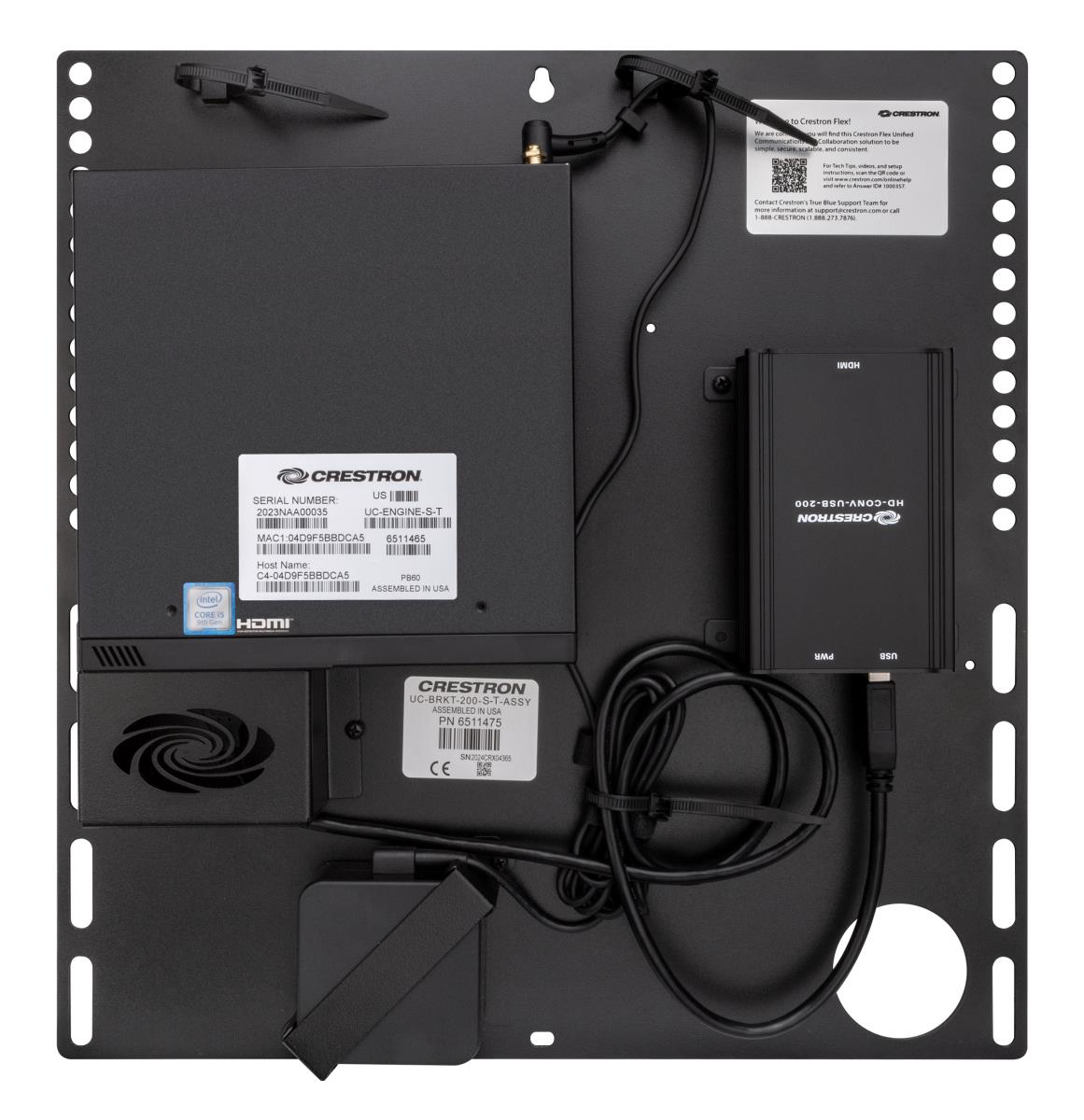

The UC Bracket Assembly (UC-BRKT-200-S-T-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the to the UC Bracket Assembly.

Crestron Control System Integration

The UC-ENGINE-BRKT-T-UPGRD can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.3

Enterprise-Grade Security

Crestron Flex is an enterprise-grade solution, engineered in partnership with Microsoft® to integrate seamlessly into any Microsoft Teams Rooms software deployment. Crestron Flex is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.

Easy Provisioning and Device Management

The XiO Cloud service4 is an IoT cloud based provisioning service that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.

Premium-Level Support

Crestron Flex Care is an optional subscription service that can be renewed annually (up to 5 years from ship date). It provides 24/7 live remote technical support, an extended five-year warranty on Crestron® hardware, expedited advance replacements, and a discounted rate for on-site support.

Dual Control Option

A TS- or TSW- series 7 in. or 10.1 in. touch screen may be added to the solution as an additional control point for the Microsoft Teams Rooms environment.

Features

Product colour

Black

Ethernet LAN

Yes

Ethernet LAN data rates

100 Mbit/s

Windows operating systems supported

Windows 11

Power

Power source type

AC

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

6 A

Power consumption (typical)

60 W

Weight & dimensions

Width

368 mm

Depth

48 mm

Height

381 mm

Weight

3.6 kg

Packaging content

Quantity

1

Cables included

DisplayPort to HDMI, HDMI, LAN (RJ-45)

HDMI cable length

1.8 m

Power cable length

1.8 m

Mounting kit

Yes

AC adapter included

Yes
