Elo Touch Solutions

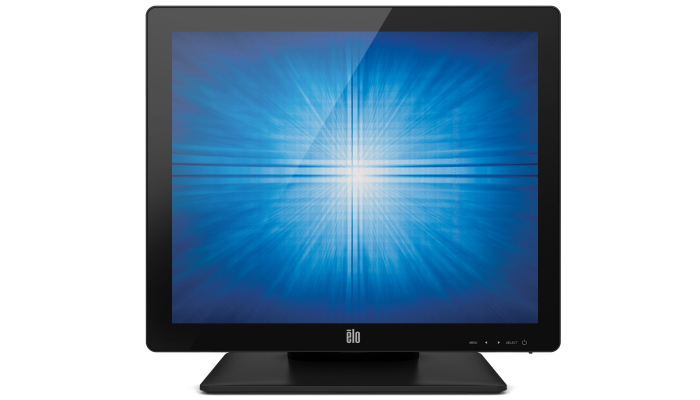

Monitor LCD 15in 1517l Intellitouch Anti Glare Black

Monitor LCD 15in 1517l Intellitouch Anti Glare Black

Part Number:
E344758
Language:
UK
 Without VATWith VAT
Base Price:€648,22€784,34
Recupel:+ €1,41+ €1,71
Total:€649,63€786,05

Introduction

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.

MSR ready

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Flexible mounting

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

Display

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

Panel type

TFT

Display technology

LED

Native aspect ratio

4:3

Response time

23 ms

Display brightness

270 cd/m²

Contrast ratio (typical)

800:1

Horizontal scan range

31.5 - 60 kHz

Vertical scan range

56 - 75 Hz

Viewing angle, horizontal

160°

Viewing angle, vertical

150°

Display diagonal (metric)

38.1 cm

Supported graphics resolutions

640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA)

Viewable size, horizontal

30.4 cm

Viewable size, vertical

22.8 cm

Display number of colours

16.2 million colours

Performance

Touch technology

Single-touch

Touchscreen technology

Surface acoustic wave

Built-in camera

N

On Screen Display (OSD)

Y

Number of OSD languages

8

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese

Mean time between failures (MTBF)

50000 h

Ports & interfaces

USB Touch port

Y

VGA (D-Sub) ports quantity

1

Ergonomics

Height adjustment

N

Panel mounting interface

75 x 75 mm

Wall mountable

Y

Cable lock slot

Y

VESA mounting

Y

Power

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

10 kWh

Power consumption (typical)

10.5 W

Power consumption (standby)

1.2 W

Power consumption (off)

0.4 W

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Storage relative humidity (H-H)

10 - 95%

Certificates

Certification

UL, cUL, FCC, IC, CCC, UKCA, VCCI, KCC, e-Standby, Mexico NOM, BSMI Mark, CB, China RoHS, RCM, Argentinian S-Mark

Sustainability

Sustainability compliance

Y

Sustainability certificates

CE, REACH, RoHS

Weight & dimensions

Width (with stand)

358 mm

Depth (with stand)

197 mm

Height (with stand)

319 mm

Weight (with stand)

4.3 kg

Packaging data

Package width

487 mm

Package depth

231 mm

Package height

485 mm

Package weight

7.3 kg

Packaging content

Cables included

AC, USB Type-A to USB Type-B, VGA

Stand included

Y
