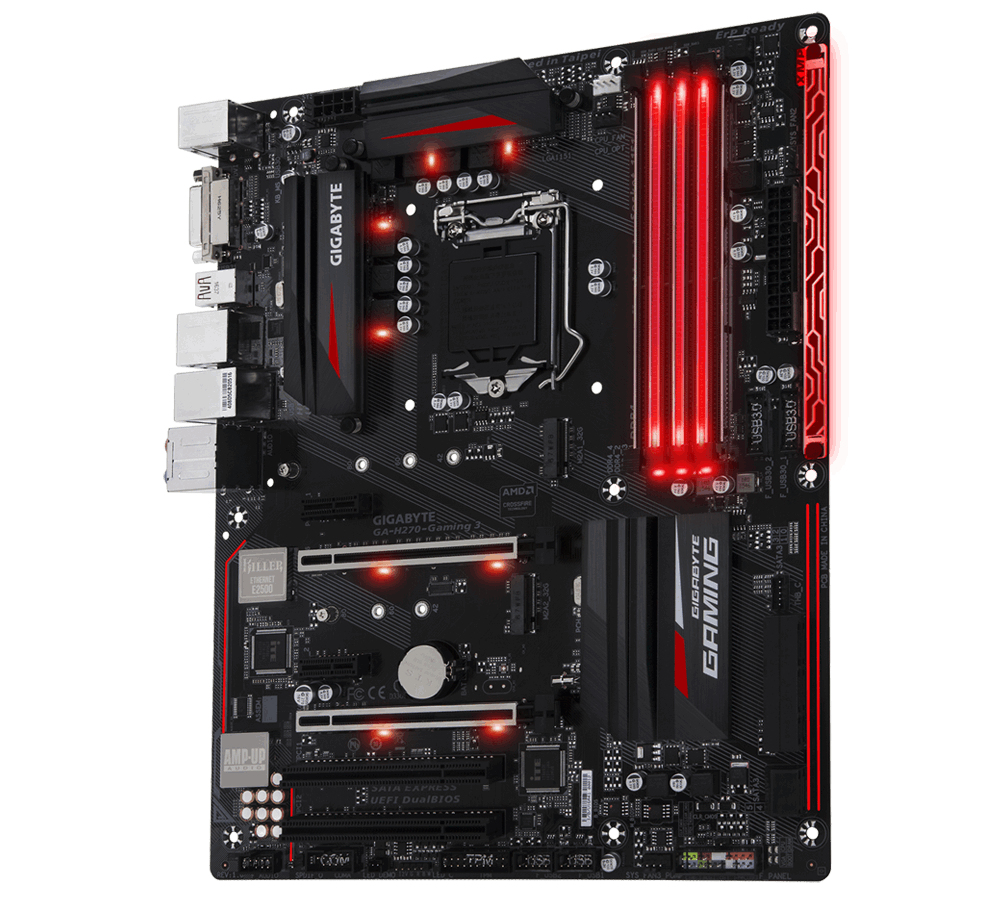

Motherboard Socket LGA1151 H270 - Gah270g3-00-b

Introduction

- Supports 7th/ 6th Generation Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast USB 3.1 Gen 2 with USB Type-C™ and Type-A
- 2- Way Graphics Support with Dual Armor and Ultra Durable™ Design
- Dual NVMe PCIe SSDs in RAID 0 Support
- Intel® Optane™ Memory Ready
- Sound Blaster X-Fi MB5+ALC 1220 120dB SNR HD Audio
- Killer™ E2500 Gaming Network
- USB DAC-UP 2 with Adjustable Voltage
- RGB FUSION LED Light Show design
- Swappable Overlay for Accent LED
- Dual Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 2 SATA Express Connectors for up to 16Gb/s Data Transfer
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
- GIGABYTE UEFI DualBIOS™
- APP Center Including Cloud Station™ Utility

Processor

Processor manufacturer

Intel

Processor socket

LGA 1151 (Socket H4)

Compatible processor series

Intel® Celeron®, Intel® Pentium®

Memory

Supported memory types

DDR4-SDRAM

Number of memory slots

4

Memory slots type

DIMM

Memory channels

Dual-channel

Non-ECC

Y

Supported memory clock speeds

2133,2400 MHz

Maximum internal memory

64 GB

Supported memory module capacities

4GB

Storage controllers

Supported storage drive types

HDD & SSD

Internal I/O

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of SATA III connectors

6

Number of SATA Express connectors

2

S/PDIF out connector

Y

Front panel connector

Y

ATX Power connector (24-pin)

Y

CPU fan connector

Y

EPS power connector (8-pin)

Y

Serial port headers

1

Rear panel I/O ports

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

1

HDMI ports quantity

1

DVI-D ports quantity

1

Headphone outputs

1

Microphone in

Y

Network

Ethernet LAN

Y

Features

Motherboard chipset

Intel® H270

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

Motherboard chipset family

Intel

Power source type

ATX

Linux operating systems supported

Y

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Expansion slots

PCI Express x1 slots

2

PCI Express x16 slots

1

PCI slots

2

Number of M.2 (M) slots

2

BIOS

BIOS type

UEFI AMI

BIOS memory size

64 Mbit

ACPI version

5.0

Clear CMOS jumper

Y

Processor special features

Intel® Optane™ Memory Ready

Y

Weight & dimensions

Width

244 mm

Depth

305 mm

Other features

Serial port via internal header

Y

Parallel port via internal header

Y
