Wireless Access Point White Power Over Ethernet (poe)

Introduction

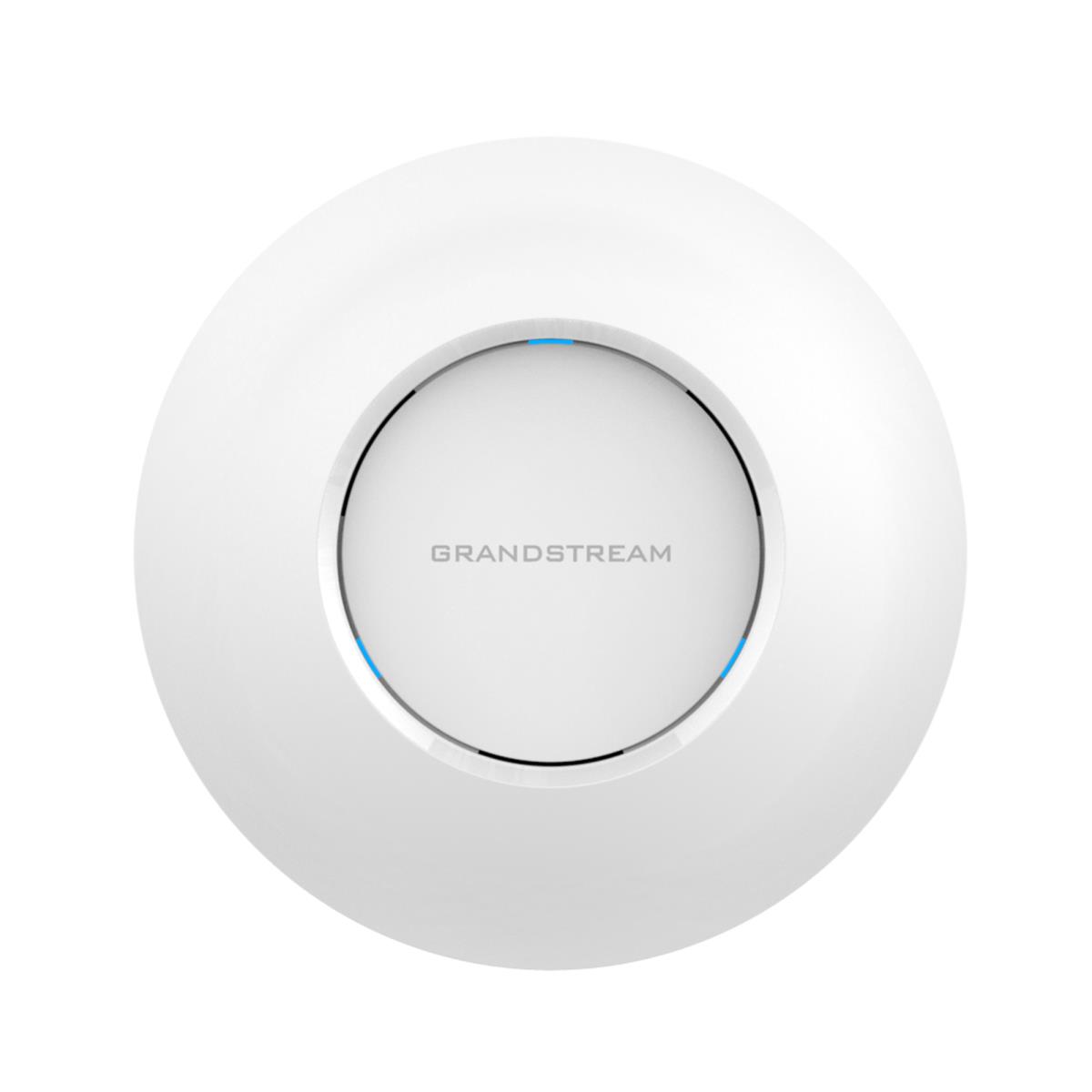

The GWN7625 is an 802.11ac Wave-2 Wi-Fi access point ideal for small-to-medium sized businesses, home offices, retail shops, restaurants and more. It offers 4x4:4 MU-MIMO technology on the 5G band and 2x2:2 MU-MIMO on the 2.4G band as well as a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7625 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7625 is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi -Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advance d QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7625 is the ideal Wi-Fi access point for medium wireless network deployments with medium user density.

Features

2.4 GHz

Yes

5 GHz

Yes

6 GHz

No

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Cabling technology

10/100/1000Base-T(X)

MIMO

Yes

MIMO type

Multi User MIMO

Quality of Service (QoS) support

Yes

Security

Security algorithms

TKIP, WEP, WPA, WPA2-PSK, WPA3

Number of SSID supported

16

Protocols

Supported network protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

13 W

Design

Placement

Wall

Product colour

White

Cable lock slot

Yes

Cable lock slot type

Kensington

Reset button

Yes

Certification

FCC, CE, RCM, IC, UKCA

Antenna

Antenna type

Internal

Antennas quantity

6

Antenna gain level (max)

4.5 dBi

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-10 - 60 °C
