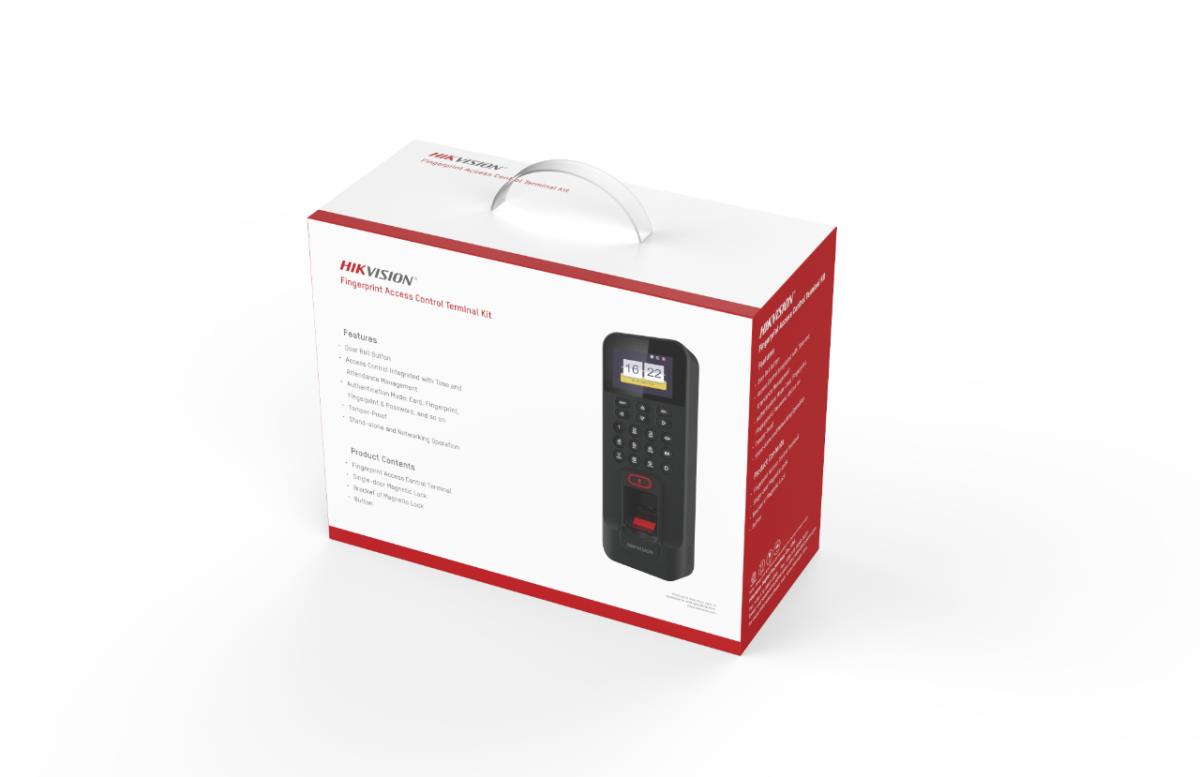

Hikvision Fingerprint Terminal + Single Door Magnetic Lock

Introduction

HIKVISION FINGERPRINT TERMINAL + SINGLE DOOR MAGNETIC LOCK

Specifications

Model: Hikvision DS-KAS261

Included: 1x DS-K1T804MF 1x DS-K4H258S 1x DS-K4H258LZ 1x DS-K7P01

Specifications

DS-K1T804MF

System Parameters

• Storage:
  • • Up to 3,000 Valid Cards;
    • Up to 100,000 Event Records;
    • Up to 150,000 Attendance Records
• Operation System: Linux
• Fingerprint Capacity: Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
• Fingerprint Recognition Duration: < 1 s
• FAR (False Accept Rate): = 0.001%
• FRR (False Rejection Rate): = 0.01%
• Fingerprint Recognizer: Optical Fingerprint Recognizer Module
• Card Reading Mode: Supports Mifare Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment
• Card Reading Distance: 0 to 4.5cm
• Card Reading Response Duration: < 1 s
• Fingerprint Comparing Mode: 1:1 and 1:N, N=3000

Device Interfaces

• Input Interface: Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
• Output Interface: Relay (Lock Output) × 1, and Alarm Output × 1
• Transmission Rate:
  • • TCP/IP, WIFI: 10/100Mbps Self-adaptive,
    • RS-485: 19200 bps-N-8-1
• USB Interface: USB2.0, Type A
• Communication Interface: TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
• Wi-Fi: Support
• External Card Reader: Standard Wiegand26/34
• Wiegand Interface: Output: Wiegand 26/34; Input: Wiegand 26/34

General

• LCD Screen: 2.4-inch (320×240 LCD-TFT Display Screen)
• Key Board: Keyboard (Back Light)
• Audio: 1 Buzzer and 1 Loudspeaker
• Power Supply: 12 VDC/2 A
• Appearance Color: Black
• Reset Key: × 1
• LED Indicator: Power/Status (Red/Green)
• Water-Proof: IP42
• Temper-Proof: Support
• Installation: Surface Mounting, Metal Door Mounting, Installation with Gang Box
• Working Temperature : -10° C to 55° C (14° F to 131° F)
• Working Humidity: 10% to 90% (Non-Condensing)
• Dimensions (L×W×H): 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")

DS-K4H258-LZ

General

• L-Bracket Dimension (L×W×H): 238×30×47mm (9.4×1.2×1.9")
• Z-Bracket Dimension (L×W×H): 185×44×100mm (7.3×1.7×3.9")
• Suitable Door: Wooden Door, and Metal Door
• Shell: Hard Anodizing Electroplated
• Weight: 0.77kg

DS-K7P01

General

• Structure: aluminum alloy panel, metal button
• Current Rating: 3A @36VDC Max
• Output Contact: NO/NC/COM Contact
• Aging Test: already passed 500 thousand times aging test
• Suitable Doors: hollow doorframe and embedded-electric box
• Panel: aluminum panel with sandblast
• Working Temperature : -10° C to 55° C (14° F to 131° F)
• Working Humidity: 0 to 95% (relative humidity)
• Dimensions (L×W×H): 86×86×28.9mm(3.39×3.39×1.14")
• Weight: 0.25kg (0.55lb)

DS-K4H258S

General

• Working Temperature: -10°C~+55°C (14°F~131°F)
• Working Humidity :0~95% (Relative Humidity)
• Working Current: 340mAx2
• LED Indicator: Green (Work Status)
• Dimension Of Lock Body (L×W×H): 238×45×25mm (9.4×1.8×1.0")
• Dimension Of Armature Plate (L×W×H): 182×38×12.5mm (7.2×1.5×0.5")
• Unlock Method: Current Interruption
• Maximum Thrust: 280kg(550Lbs) Linear Thrust
• Input Voltage: 12 VDC
• Suitable Door: Wooden Door, Glass Door, Metal Door, Fireproof Door
• Surface Temperature: = Ambient Temperature +20°C (68°F)
• Shell: Hard Anodizing Electroplating Operated
• Lock Body: Eco-friendly Nickel Electroplating Operated
• Armature Plate: Eco-friendly Zinc Electroplating Operated
• Weight: 2.1kg
