Touch Monitor - ProLite TF1534MC-B7X - 15in - 1024x768 (XGA) - Black

Introduction

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.

Display

Display diagonal

38.1 cm (15")

Display resolution

1024 x 768 pixels

Panel type

TN

HD type

XGA

Display technology

LED

Native aspect ratio

4:3

Response time

8 ms

Display brightness

370 cd/m²

Contrast ratio (typical)

700:1

Pixel pitch

0.297 x 0.297 mm

Viewing angle, horizontal

170°

Viewing angle, vertical

170°

Display viewable area (HxV)

304 x 228 mm

Display diagonal (metric)

38 cm

Display number of colours

16.2 million colours

Design

Product colour

Black

Surface hardness

7H

International Protection (IP) code

IP65

Performance

Touch technology

Multi-touch

Touchscreen technology

Projected capacitive system

Touchscreen type

Multi-user

Number of simultaneous touchpoints

10

On Screen Display (OSD)

Y

Number of OSD languages

7

On Screen Display (OSD) languages

Simplified Chinese, German, English, Spanish, French, Italian, Japanese

Ports & interfaces

USB Touch port

Y

HDMI

Y

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

DisplayPorts quantity

1

Ergonomics

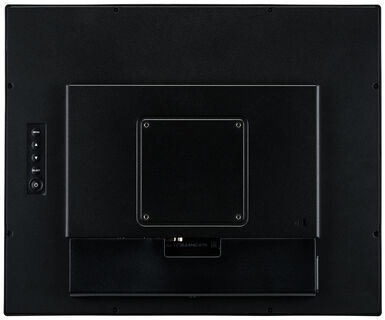

Panel mounting interface

100 x 100 mm

Wall mountable

Y

VESA mounting

Y

Power

Energy efficiency class (SDR)

E

Energy consumption (SDR) per 1000 hours

10 kWh

Power supply type

DC

Power consumption (typical)

8 W

Power consumption (standby)

1.5 W

Power consumption (off)

0.3 W

Energy efficiency scale

A to G

Weight & dimensions

Width (without stand)

33.8 cm

Depth (without stand)

4.45 cm

Height (without stand)

26.6 cm

Weight (without stand)

2.7 kg

Packaging data

Package width

435 mm

Package depth

165 mm

Package height

335 mm

Package weight

4 kg

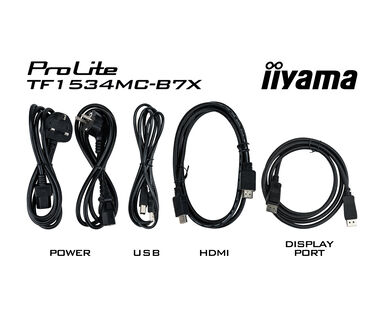

Packaging content

Cables included

AC, DisplayPort, HDMI, USB
