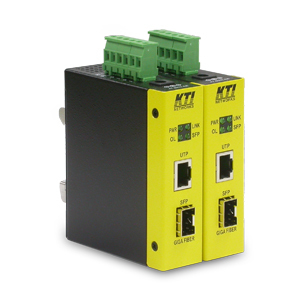

Industrial 1000base-t To 1000base-x Gigabit Media Converter (kcd-400-lx)

Introduction

The industrial KCD-400 media converter series provides industrial strength Gigabit Ethernet copper-to-fiber media conversion,allowing for 1000Base-T-to-1000Base-Xover multi-mode or optional single-mode fiber optical media. With the SFP (Mini-GBIC) connector design,the media converter not only supports existing variety of multimode and single mode fibers,but also preserves the flexibility to adapt to any change of your fiber network in the future.
Benefits :
- Plug and play design with no configuration setting
- Wide operating temperature range for temperature critical environment
- Support DIN-rail mounting and panel mounting
- Provide two power input types to meet more application needs
- Accept wide power input voltage range for application flexibility
- Industrial-rated Emission and Immunity performance
Key Features :
- Comply with IEEE 802.3ab 1000Base-T,802.3z 1000Base-SX/LX standard
- Provide direct media conversion for Gigabit copper and Gigabit fiber
- Support full wire speed conversion
- Support transparent conversion of any packet types with no packet length limitation
- Support auto-negotiation with link partners
- Provide link pass through between copper and fiber link
- Provide SFP on fiber port for mounting variety of fiber options
- Low power consumption
- Two power interface types:screw terminal block and DC Jack
- Supports DIN-rail mounting and optional screwed plane mounting

Network

Maximum data transfer rate

1000 Mbit/s

Converter input interface

1000Base-T

Converter output interface

1000Base-X

Networking standards

IEEE 802.3au,IEEE 802.3z

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

1000 Mbit/s

Auto MDI/MDI-X

Y

Auto-negotiation

Y

Duplex system

Full

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

1

Fiber optic connector

SFP

DC-in jack

Y

Performance

Maximum transfer distance

10000 m

Wavelength

1310 nm

Wavelength-division multiplexing (WDM)

Y

Fiber mode structure

Single-mode

Tx power (min)

-9.5 dBmW

Tx power (max)

-3 dBmW

Rx power (min)

-20 dBmW

Rx power (max)

-3 dBmW

Design

Internal

N

LED indicators

Link, Power, Status

Product colour

Black, Yellow

Certification

FCC Class B, CE/EMC Class B, EN60950 safety

Power

Input voltage

7 - 30 V

Output voltage

30 V

Management features

Plug and Play

Y

Weight & dimensions

Width

28 mm

Depth

82 mm

Height

95 mm

Weight

240 g

Operational conditions

Operating temperature (T-T)

-20 - 70 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Packaging content

AC adapter included

Y

User guide

Y

Manual

Y

Quick installation guide

Y
